PSV-35-12
Power: 35W
Input voltage: 180-264V AC
Output voltage: 12V DC
Current: 2.9A
Type: Constant Voltage
Dimming Control: Switching only
Insulation class: II
Working temperature: -20°C ~ +60°C
Dimensions: 148 x 40 x 32 mm
Ingress Protection: IP67 (Waterproof)
Warranty: 3 years
Application of the power supply:
- LED MR16 12V bulbs
- LED MR11 12V bulbs
- LED G4 12V bulbs
- RGB LED tapes
- Single colour LED tapes
Perfectly suited for lighting in the bathroom, kitchen, sauna due to hermetic construction.
POS waterproof PSV power supply 35W 2.9A IP67
A voltage power supply with the IP67 hermetic rating PSV-35-12 12V DC 2.9A 35W is a power supply device of the POS Power (Power Solution) brand which finds its use in LED lighting systems or industrial automation. The IP67 plastic housing ensures its use in conditions of high humidity. The power supply of this class is characterised by meeting the safety and emission standards and such protection as a short circuit, overload, overvoltage, which ensure safe work.
European AC input voltage range
Class of containment with IP67 degree
Cooled with free air circulation
Tested under full load
Security: Zwart / Overload / Overvoltage
Meets safety standards EN60950-1
Meets emission and resistance standards EN55022, EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11
Plastic housing
Warranty period of 36 months
POS waterproof PSV power supply 35W 2.9A IP67 specification
| Rated output voltage [V] | 12V |
| Rated output current [A] | 2.9A |
| Rated power | 35W |
| Current range | 0 ÷ 2.9A |
| Voltage tolerance | ± 3% |
| Ripples and noise | 120mVP-P |
| The range of input voltage values | 180 ÷ 264VAC; 254 ÷ 370VDC |
| Voltage frequency range | 47 ÷ 63 Hz |
| Efficiency | 82% |
| AC current | 0.37A / 230VAC |
| UWY stabilization depending on IWY changes | ± 2% |
| UWY stabilization depending on UWE changes | ± 1% |
| Overvoltage protection | Range: 17 ÷ 26VDC. Type: Cut off the output voltage. Automatic return to normal operation after the cause disappears. |
| Short-circuit protection | Type: Alternating start/stop output voltage. Automatic return to normal operation after the cause disappears. |
| Overload protection | Range: 110 ÷ 150% of the rated output power. Type: Alternating start/stop output voltage. Automatic return to normal operation after the cause disappears. |
| Safety standards | Compliance with EN60950-1 |
| EMC resistance standards | Compliance with EN55024; EN61000-4-2, -3, -4, -5, -6, -8, -11 |
| EMC emission standards | Compliance with EN55022 |
| Harmonic current | Compliance with EN61000-3-3; EN61000-3-2 |
| Insulation resistance | I / O: 100MΩ (500V / 25 ° C / 70% RH) |
| Insulation durability | I / O: 3kVAC |
| Resistance to vibrations | 10 ÷ 500Hz, 2G, 10min / period, periodically for 60min. along the X, Y, Z axes |
| Temperature and humidity of storage | -40 ° C ÷ 80 ° C, 10 ÷ 95% relative humidity (non-condensing) |
| Operating humidity | 20 ÷ 90% relative humidity (non-condensing) |
| Working temperature | -20 ° C ÷ 60 ° C (see load characteristics depending on the ambient temperature) |

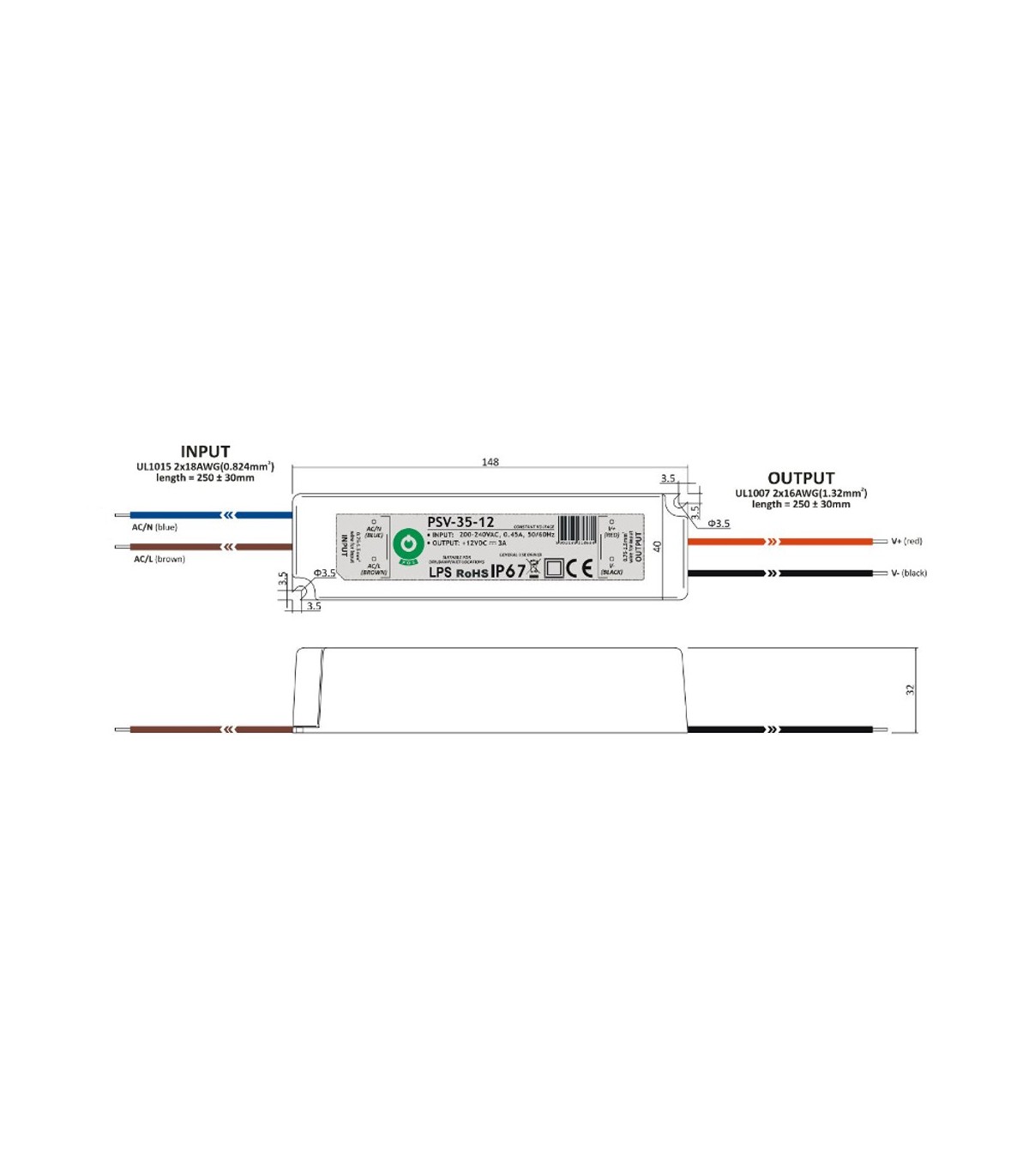

| Dimensions | 148 x 40 x 32mm (length x width x height) |
| Weight | 310g |
| Wholesale box | 56 units/box; weight and dimensions of the box: 18.5kg; 40 x 26 x 29 cm |
