● Unique skin-like design, delicate touch, as smooth as baby skin.
● Standard 86*86mm dimension design.
● Rated voltage of 250V~.
● Capable of withstanding a maximum current of 10A.
POLMARK E27 lamp holder white
POLMARK E27 lamp holder white
Our ES (Edison screw) lamp holder with push wire terminals is made of thermoplastic material which makes it very durable and lightweight. Push wire terminals offer a very quick way to assemble a lamp holder. It is recommended for the wires to be soldered or to have ferrules before inserting them into the lamp holder terminals. This Edison bulb holder has 10mm plastic threaded entry dome with an internal grub screw and push wire terminals and is ideal for use with our lighting flex cord. Easy to install, just plug and play. If you have any questions, just ask!
POLMARK E27 lamp holder white installation instruction
1. Use a flat screwdriver to take off the cap.
2. Firstly push the wires through the cap hole
3. Insert the wires into push wire terminals (one in each)
4. Clipped back the cap
It’s that simple! But remember once the connection is made the wires are not intended to be removed!
POLMARK E27 lamp holder white specification
Suitable for: | E27 threaded bulbs |
Current: | 4A |
Colour: | White |
Material: | Thermoplastic |
Weight: | 23g |
Storage temperature: | -20~60℃ |

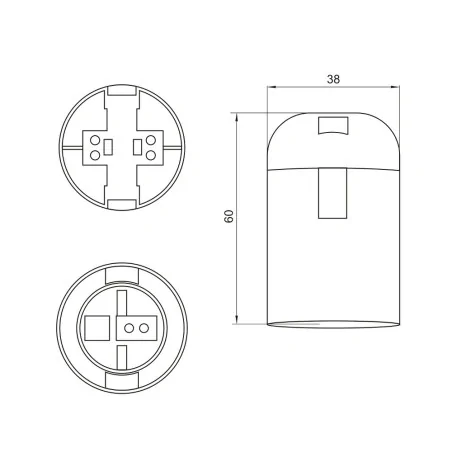

Dimensions: | L38mm x W38mm x H60mm |
Warranty: | 2 years |
POLMARK E27 lamp holder white package includes
1 x E27 lamp holder
Data sheet
Specific References
● Unique skin-like design, delicate touch, as smooth as baby skin.
● Standard 86*86mm dimension design.
● Rated voltage of 250V~.
● Capable of withstanding a maximum current of 10A.
Product Name: 4W Dual White LED Bulb (2.4G)
Model No.: FUT111
Input Voltage: AC100~240V 50/60Hz
Power: 4W
PF: >0.5
CRI: >80
Colour Temperature: 2700K~6500K
Luminous Flux: 360LM
Luminous Efficiency: 100LM/W
Beam Angle: 220°
RF: 2.4GHz
Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Base Type: E27
• 2.4GHz RF remote controllable
• Brightness and colour temperature adjustable
• Control distance: 30m
Product Name: 4W RGB+CCT LED Bulb (2.4G)
Model No.: FUT110
Input Voltage: AC100~240V 50/60Hz
Power: 4W
PF: >0.5
CRI: >80
Colour Temperature: 2700K~6500K
Luminous Flux: 340LM
Luminous Efficiency: 95LM/W
Beam Angle: 220°
RF: 2.4GHz
Control Distance: 30m
IP Rate: –
Working Temperature: -10~40°C
Base Type: E27
• 2.4GHz RF remote controllable
• 16 Millions of colours to choose
• Brightness and colour temperature adjustable
• Control distance: 30m
Product Name: 12W RGB+CCT LED Bulb (Zigbee 3.0 + 2.4G)
Model No.: FUT105ZR
Input Voltage: 100-240V~ 50/60Hz
Power: 12W
PF: >0.5
CRI: >80
Colour Temperature: 2700K~6500K
Luminous Flux: 1100LM
Luminous Efficiency: 90LM/W
Beam Angle: 220°
Communication Protocol: Zigbee 3.0 + 2.4GHz
Control Distance: Zigbee: 50m (open area)
2.4G RF Remote: 30m
Working Temperature: -10~40°C
Wireless Technology: Zigbee 802.15.4
Wireless Frequency: 2.400-2.480GHz
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 50m (open area)
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
Product Name: 6W RGB+CCT LED Downlight (2.4GHz)
Model No.: FUT068-B
Input Voltage: AC100~240V 50/60Hz
Power: 6W
PF: >0.5
CRI: >80
Colour Temperature: 2700K~6500K
Luminous Flux: 600LM
Luminous Efficiency: 85LM/W
Beam Angle: 120°
Communication Protocol: 2.4GHz RF
Control Distance: 30m
IP Rate: IP20
Working Temperature: -20~60°C
Hole Size: Φ90~95mm
Material: Aluminium + PC Cover
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Saturation adjustable
• Remote Control Distance 30m
• Signal transmitting & Modes synchronization
Product Name: 4W GU10 RGB+CCT LED Spotlight (Zigbee 3.0 + 2.4G)
Model No.: FUT103ZR
Power: 4W
Voltage: 100-240V~ 50/60Hz
Colour Temp.: 2700K~6500K
Luminous Flux: 320LM
Luminous Efficiency: 80LM/W
CRI: >80
PF: >0.55
Beam Angle: 25°
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Zigbee Control Distance: 50m (open area)
2.4G RF Remote Control Distance: 30m
Working Temp.: -10~40℃
• Product follows Zigbee 3.0 standard protocol
• Zigbee Control distance: 50m (open area)
• Compatible with Mi-Light/MiBoxer 2.4GHz series remote
• 2.4G RF Remote Control Distance: 30m
• 16 Million colours to choose
• Brightness and colour temperature adjustable
Product Name: AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)
Model No.: TRI-C1ZR
Input Voltage: 100-240V~ 50/60Hz
Output Voltage: 100-240V~
Output Current: Max 1.36A
Output Power: 150W @110V; 300W @220V
Dim method: Zigbee 3.0 + 2.4G + Push
Working Temperature: -10~40℃
Zigbee Control Distance: 100m (open area)
2.4G RF Control Distance: 30m
• Support control of traditional incandescent lamps, halogen lamps, Triac dimmable LED lamps
• Support set up min brightness
• Brightness adjustable
• Product follows ZigBee 3.0 standard protocol
• Zigbee Control distance: 100m (open area)
• Support Amazon Alexa and Google Home control
• Support 2.4G remote control, control distance 30m
Product Name: 6W RGB+CCT LED Downlight (Zigbee 3.0)
Model No.: FUT068Z
Voltage: 100-240V~ 50/60Hz
Power: 6W
PF: >0.5
Working Temperature: -10~40°C
Colour Temperature: 2700K~6500K
CRI: >80
Luminous Flux: 600LM
Luminous Efficiency: 100LM/W
Lifespan: 50000 hours
Beam Angle: 120°
HoIe Size: ø90~95mm
Wireless Technology: Zigbee 802.15.4
Zigbee Wireless Frequency: 2.400-2.480GHz
Control Distance: 100m (open area)
Material: Aluminium
• Product follows Zigbee 3.0 standard protocol
• 16 Millions colours to choose
• Brightness and colour temperature adjustable
• Control distance: 100m (open area)
