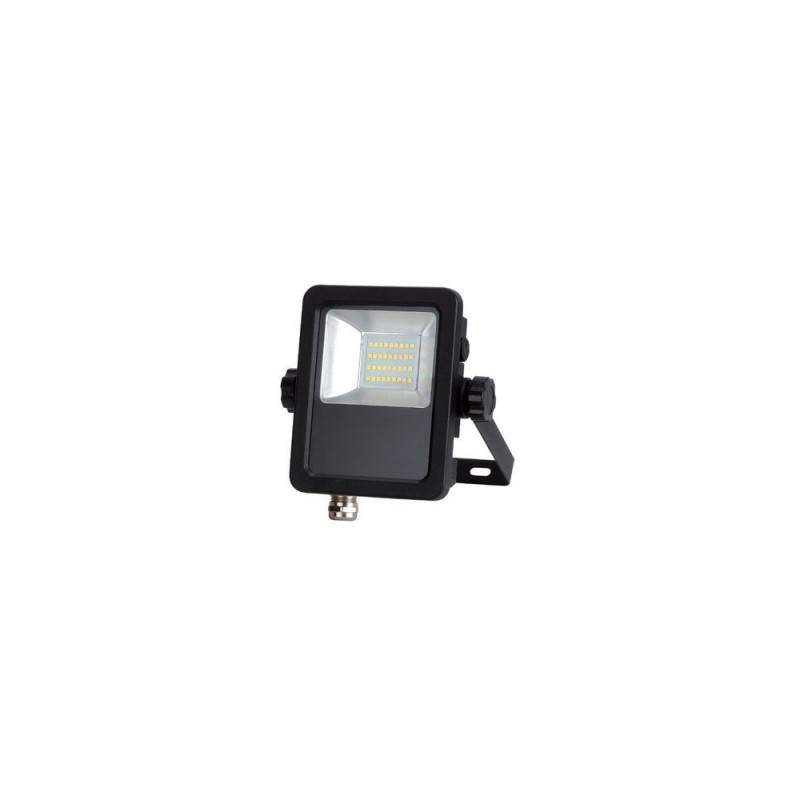

PROJECT floodlights quality outdoor light for years
The PROJECT floodlights have been designed for all these places where the highest quality of light is needed. The LUMILEDS LED diodes guarantee the high lighting parameters of these LED floodlights. The manufacturer's warranty on these products is 5 years. The moisture management system prevents condensation inside and the effect of a dewy shade.
The mounting bracket allows an easy adjustment. The product has undergone testing at the LED line® Research and Measurement Center, on the basis of which reliable photometric files have been prepared.
These professional, waterproof LED industrial floodlights have been designed to illuminate buildings and industrial halls.
The LED line® industrial floodlights use SMD2835 diodes and the colour temperature is 4000K. These products achieve 110lm/W luminous efficacy. The luminous flux generated by the 16W is 1760lm, 3300lm by 30W, 5500lm by 50W, 11000lm by 100W and 22000lm by 200W. The lighting beam angle is 120°. The applied power supply system guarantees a wide input voltage range of 100-240V AC, which enables reliable operation of the product even in the event of voltage fluctuations in the electrical network. This solution significantly reduces the risk of device failure, which ensures its dust and water resistance. The product is 5J impact resistant - it has IK06 mechanical resistance class. The product's resistance to damage is guaranteed by the material of the lampshade - tempered glass.
Some of the key features of the floodlights are as per below. The rest of the product specification you can find in the specification tables below.
Colour rendering index Ra≥80. The life of each LED is over 100000h.
The power factor is PF>0.9. The number of ON/OFF switching cycles is 50,000.
The material from which the product is made is: Cast aluminium alloy. The product's energy class is A+.
The class of protection against electric shock is: I
The product works in the temperature range -20/+45°C. For indoor and outdoor applications.
16W LED line® PROJECT floodlights 110lm per Watt neutral white IP65 specification
| Rated voltage |
100-240V AC |
| Rated power |
16W |
| Rated luminous flux |
1760 lumens |
| Colour temperature |
4000K neutral white |
| Energy consumption |
16 kWh/1000h |
| Colour rendering index CRI |
RA ≥80 |
| Power factor |
PF≥0.5 |
| Dimmable |
no |
| Nominal beam angle |
120° |
| Source of light |
SMD LEDs |
| Mercury content in the lamp |
lack |
| IP rating |
IP65 |
| LED quantity |
36 |
| Housing |
aluminium |
| Lumen maintenance factor (LLMF) |
0,7 |
| Energy efficiency class |
A+ |
| IK rating |
IK06 |
| Number of on/off cycles |
≥50,000 |
| Lifespan |
≥100,000h |
| Dimensions [mm] |
L194 x H149 x W55 |
| LED diode type |
SMD 2835 |
| Declarations/Certificates |
CE, RoHS |
| Wholesale packaging |
10 units |
| Manufacturer's warranty |
60 months (5 years) |
30W LED line® PROJECT floodlights 110lm per Watt neutral white IP65 specification
| Rated voltage |
100-240V AC |
| Rated power |
30W |
| Rated luminous flux |
3300 lumens |
| Colour temperature |
4000K neutral white |
| Energy consumption |
30 kWh/1000h |
| Colour rendering index CRI |
RA ≥80 |
| Power factor |
PF≥0.9 |
| Dimmable |
no |
| Nominal beam angle |
120° |
| Source of light |
SMD LEDs |
| Mercury content in the lamp |
lack |
| IP rating |
IP65 |
| LED quantity |
72 |
| Housing |
aluminium |
| Lumen maintenance factor (LLMF) |
0,7 |
| Energy efficiency class |
A+ |
| IK rating |
IK06 |
| Number of on/off cycles |
≥50,000 |
| Lifespan |
≥100,000h |
| Dimensions [mm] |
L183 x H240 x W67 |
| LED diode type |
SMD 2835 |
| Declarations/Certificates |
CE, RoHS |
| Wholesale packaging |
6 units |
| Manufacturer's warranty |
60 months (5 years) |
50W LED line® PROJECT floodlights 110lm per Watt neutral white IP65 specification
| Rated voltage |
100-240V AC |
| Rated power |
50W |
| Rated luminous flux |
5500 lumens |
| Colour temperature |
4000K neutral white |
| Energy consumption |
50 kWh/1000h |
| Colour rendering index CRI |
RA ≥80 |
| Power factor |
PF≥0.9 |
| Dimmable |
no |
| Nominal beam angle |
120° |
| Source of light |
SMD LEDs |
| Mercury content in the lamp |
lack |
| IP rating |
IP65 |
| LED quantity |
100 |
| Housing |
aluminium |
| Lumen maintenance factor (LLMF) |
0,7 |
| Energy efficiency class |
A+ |
| IK rating |
IK06 |
| Number of on/off cycles |
≥50,000 |
| Lifespan |
≥100,000h |
| Dimensions [mm] |
L235 x H301 x W70 |
| LED diode type |
SMD 2835 |
| Declarations/Certificates |
CE, RoHS |
| Wholesale packaging |
4 units |
| Manufacturer's warranty |
60 months (5 years) |
100W LED line® PROJECT floodlights 110lm per Watt neutral white IP65 specification
| Rated voltage |
100-240V AC |
| Rated power |
100W |
| Rated luminous flux |
11000 lumens |
| Colour temperature |
4000K neutral white |
| Energy consumption |
100 kWh/1000h |
| Colour rendering index CRI |
RA ≥80 |
| Power factor |
PF≥0.9 |
| Dimmable |
no |
| Nominal beam angle |
120° |
| Source of light |
SMD LEDs |
| Mercury content in the lamp |
lack |
| IP rating |
IP65 |
| LED quantity |
210 |
| Housing |
aluminium |
| Lumen maintenance factor (LLMF) |
0,7 |
| Energy efficiency class |
A+ |
| IK rating |
IK06 |
| Number of on/off cycles |
≥50,000 |
| Lifespan |
≥100,000h |
| Dimensions [mm] |
L312 x H393 x W84 |
| LED diode type |
SMD 2835 |
| Declarations/Certificates |
CE, RoHS |
| Wholesale packaging |
1 unit |
| Manufacturer's warranty |
60 months (5 years) |
200W LED line® PROJECT floodlights 110lm per Watt neutral white IP65 specification
| Rated voltage |
100-240V AC |
| Rated power |
200W |
| Rated luminous flux |
22000 lumens |
| Colour temperature |
4000K neutral white |
| Energy consumption |
200 kWh/1000h |
| Colour rendering index CRI |
RA ≥80 |
| Power factor |
PF≥0.9 |
| Dimmable |
no |
| Nominal beam angle |
120° |
| Source of light |
SMD LEDs |
| Mercury content in the lamp |
lack |
| IP rating |
IP65 |
| LED quantity |
420 |
| Housing |
aluminium |
| Lumen maintenance factor (LLMF) |
0,7 |
| Energy efficiency class |
A+ |
| IK rating |
IK06 |
| Number of on/off cycles |
≥50,000 |
| Lifespan |
≥100,000h |
| Dimensions [mm] |
L419 x H566 x W113 |
| LED diode type |
SMD 2835 |
| Declarations/Certificates |
CE, RoHS |
| Wholesale packaging |
1 unit |
| Manufacturer's warranty |
60 months (5 years) |
