Type: LED strip to LED strip wire connector
Designed for: 12mm RGB+CCT
Voltage: 12-24V
Type of connection: 6-pin
Wire length: 150mm
Country of manufacture: China
IP rating: IP20
Warranty: 2 years
You may also be interested in the below RGB+CCT connectors
12mm RGB+CCT T type clip connector
12mm RGB+CCT L type connector clip

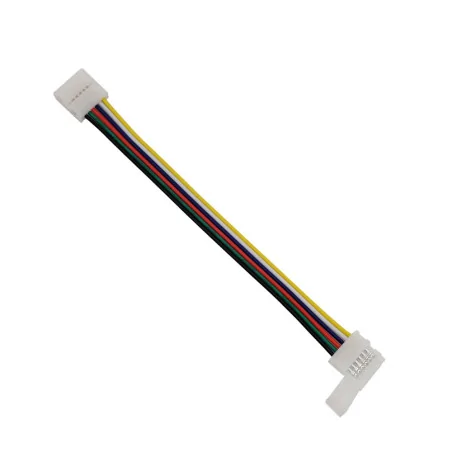

12mm RGB+CCT 6 pin PCB to PCB wire connector
Our 12mm RGB+CCT 6 pin PCB to PCB wire connector is an easy way to connect two pieces of RGBCCT LED strip. There is no need for soldering just open the cover and put the LED strip in "plug and play". Forget about throwing away offcuts! With our connector, you can use every little bit of your LED strip. Wires are soft and can be bent easily to adapt to your needs.
Installation Instructions:
• Ensure your section of LED light strip has six contacts (R, G, B, CW, WW and +) and the contacts are clean
• Open the white clasp of the connector
• Insert the LED light strip into the clasp, under the prongs – making sure to match the + on the strip to the + on the clasp (black wire)
• Close the clasp
• Gently pull on the LED light strip to confirm you’ve made a solid connection
• Your connection is made!
Please check other LED strip connectors as well as other products available at our shop. In case you have any questions just contact us.
12mm RGB+CCT 6 pin connector specification
LED strip handling: | RGB+CCT 12mm |
Material: | Plastic |
Dimensions(mm): | L160 x H5 x W15 |
IP rating: | IP20 |
Type: | RGB+CCT 5050 |
Warranty: | 2 year |
Working temperature: | 0-40°C |
Storage temperature: | -20 ~ 60°C |
Wire length: | 150mm |
Data sheet
- Light Colour
- RGB+CCT
- Rated Voltage
- 5V
12V
24V
- Ingress Protection
- IP20
- Warranty
- 2 years
- Light Source
- LED
- Pack Quantity
- 1
- Packaging
- N/A
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Colour
- White
- Current Type
- DC
- Class
- LED strip connector
- Unit Type
- Unit
- LED Strip Width
- 12mm
- Installation Area
- Indoor
- Control Style
- Remote Control
- Mounting
- Free Standing
- Wholesale Box Quantity
- 100
