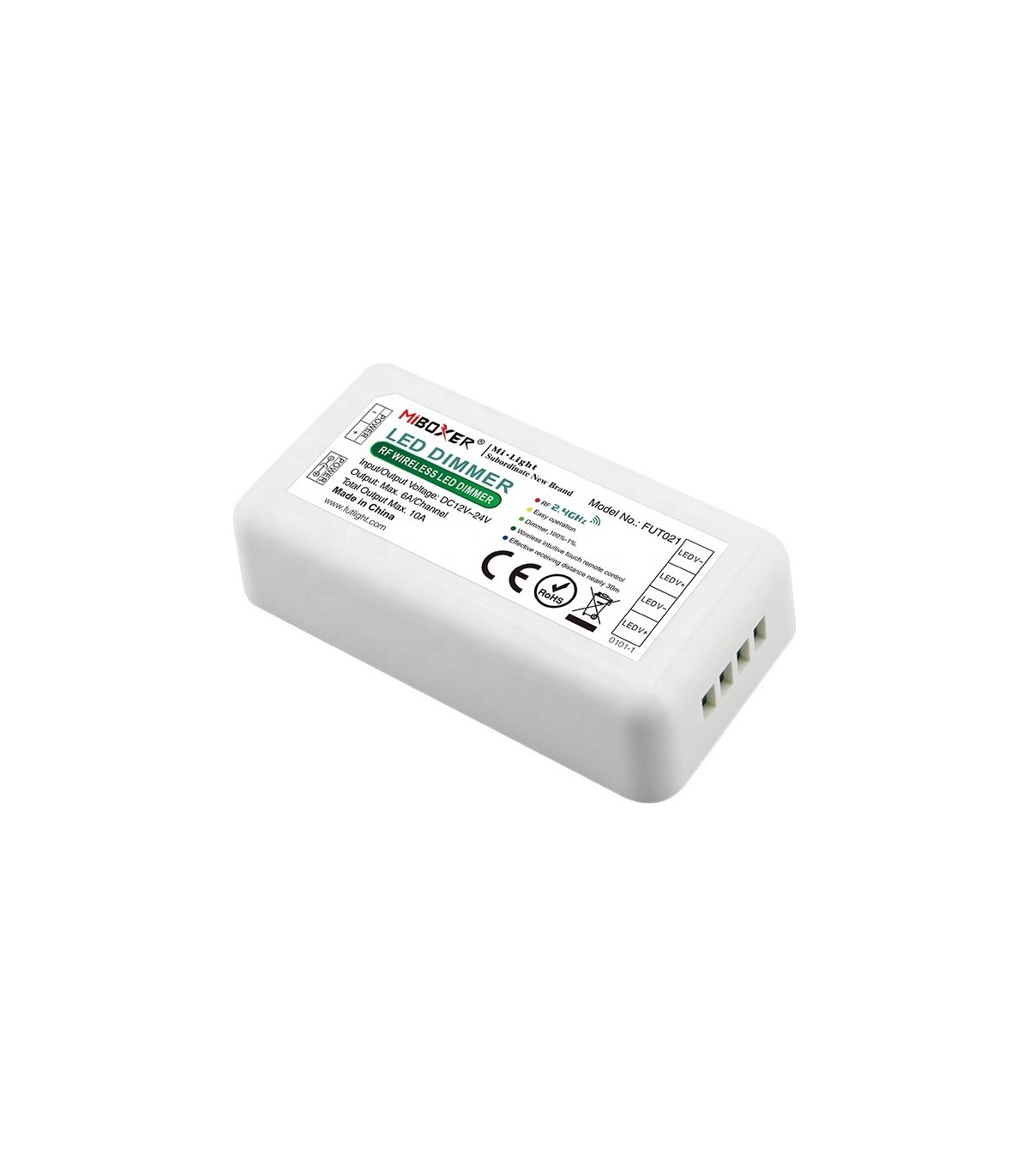

Product Name: 2.4GHz LED Strip Dimmer
Model No.: FUT021
Voltage: DC12V-24V
Output: Max. 6A/Channel
Total output Max.10A
Control Distance: 30m
Controller Size: 85*45*22.5mm
Remote Size: 114*55.5*21.5mm
• 2.4G RF Remote controllable
• Brightness controllable
• Control distance: 30m
One-zone LED remote control from the Mi-Light series, enabling the control of connected LED lighting with the use of a radio receiver. The remote control allows you to change the intensity of brightness using touch buttons. Just use your finger to touch the colour ring and you can adjust the brightness easily from 100% to 1%.
MONO - single colour LED strip
Dimming and brightening of connected LED lighting
The possibility of switching on/off LED lighting
3-step brightness (low, medium, high)
One zone to use
Battery-powered (2x1.5V AAA)
A diode indicating the operation of the device
Buttons with factory-set temperature parameters
Touch buttons
Radio communication with receivers (2.4GHz)
Cooperation with a Wi-Fi controller (additional option)
Easy installation
Small size
The maximum current load capacity is 10A
24 months warranty
Basic communication with the receiver takes place by means of radio technology. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. Obtaining an optional control by connecting to a Wi-Fi network, which enables the control of lighting with the help of mobile devices (e.g. smartphone or tablet), is available only after using the appropriate Wi-Fi module. Available cooperating devices can be found in the compatible MiBoxer products tab.
Receiver power supply - connectors for easy assembly
Receiving devices are supplied with a DC voltage of 12VDC or 24VDC, which must be supplied to the input of the device. In order to facilitate assembly, the construction of receivers consists of screw terminals, both at the entrance and at the exit, which makes it easier to bring the wires to the device. In addition, if you have a power supply that has a DC plug at the output, you can directly plug into the DC jack located next to the input terminals of the receiver. The cable connection is stable and quick to assemble.
| Application | For installations of single-colour temperature LED strips |
| Number of supported zones/channels | 1 |
| The way of control | Radio |
| The way of control | Touch buttons |
| The range of radio communication | up to 30 meters in the open area |
| Powering the remote control | 2 x 1.5V AAA batteries (not included) |
| Signal modulation | GFSK |
| Transmission type | Two-way |
| Frequency of transmission | 2.4GHz |
| Power consumption in operating mode | 6dBm |
| Power consumption in standby mode | 20uA |
| Touch buttons | Yes |
| Colour | White |
| The degree of protection | IP20 |
| Remote dimensions |
55.5mm x 114mm x 21.5mm |
| Receiver dimensions | 45mm x 85mm x 22.5mm |
| Declarations | RoHS, CE, UKCA |
| Warranty | 2 years |
1 x remote controller
1 x single-colour LED strip receiver
1 x double-sided sticky pad
1 x manuals
Data sheet
