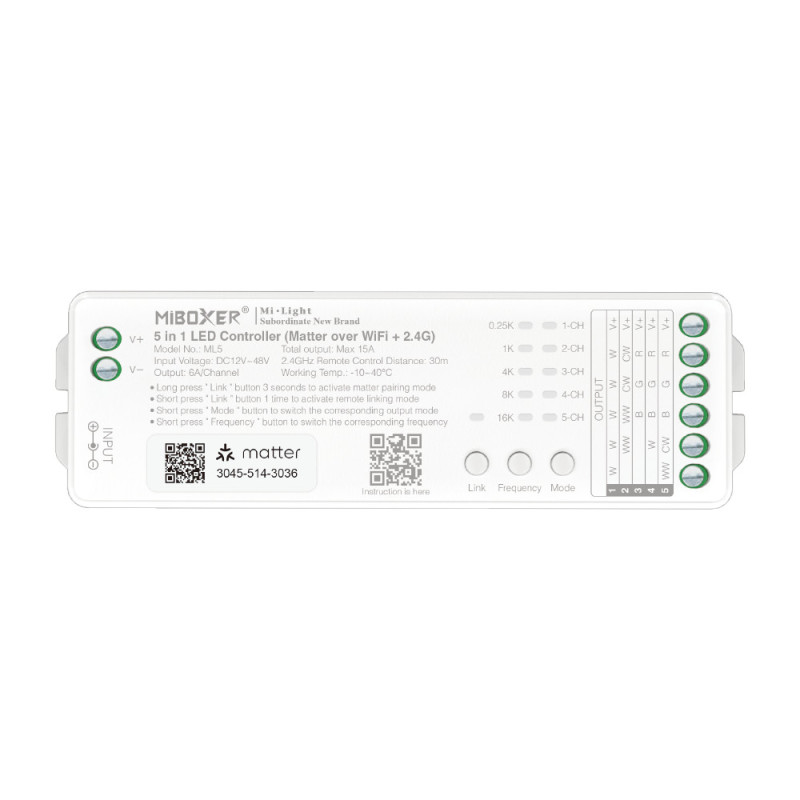

MiBoxer 5 in 1 Controller (Matter Over WiFi+2.4GHz) ML5

P2585
Mi-Light

Product Name: 5 in 1 Controller (Matter Over WiFi+2.4GHz)
Model No.: ML5
Input Voltage: DC12-48V
Output Current: 6A/Single channel
Total Output: Max 15A
Protocol: WiFi+2.4G RF
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Control Distance: RF: 30m
IP Rate: IP20
Working Temperature: -10~40°C
• Simple QR code pairing for easy setup
• Voice control with Siri, Google Assistant, and Alexa
• Supports Apple Home, Alexa, Google Home, SmartThings, and Tuya
• 18 dynamic modes and forecast scene settings
• Auto-transmitting and synchronisation for extended range

£35.40
VAT included
£29.50 VAT excluded
Quantity

Place your order by 10:00 AM to ensure same-day dispatch from our Coventry warehouse. Ordering from other warehouses does not affect your delivery time. Enjoy a faster, hassle-free experience!
Ask about the product on WhatsApp
Close
  Security policy

Your data is encrypted and GDPR compliant for safe, secure shopping.

  Delivery policy

Fast, reliable shipping with tracking. Orders dispatched quickly and securely.

  Return policy

Hassle-free 30-day returns. Contact us for a quick and simple process.

Description

Ultimate Smart Lighting Control with MiBoxer ML5

ML5 matter controller size

Discover the MiBoxer ML5 5-in-1 LED Controller (Matter Over WiFi+2.4GHz), your ultimate solution for smart lighting control in any home or commercial space. Certified for the Matter protocol, this innovative controller integrates seamlessly with leading smart home platforms, including Apple HomeKit, Amazon Alexa, Google Home, Samsung SmartThings, and Tuya Smart. Using WiFi (IEEE 802.11b/g/n 2.4GHz) and 2.4G RF connectivity, it eliminates the need for additional gateways, allowing you to manage your lighting remotely via the MiBoxer or Tuya Smart app. Setup is effortless with QR code pairing, and voice control compatibility with Siri, Google Assistant, and Alexa ensures hands-free convenience.

ML5 Support multi APP platform ( no need 2.4G gateway)Support third party voice control
Support multi APP platform ( no need 2.4G gateway)Support third party voice control

Designed for versatility, the ML5 supports single colour, dual white, RGB, RGBW, and RGB+CCT LED strips, offering endless possibilities for customisation. With a maximum output of 15A (6A per channel) and a flexible DC12-48V input range, it delivers precise control over brightness, colour temperature, and saturation across 16 million colours. Enjoy smooth, flicker-free dimming with 4096 levels, 18 dynamic modes (accessible via remote) such as jumping and fading, and programmable forecast scenes to tailor lighting to your mood or schedule. This makes the ML5 ideal for creating vibrant atmospheres in homes, offices, or commercial environments.

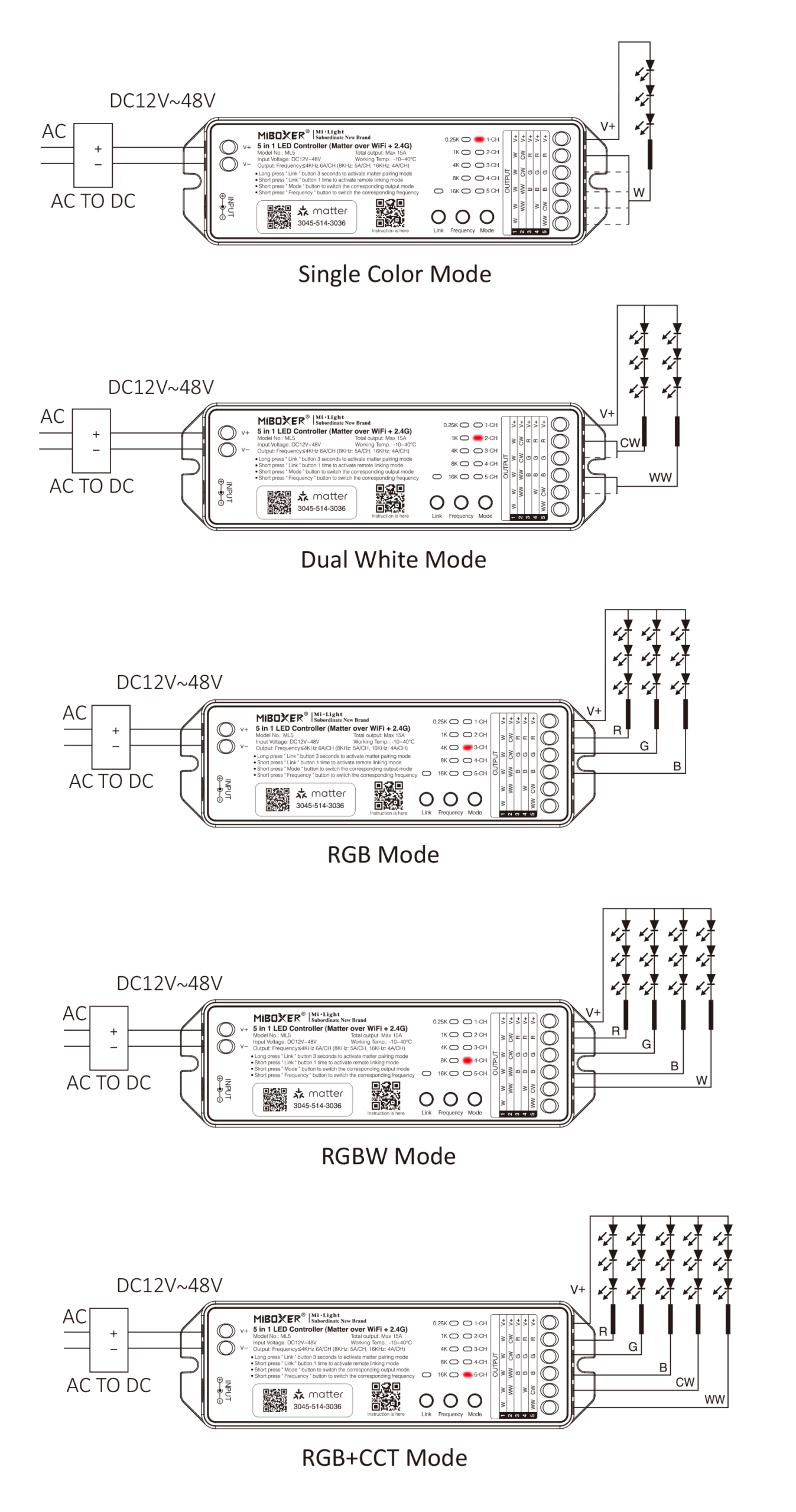

ML5 matter controller connection diagram

Performance is unmatched, with a 30-metre RF control range and support for up to 12 MiBoxer 2.4G remote controls. The auto-transmitting and auto-synchronisation features enable signal extension and seamless coordination of dynamic modes across multiple devices, perfect for large-scale lighting installations. A Do-Not-Disturb (DND) mode conserves power in areas with unstable electricity, while the compact 124*38*23mm design and IP20 rating ensure easy installation and durability in temperatures from -10~40°C. Certified to CE, EMC, RED, and LVD standards (e.g., ETSI EN 300 440, EN 61347-1), the ML5 guarantees safety and reliability.

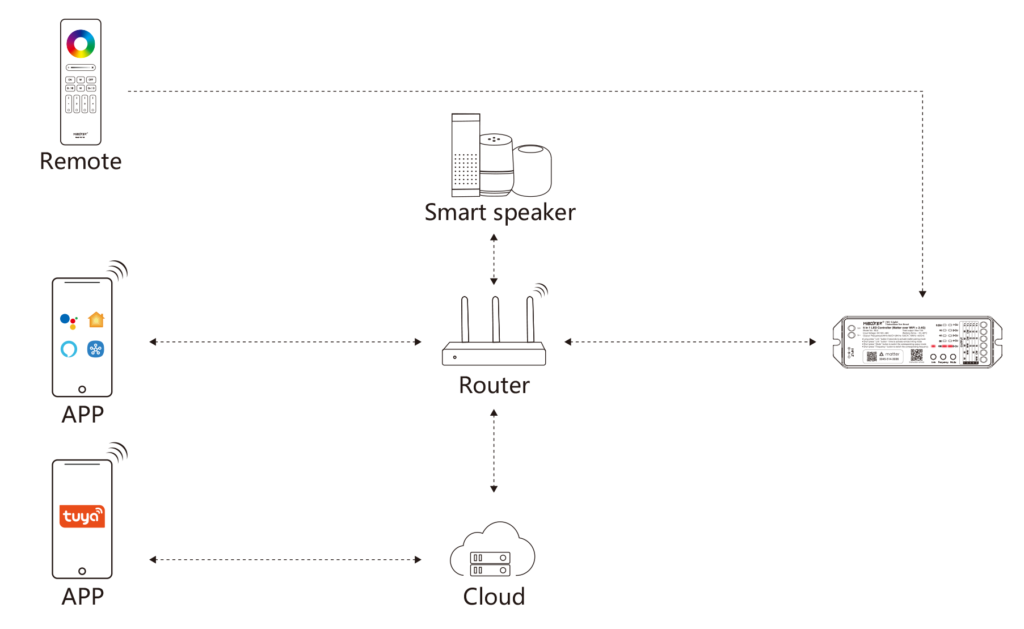

ML5 matter controller control

Transform your space with the MiBoxer ML5 5-in-1 Controller, blending cutting-edge technology with user-friendly features for energy-efficient and customisable lighting. Shop now at Future House Store to experience the future of smart lighting solutions.

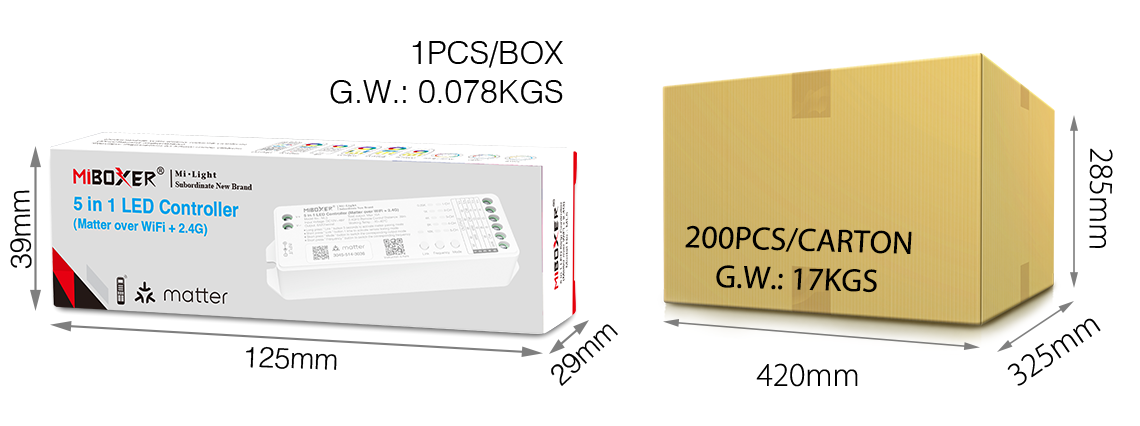

ML5 MiBoxer matter controller packaging shipping

Product Details
P2585
New

Specific References

EAN13
6970602186485
MPN
ML5
