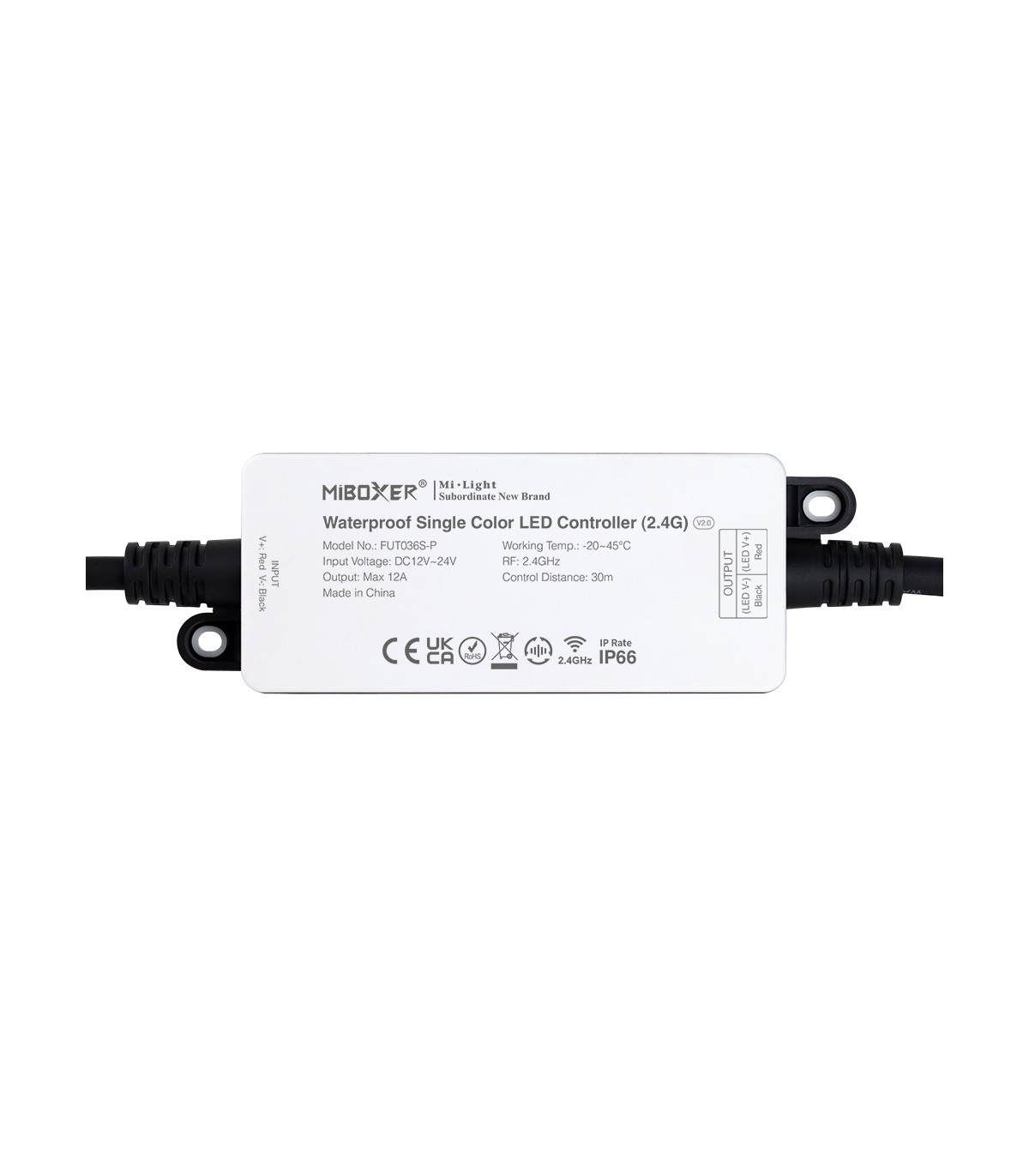

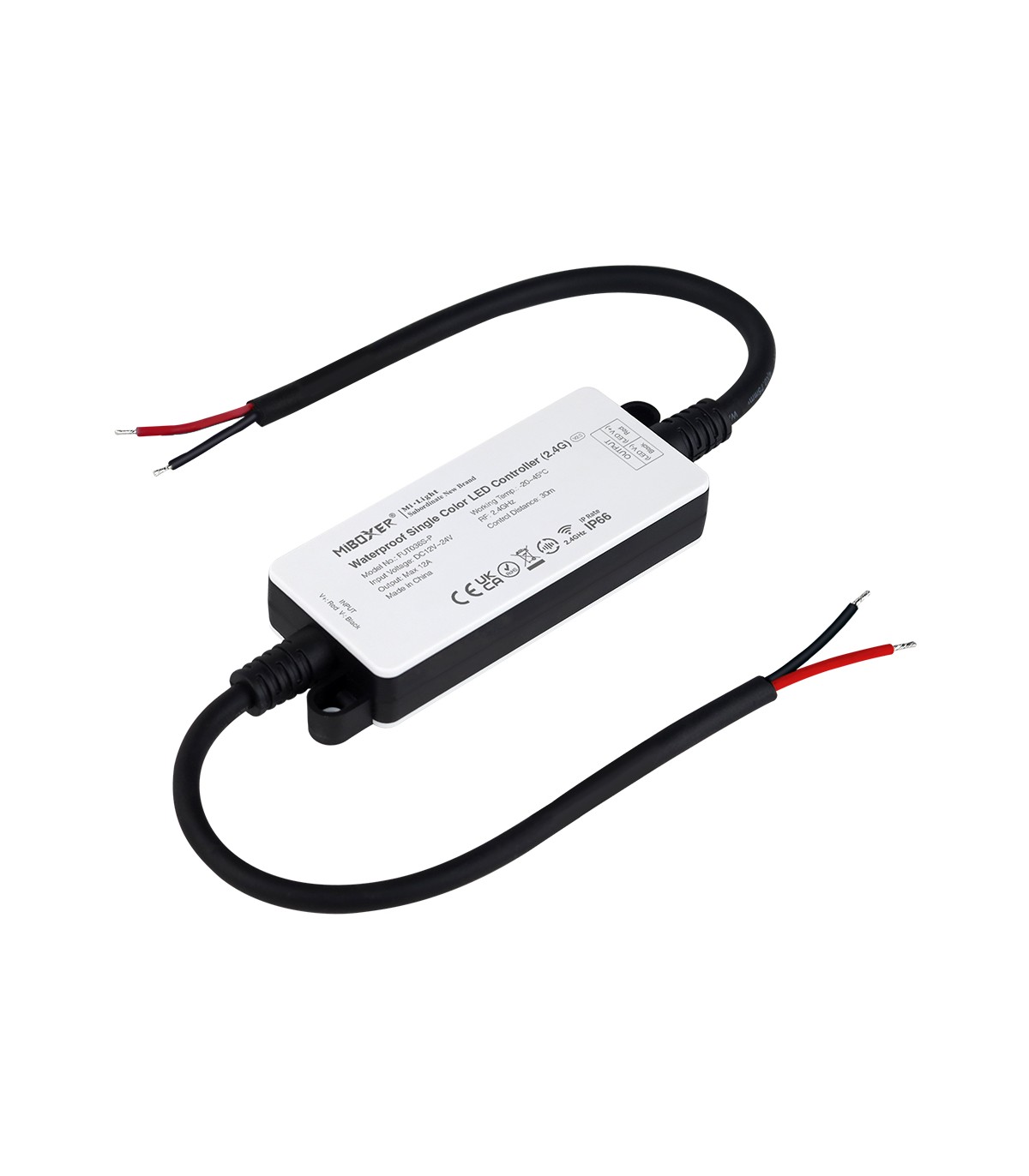

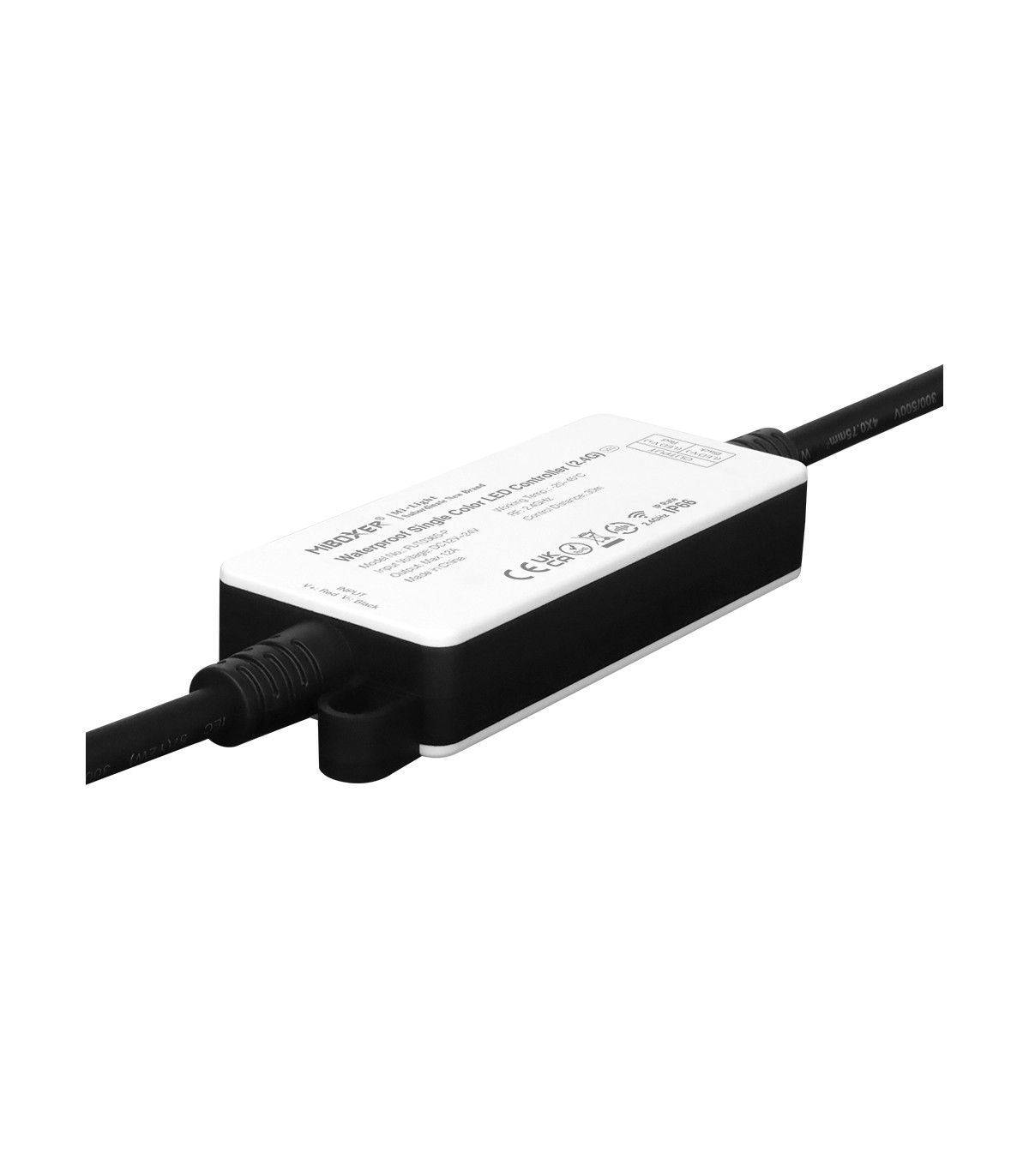

MiBoxer waterproof single colour LED controller (2.4G) FUT036S-P
Single colour MONO LED receiver 12-24V 12A - IP66 - FUT036S-P is a small device used to control monochrome LED lighting. The device has been designed in a way that allows you to change the brightness of monochrome LED strips by using an appropriate LED dimmer. The communication of such a device is carried out by radio, it is through it that the receiver communicates with the transmitting device. Access to the receiver can also be obtained via a WiFi network by using an appropriate module. The key feature of the receiver is its hermetic IP66 housing. This receiver works with devices of the MiBoxer series.
The Waterproof series focuses primarily on safety. Relative to the standard series, the receiver has a hermetically sealed IP66 casing, which allows the receiver to be used outdoors. Recommended especially for outdoor lighting (e.g. LED garden lighting or various types of gazebos)
Application for installation:
MONO - single colour LED strips
MiBoxer receiver FUT036S-P features
Application for monochrome LED strips
Wireless communication with a dimming device
Brightness adjustment
Maximum current load 12A
Frequency selection in two ranges - 500Hz/8kHz
Input/output voltage range 12-24V DC
Built-in diode signalling the operation of the receiver
Hermetic casing with the degree of IP66
Cooperation with Wi-Fi network (additional option)
Possibility to use several receivers for one zone
Possibility to control via multiple remotes
Very small size
The connectivity of the MiBoxer series receivers is characterized by wireless communication via radio with a remote control or wall panel control device. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. In addition, devices from this series synchronize the signal with each other and transmit it to subsequent receivers, thus ensuring a stable connection above the declared value.
MiBoxer waterproof single colour LED controller (2.4G) FUT036S-P specification
| Application |
For MONO (single colour) installation |
| Maximum output current |
12A |
| Input/Output Voltage |
12V DC or 24V DC |
| Number of outputs |
1 channel (V+/V-) - common anode |
| Controlling method |
Radio |
| Controlling range |
up to 30 meters in an open area |
| Model number |
FUT036S-P |
| Control frequency |
2.4GHz |
| PWM frequency |
500Hz / 8kHz (selectable) |
| Working temperature |
-10 – 40℃ |
| Compatible devices |
please see the compatible MiBoxer products tab |
| Return to previous settings after powering off |
Yes |
| Input connector (power supply) |
2-core cable (25cm long) |
| Output connector (signal) |
2-core cable (25cm long) |
| Ingress Protection rating |
IP66 |
| Dimensions[mm] |
L150 x W46.5 x H20 |
| Certification |
RoHS, CE, UKCA |
| Warranty |
2 years |
MiBoxer waterproof single colour LED controller (2.4G) FUT036S-P package includes
1 x Waterproof MONO (single colour) LED strip controller
1 x User manual (English)
