Product Name: DMX512 Master (RGBW)
Model No.: X4
Input Voltage: AC100~240V 50/60Hz
Output: DMX512 + 2.4GHz Wireless
RF Transmitting Power: 6dBm
RF Control Distance: 30m
Working Temp.: -20~45°C
• Accord with standard DMX512 protocol
• 4 zones controlled separately
• Controlled by 2.4G RF remote controller
• Used as a 2.4G RF remote control
• Smartphone controllable (need 2.4G gateway)

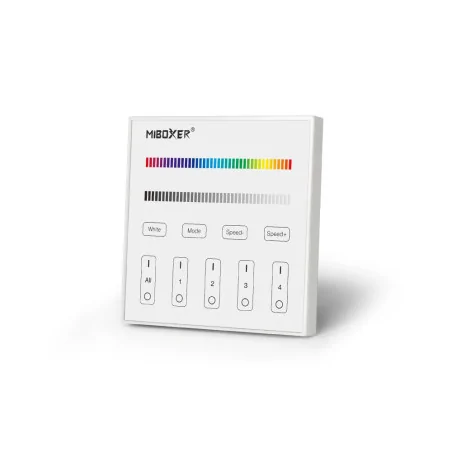

MiBoxer DMX512 master (RGBW) X4
The LED wall panel - RGB+W - 4 zones - DMX512 - X4, is a wired wall panel that allows you to manage brightness with the possibility of controlling a given RGB colour for devices adapted to multi-colour installations with additional white colour using a signal based on the DMX512 communication control system. The wall panel is powered directly from the 230VAC network. Each of the available zones has fixed communication addresses for individual R/G/B/W channels, which are included in the user manual. It is mounted to a standard fi60 box.
Application for installation:
RGB - with variable colour temperature
DMX - based on the DMX512 system
Features of the MiBoxer wall panel - X4
Four zones to use
Power supply directly from the 230VAC network
Wired connection using DMX512 signal
Works with the standard DMX512, DMX512 (1990), DMX512-A, RDM v.1.0
Can be synchronized with the 2.4Ghz radio series
Glass wall panel
Expansion of the installation at any possible time
Delicate LED backlight showing the operation of the device
Mounting to the fi60 box
MiBoxer DMX512 master (RGBW) X4 specification
Application | RGB+W |
Input/output voltage | 230V |
Device type | Wall panel |
Lighting control system | DMX512 |
Lighting control method | Wired and additionally by radio (DMX512/2.4Ghz) |
Number of zones/channels supported | 4 zones |
Communication type | One-way |
Glass panel | Yes |
The behaviour after the loss of 230V supply voltage returns | Return to saved settings |
Return to the previous settings when switching off the transmitter | Yes |
Model number | X4 |
Working temperature | -20 – 60℃ |
Input connector (power supply) | Screw terminals for bare wires |
Output connector (terminal) | Screw terminals for bare wires |
Colour | White |
Product compatibility | See the compatible MiBoxer products tab |
Ingress Protection | IP20 |
Dimensions[mm] | L86 x W86 x H17 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer DMX512 master (RGBW) X4 package includes
1 x DMX512 master X4 in a retail packaging
1 x User Manual (English)
Data sheet
- Supported Zones
- 4-zones
- Light Colour
- RGBW
- Rated Voltage
- 230V
- Model Number
- X4
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Communication Range
- 30m
- Operating Temperature
- -20 – 60℃
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Country/Region Of Manufacture
- China
- Colour
- White
- Control Frequency
- 2.4GHz
- Current Type
- AC
- Installation Area
- Indoor
- Item Length
- 86mm
- Item Width
- 86mm
- Item Weight
- 0.19kg
- Item Height
- 26mm
- Mounting
- Wall Mounted
- Wholesale Box Quantity
- 100
