Product Name: 2.4GHz 4 Zone RF CCT Remote Control
Model No.: FUT007
Voltage: 3V (section 2 batteries)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 110*53*21.5mm
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Brightness and colour temperature adjustable
Mi-Light 4-zone CCT remote controller FUT007
This Mi-Light four-zone LED radio remote controller can be used for single colour or CCT (multi-white) lighting. The transmitter allows individual control of each zone using the radio receiver. The multifunctional remote allows you to change the brightness and colour temperature with the available buttons. This transmitter is compatible with the Mi-Light series (receivers, bulbs, downlights, etc.).
Receiver (s) need to be purchased separately. For compatible receivers please see the compatible MiBoxer products tab.
Application for installation:
MONO - single colour
CCT - with variable colour temperature (multi-white)
Characteristic features of the FUT007
Dimming and brightening of the connected LED lighting
Control of each zone separately
Enables/disables all zones simultaneously
Two modes of operation - mono and CCT (colour temperature change)
Instant brightness reduction (night mode)
Features of the FUT007 remote
Four zones to use
Battery powered (2x1.5V AAA)
Radio communication with receivers (2.4GHz)
Works with Wi-Fi controller (optional)
Ability to extend the installation at any time
24 months warranty
Basic communication with the receiver is via radio. Optional Wi-Fi control, which lets you control your lighting with your mobile device (such as a smartphone or tablet), is available only through the appropriate Wi-Fi module. The cooperating devices are listed in the compatible MiBoxer products tab.
Full control - cooperation with receiving devices
Each of the Mi-light LED driver series is characterized by the ability to assign not only one device to it. Built-in invisible underneath the electronics, it works on the principle of the receiver and thus connects to our LED driver. One zone in the remote control is also not an obstacle because we can assign to it many devices such as LED bulbs, downlights and receivers working with the model. Many devices do not interfere with each other and make this connection easy to use and easy to control. Above in the compatible MiBoxer products tab you will find a full table showing all the devices that work with your model

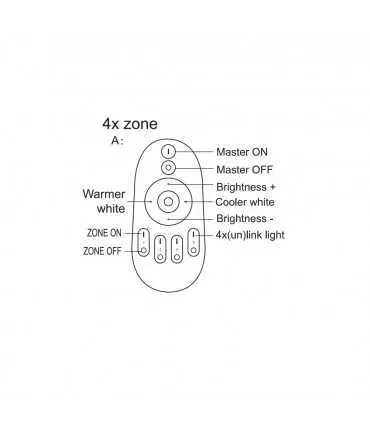

Remote construction - control has not been so easy
Depending on the model of the transmitting device, which mainly occurs as a radio link to the receiver, various control functions can be obtained. The centre of the touch screen is the main function of the control, it is through it that we can quickly change the intensity of the light or the colour temperature in the room. At the very top of the remote control, there are buttons to enable/disable all available zones in our LED installation. Buttons for turning on / off the zone are located at the bottom of the device stacked side by side. The construction of multi-zone pilots is simple, so access to the most important functions is convenient.
Entire room within reach of the hand - zone control
Some of the Mi-Light transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is an ability to program an unlimited number of receivers to a particular zone, in this case only the output parameters of the receiver.
Mi-Light 2.4GHz 4-zone CCT remote controller FUT007 specification
Application | MONO/CCT |
Number of zones supported | 1 to 4 |
Number of channels | 4 |
Brightness adjustment range | 1 – 100% |
Dimming/Brightening function | Yes |
Controlling method | Radio |
Controlling range | up to 30 meters in an open area (possibility of signal extension by signal retransmission) |
Model number | FUT007 |
Control frequency | 2,4GHz |
Powered by | 2 x 1,5V AAA batteries (not included) |
Transmission type | Two-way |
Smooth dimming effect | Yes |
Return to previous settings when power is off | No |
Colour | White |
Product compatibility | See the compatible MiBoxer products tab |
Dynamic programs | No |

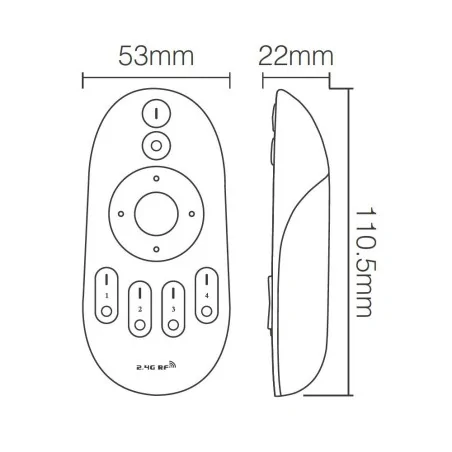

Dimensions[mm] | L110.5 x W53 x H22 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
Mi-Light 2.4GHz 4-zone CCT remote controller FUT007 package includes
1 x 4-zone CCT remote controller FUT007
1 x User Manual (English)
Data sheet
- Supported Zones
- 4-zones
- Light Colour
- CCT
MONO
- Rated Voltage
- 3V
- Features
- Wireless
- Ingress Protection
- IP20
- Model Number
- FUT007
- Certification
- CE
RoHS
- Warranty
- 2 years
- Light Source
- LED
- Communication Range
- 30m
- Communication Method
- Radio
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Colour
- White
- Battery Powered
- Yes
- Battery Type
- 2 x AAA
- Batteries Included?
- No
- Control Frequency
- 2.4GHz
- Current Type
- DC
- Power Source
- Battery
- Colour Changing
- No
- Class
- Lighting Remote & Control
- Unit Type
- Unit
- Installation Area
- Indoor
- Control Style
- Remote Control
- Item Length
- 110mm
- Item Width
- 53mm
- Item Weight
- 0.056kg
- Item Height
- 21.5mm
- Mounting
- Free Standing
- Wholesale Box Quantity
- 200
