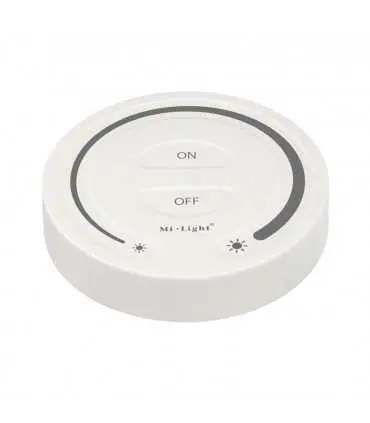

Product Name: Touch Dimming Remote Controller
Model No.: FUT087
Working Temperature: -20 -60℃
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 10uA
Control Distance: 30m
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• Brightness adjustable
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
LED wall-mounted radio panel - 1 zone - Mono - Mi-Light is a wireless round wall panel that allows dimming or brightening installations made of monochrome LED strip. Controlling the zone is possible by means of tactile fields located on the wall panel. The device is intended for surface mounting. The wall panel is powered by two 1.5V AAA batteries.
Application for installation:
MONO - single colour
Switching on and switching off connected LED lighting
Dimming and brightening of connected LED lighting
Immediate reduction in brightness (night mode)
One zone to use
Power through two AAA batteries
Radio range up to 30 meters
A gentle backlight of the diodes shows the work of the device
Construction adapted for surface mounting
Small dimensions and aesthetic workmanship
24 months warranty
The radio connectivity of the wall panel allows for wireless control at a level of 30 meters in the open area. Communication based on 2.4GHz frequency ensures stable and synchronized operation of the LED lighting used. The products cooperating with the FUT087 wall-mounted panel can be found in the compatible MiBoxer products tab.
The wireless radio route which characterizes these wall panels provides comfortable control of LED lighting within 30 meters in an area not exposed to interference. Increasing the radio signal in the installation is possible by using several receiving devices assigned to one zone. These devices are characterized by the transmission of the received signal to the next device, thus increasing the control range of the LED installation (The distance between the receivers cannot be greater than 30m).
The night mode function allows you to instantly reduce the LED lighting intensity with a one-touch field. This model is ideally suited to rooms with total dusk, preventing us from blinding the connected lighting. In addition, in night mode, the controller blocks the change in the brightness intensity level, making it permanent and not exposed to sudden changes.
Application | For monochrome installations (single colour) |
Maximum output current | Depends on the receiver used |
Powering the transmitter | 2x 1.5V AAA battery |
Number of supported zones/channels | 1 zone |
Communication method | radio |
Frequency of radio transmission | 2400-2483.5MHz |
The range of radio communication | Up to 30 meters in the open area |
Signal modulation | GFSK |
Transmission type | one-way |
Return to previous settings when power is off | No |
Cooperation with receivers | please see the compatible MiBoxer products tab |
Power consumption in operating mode | 6dBm |
Power consumption in standby mode | 10uA |
Touch buttons | Yes |
The working temperature of the wall panel | -20℃ -:- 60℃ |
The degree of tightness | IP20 |
The dimensions of the device | ⌀80mm*17mm |
Installation of a wall panel | surface mounting |
Colour | White |
Declarations | RoHS, CE, UKCA |
Warranty | 24 months |
1 x single colour dimmer
1 x user manual
Data sheet
