MiBoxer C9 SPI Remote 2.4GHz for LED Lighting Control | Future House Store
  • MiBoxer C9 SPI Remote 2.4GHz for LED Lighting Control | Future House Store
  • MiBoxer C9 SPI Remote 2.4GHz for LED Lighting Control | Future House Store
  • MiBoxer C9 SPI Remote 2.4GHz for LED Lighting Control | Future House Store

MiBoxer SPI Panel Remote (2.4GHz) B9

P2589
Mi-Light

Product Name: B9 SPI Panel Remote (2.4GHz)
Model No.: B9
Working Voltage: 3V (2 x AAA batteries, not included)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 15μA
Control Distance: 30m
Working Temperature: -10~40°C
• 2.4G RF wireless transmission for stable control
• Compatible with MiBoxer SPI controllers and LED strips
• Adjusts dynamic modes, colours, and brightness
• Controls multiple devices simultaneously
• Sleek panel design with anti-interference

£32.95
VAT included
£27.46 VAT excluded
Quantity
Last items in stock

Place your order by 10:00 AM to ensure same-day dispatch from our Coventry warehouse. Ordering from other warehouses does not affect your delivery time. Enjoy a faster, hassle-free experience!
Ask about the product on WhatsApp
Close
  Security policy

Your data is encrypted and GDPR compliant for safe, secure shopping.

  Delivery policy

Fast, reliable shipping with tracking. Orders dispatched quickly and securely.

  Return policy

Hassle-free 30-day returns. Contact us for a quick and simple process.

Description

MiBoxer B9 SPI Panel Remote (2.4 GHz) — Precision Control for SPI LED Strips

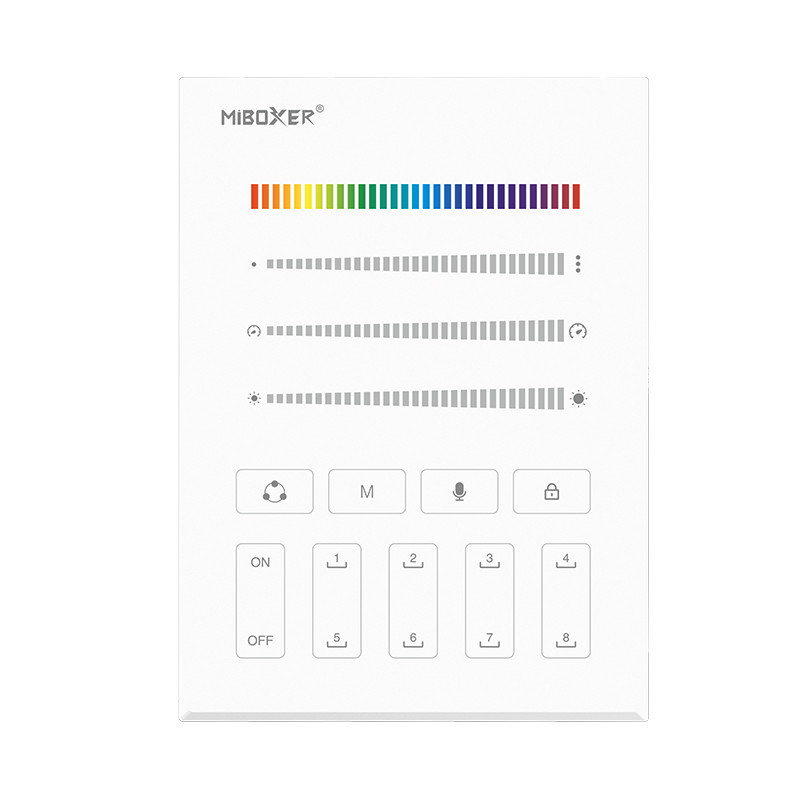

MiBoxer B9 SPI panel remote front view

Take command of your addressable lighting with the MiBoxer B9 SPI Panel Remote — a sleek, wall-mountable controller engineered for fast, stable 2.4 GHz RF control up to 30 metres. Designed to pair perfectly with MiBoxer SPI controllers (e.g. SPIR3, SPIR3-M), the B9 delivers precise, low-latency management of SPI LED strips across homes, retail displays, venues and commercial installations.

Why choose the MiBoxer B9?

  • Professional RF performance: 2.4 GHz transmission with anti-interference for reliable control up to 30 m.
  • Broad SPI compatibility: Works with popular protocols including WS2811, WS2812B, SK6812 and more (via compatible MiBoxer SPI controller).
  • Fine-tuned control: Adjust dynamic modes, colours, brightness, speed and pixel count for perfectly synced effects.
  • Multi-zone scalability: Control multiple devices simultaneously for synchronised scenes across large installs.
  • Capacitive touch panel: High-precision, responsive glass interface that looks great in modern interiors.

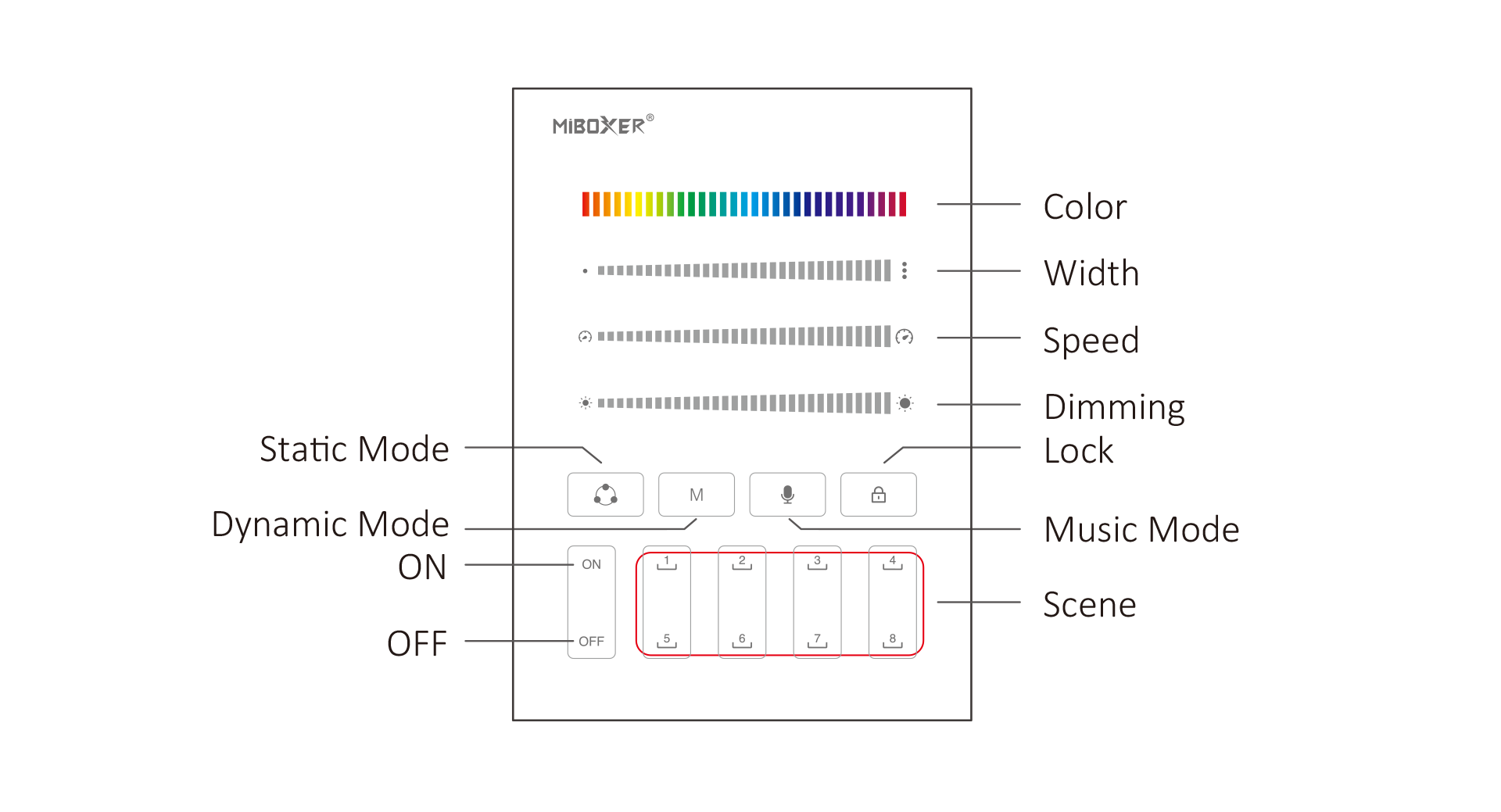

Versatile & dynamic functionality

Build vibrant animations or subtle ambience with quick access to scene editing, speed control and pixel mapping. The B9’s intuitive layout makes it easy to store and recall your favourite looks — ideal for professional lighting design or everyday mood lighting.

MiBoxer B9 SPI panel remote usage scenario

Built for reliability & efficiency

  • Power: 3 V (2 × AAA batteries)
  • Ultra-low standby: ~15 μA for long battery life
  • Operating temp: −10 ~ 40 °C
  • Compliance: EMC (ETSI EN 301 489-1 V2.2.3), LVD (EN 61347-2-11)

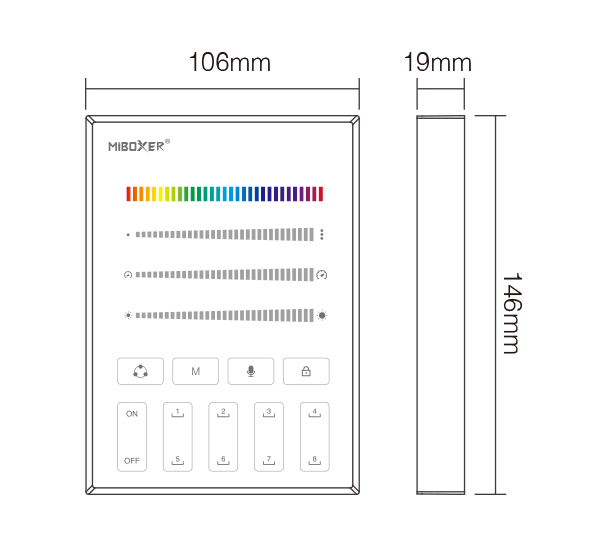

  • Form factor: Slim, wall-mountable panel design with premium capacitive touch

Typical applications

  • Retail & hospitality: Eye-catching, synchronised animations for displays and feature walls.
  • Events & venues: Fast scene changes and refined speed/pixel control for immersive effects.
  • Residential: Stylish, wall-mounted control for living rooms, gaming setups and home cinemas.

What you’ll need

  • MiBoxer B9 SPI Panel Remote (this product).
  • Compatible MiBoxer SPI controller (e.g. SPIR3 / SPIR3-M) connected to your SPI LED strip (WS2811 / WS2812B / SK6812, etc.).
  • 2 × AAA batteries.

Quick start (pairing outline)

  1. Install batteries and mount the B9 panel.
  2. Power your MiBoxer SPI controller and set the correct SPI IC type.
  3. Enter pairing mode on the controller, then follow the on-screen/leaflet steps to link the B9.
  4. Set pixel count, choose mode, and adjust speed/brightness to taste.

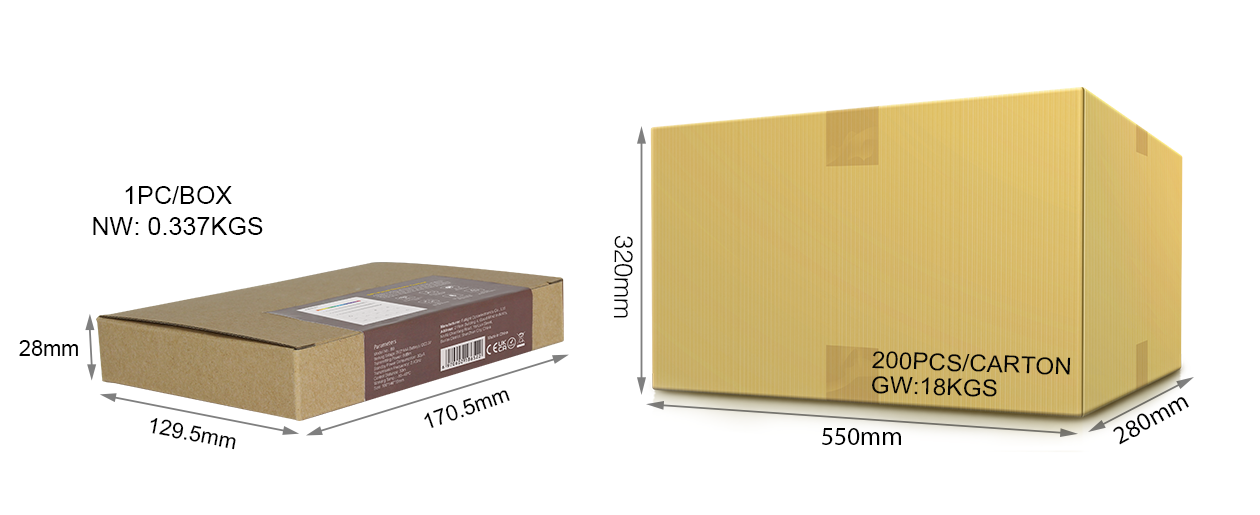

MiBoxer B9 packaging and accessories

Upgrade your SPI lighting with Future House Store

Get precise, responsive control with the MiBoxer B9 SPI Panel Remote. For compatible controllers and addressable strips, explore our curated range at Future House Store. Create stunning, synchronised effects with professional ease.

Product Details
P2589
New

Specific References

EAN13
6970602186522
MPN
B9
🌟 Your Feedback Fuels Our Innovation! 🌟 At Future House Store, we’re committed not just to meeting your expectations, but to consistently exceeding them. Every comment you leave is invaluable to us, as it helps refine our products and the overall customer experience. We invite you to read through the honest and unbiased reviews from our community of tech-savvy shoppers. Their insights cover everything from the quality and efficiency of our smart home solutions to the effectiveness of our customer service. Haven’t left a review yet? Now’s your chance to share! Your insights not only guide future customers but also shape our product development and services. Whether it’s a rave review or constructive criticism, we’re here for it. Because every voice matters in building the Future House Store experience. Thank you for being a pivotal part of our journey towards smarter, more efficient living. 🚀 Enjoy exploring our community’s thoughts below!

Leave a review

  • Matches description:
  • Quality:
  • Service:
Describe this product using simple and short words.
Upload images:
Drop images here or click to upload.
