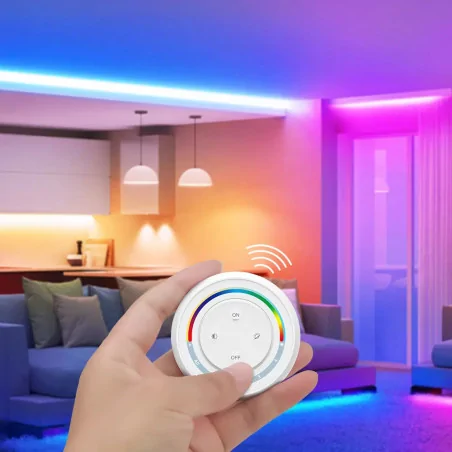

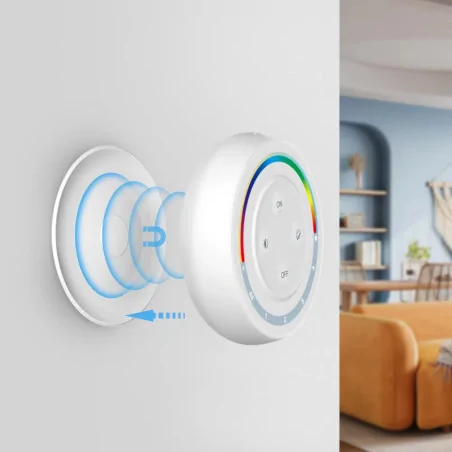

MiBoxer 4-zone rainbow remote (RGB+CCT) S2W+

● Unique skin-like design, delicate touch, as smooth as baby skin.

● Standard 86*86mm dimension design.

● Rated voltage of 250V~.

● Capable of withstanding a maximum current of 10A.

Product Name: 5 in 1 LED Controller (WiFi+2.4G)

Model No.: PW5

Input Voltage: DC12~48V

Output: 10A/Channel

Total Output: Max 20A

Communication Protocol: WiFi + 2.4GHz

2.4G RF Control Distance: 30m

IP Rate: –

Working Temperature: -10~40°C

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

Bluetooth Protocol: Bluetooth 4.2 (low power consumption)

• Support “Tuya Smart” app control, Support music rhythm

• Support third party voice control (Alexa, Google Assistant)

• 2.4G RF Remote controllable

• 16 Millions of colours to choose, colour temperature adjustable, brightness and saturation controllable

• Support PUSH dimming

• Switching 5 output mode via one button (Single colour/Dual white/RGB/RGBW/RGB+CCT)

Product Name: 2 in 1 LED Controller (WiFi+2.4G)

Model No.: PW2

Input Voltage: DC12~48V

Output: 20A/Channel

Total Output: Max 20A

Communication Protocol: WiFi+ 2.4GHz

2.4G RF Control Distance: 30m

IP Rate: –

Working Temperature: -10~40°C

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

Bluetooth Protocol: Bluetooth 4.2 (low power consumption)

• Support “Tuya Smart” app control, Support music rhythm

• Support third party voice control (Alexa, Google Assistant)

• 2.4G RF Remote controllable

• Brightness and color temperature adjustable

• Support PUSH dimming

• Switching 2 output mode via one button (Single colour/Dual white)

Product Name: AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push)

Model No.: TRI-PZ

Input Voltage: 100-240V~ 50/60Hz

Output Voltage: 100-240V~

Output Current: Max 2.27A

Output Power: 250W @110V; 500W @220V

Dim method: Zigbee 3.0 + 2.4G + Push

Zigbee Control Distance: 100m (open area)

2.4G RF Control Distance: 30m

IP Rate: –

Working Temperature: -10~40°C

Wireless Technology: Zigbee 802.15.4

Zigbee Wireless Frequency: 2.400-2.480GHz

• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps

• Support set up min brightness

• Brightness adjustable

• Product follows Zigbee 3.0 standard protocol

• Zigbee Control distance: 100m (open area)

• Support Amazon Alexa and Google Home control

• Support 2.4G remote control, control distance 30m

Product Name: AC Triac Dimmer (WiFi+2.4G+Push)

Model No.: TRI-PW

Input Voltage: 100-240V~ 50/60Hz

Output Voltage: 100-240V~

Output Current: Max 2.27A

Output Power: 250W@110V; 500W@220V

Dim Method: WiFi + 2.4G + Push

2.4G RF Control Distance: 30m

Wireless Technology: Wi-Fi IEEE 802.11b/g/n 2.4GHz

Working Temperature: -10~40°C

The TRI-PW supports the control of traditional incandescent lamps, halogen lamps, and dimmable LED lamps. It is compatible with the “Tuya Smart” app. Additionally, our product is compatible with Amazon Alexa and Google Home for voice control, and it comes with a 2.4G remote control that offers a control distance of up to 30 meters. Experience the convenience and comfort of smart home lighting with ease.

Product Name: AC Triac Dimmer (2.4G+Push)

Model No.: TRI-PR

Input Voltage: 100-240V~ 50/60Hz

Output Voltage: 100-240V~

Output Current: Max 2.27A

Output Power: 250W @110V

500W @220V

Dim Method: RF wireless dimming

Push dimming

2.4G RF Control Distance: 30m

IP Rate: –

Working Temperature: -10~40°C

• Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps

• Support set up min brightness

• Brightness adjustable

• Support 2.4G remote control, control distance 30m

Product Name: 2 in 1 LED Controller (WiFi+2.4G)

Model No.: HW2

Input Voltage: DC12~48V

Output: 30A/Channel

Total Output: Max 30A

Communication Protocol: WiFi+ 2.4GHz

2.4G RF Control Distance:  30m

IP Rate: –

Working Temperature: -10~40°C

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

Bluetooth Protocol: Bluetooth 4.2 (low power consumption)

• Support “Tuya Smart” app control, Support music rhythm

• Support third party voice control (Alexa, Google Assistant)

• 2.4G RF remote controllable

• Brightness and colour temperature adjustable

• Support PUSH dimming

• Switching 2 output mode via one button (Single colour/Dual white)

Product Name: 2 in 1 LED Controller (2.4GHz)

Model No.: HR2

Input Voltage: DC12~48V

Output: 30A/Channel

Total Output: Max 30A

RF: 2.4GHz

Control Distance: 30m

IP Rate: –

Working Temperature: -10~40°C

Output connection: Common anode

• Compatible with Mi-Light/MiBoxer 2.4GHz series remote

• Control Distance: 30m

• Brightness and colour temperature adjustable

• Support PUSH dimming

• Switching 2 output mode via one button (Single colour/Dual white)
