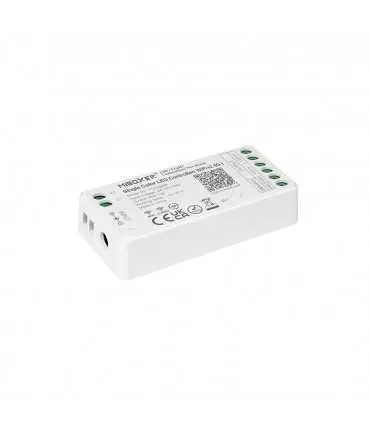

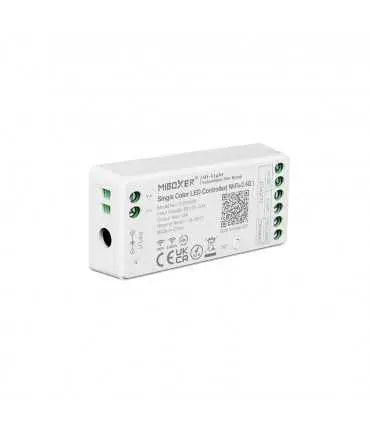

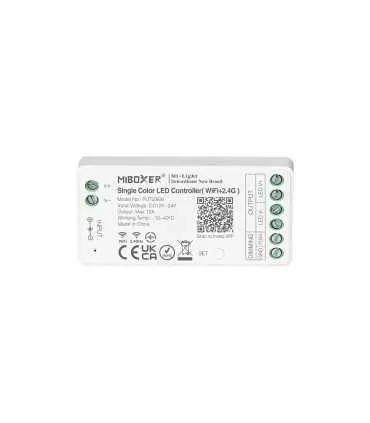

Product Name: Single Color LED Controller (WiFi+2.4G)
Model No.: FUT036W
Working Voltage: DC12~24V
Total Output: Max 12A
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Bluetooth Protocol: Bluetooth 4.2 (low power consumption)
RF: 2.4GHz
Remote Control Distance: 30m
Working Temperature: -10~40℃
FUT036W is an extended version of the popular FUT036S controller with a Wi-Fi module. The LED controller has the ability to change the frequency of PWM modulation and new dynamic functions. In addition, this controller has the function of transmitting and synchronizing the signal, which, while maintaining 30m intervals between subsequent devices, allows for infinite range. The controller's operating parameters are automatically synchronized with other products in the group, which allows obtaining the same lighting effect even when the products are launched at a different time. The power of the controller is 12A (144W for a 12V installation and 288W for a 24V installation). Built-in signalling diode allows for quick diagnosis and assigning the controller to the remote control without connecting the LED strip.
The built-in Wi-Fi module allows you to control the device directly from the application, the WL-BOX1 Wi-Fi bridge is not required.
This controller can be used as a replacement for the products: FUT036, FUT036M, FUT036S
| Application | For MONO (single colour) installation |
| Maximum output current | 12A |
| Input/Output Voltage | 12V DC or 24V DC |
| Number of outputs | 1 channel (V+/V-) |
| Controlling method | Radio, Wi-Fi, Bluetooth |
| Controlling range | up to 30 meters in an open area |
| Model number | FUT036W |
| Control frequency | 2.4GHz |
| Bluetooth Protocol | Bluetooth 4.2 (low power consumption) |
| WiFi Standard | IEEE 802.11b/g/n 2.4GHz |
| Working temperature | -20 – 60℃ |
| Compatible devices | please see the compatible MiBoxer products tab |
| Return to previous settings after power off | Yes |
| Input connector (power supply) | Screw terminals for bare wires and DC socket |
| Output connector (signal) | Screw terminals for bare wires |
| Dimensions[mm] | L74.5 x W36 x H17 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
1 x MONO (single colour) LED strip controller
1 x User manual (English)
Data sheet
