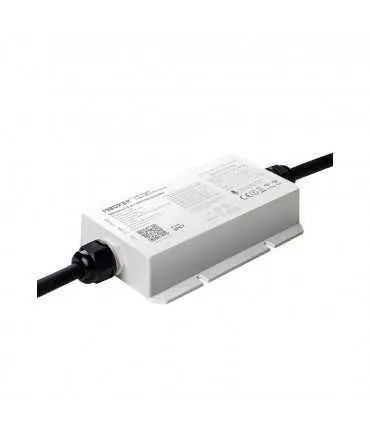

Product Name: Waterproof 5-in-1 WiFi LED Controller
Model No.: WL5-WP
Input Voltage: DC12V~36V
Output: 6A/Channel
Total Output Max: 20A
Communication Mode: WiFi-IEEE 802.11b/g/n 2.4GHz
RF: 2.4GHz
Remote control distance: 30m
Working Temperature: -20~45℃
IP Rate: IP67
• Support third-party voice control (Alexa, Google Assistant)
• 2.4G RF Remote controllable
• 16 Million colours to choose
• Colour temperature adjustable
• Brightness and saturation controllable
• Switching 5 output modes via one button (MONO/CCT/RGB/RGBW/RGB+CCT)
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
This LED controller is versatile and complete as it comes with a 5 output mode selection including brightness mode, colour temperature mode, RGB mode, RGBW mode, and RGB+CCT mode. It comes with 2.4 GHz WiFi control technology that can be controlled with a remote controller or smartphone app. It also supports third-party voice control via Google Assistant or Alexa Assistant.
To control it with a smartphone app or third-party voice control, you will require a 2.4 GHz Gateway i.e. WL-Box1. You can create the desired colour using 16 million colours and saturation adjustments. Adjust the brightness of your LED lights with this controller to create the right ambience. This powerful waterproof 5 in 1 LED controller works on both 12V and 36V DC circuits and it’s a maximum output capacity of 20A.
The most important feature that distinguishes this waterproof 5 in 1 WLP 5 WP controller from others is the waterproof design that makes it safe to use and eliminates potential safety hazards. MiBoxer waterproof 5 in 1 WiFi LED controller WL5-WP has a waterproof rating of IP67 that makes it resistant to water and safer to use.
It comes with a signal transmitting feature that involves one controller transmitting the signals from the remote control to another controller as long as there is a controller within 30 meters of distance with limitless remote control distance. Auto synchronization function enables the different controllers to work simultaneously when started at different times and operated with the same remote control under the same dynamic mode.
Another striking feature of this waterproof WiFi LED controller WL5-WP is that you can add devices to the group. The LED lights can be grouped for control at the same time with the help of remote control or a smartphone app. Each group of equipment is controlled by an independent controller. You can add as many lights to a group to be controlled simultaneously with a single command through the mobile app or remote control.
The app setting timing makes your experience even convenient as you can use the mobile phone app to control set the light on and off as per your needs. Besides, the smartphone app allows you to control lights from anywhere at any time. With the smartphone app control, you can remotely turn on the lights from outside the home or turn off the light any time if you forget to do them. It is a very convenient feature that makes your life easy.
This MiBoxer waterproof 5 in 1 WiFi LED controller WL5-WP is a comprehensive and versatile LED controller that can control and adjust the colour, colour temperature, brightness, and saturation of your LED strips. It has multiple controllers including the mobile phone app, remote control, and third-party voice control assistant. It is available at a reasonable price. The most important feature is the IP67 waterproof rating that makes it resistant to water and moisture as well as safe from potential hazards.
[ph-product-cms id="3"]
Type | Universal LED strip controller |
Rated power | 240W/480W/720W |
Rated voltage | 12V/24V/36V DC |
Light colour | MONO, CCT, RGB, RGBW, RGB+CCT |
Output | 6A per channel |
Total output | 20A |
Communication Mode: | WiFi-IEEE 802.11b/g/n 2.4GHz |
Controlling | using the Mi-Light/MiBoxer remote control (see compatible MiBoxer products) |
The method of communication with the remote control | 2.4GHz radio |
The range of communication | up to 30 meters in the open area |
Model number | WL5-WP |
Voice control | Amazon Alexa, Google Assistant |
Cooling | free air |
Working temperature | -20~45℃ |
Protective quick | Yes (plastic) |
Level of security | IP67 |
Size | 185 x 87 x 31mm |
Declarations/Certificates | RoHS, CE, UKCA |
Warranty | 24 months |
1 x universal LED strip controller in a retail packaging
1 x user manual
Data sheet
