Power supply with a rated voltage of 12V
Output Current: 29A
Rated power: 348W
Input voltage range (90 ÷ 132VAC, 180 ÷ 264VAC - selectable with a switch)
User-adjustable output voltage
Protections: Short-circuit/Overload/Overvoltage
Cooled by free air circulation
Tested under full load
86% efficiency, reliability and long life
It meets a number of safety standards and EMC electromagnetic compatibility
24-month warranty

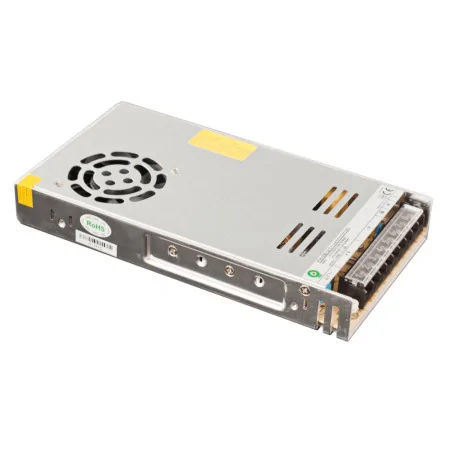

POS modular power supply POS-350-12-C 348W 29A
12V 348W LED power supply unit POS-350-12-C is designed for use in industrial automation systems, machine control, and is also used in industrial electronics. It has a number of protections such as short-circuit and overload protection. Power supplies of this group are the best value for money. Please take a look at our vast range of power supplies.
Features of the POS modular power supply POS-350-12-C 348W 29A
Power supply with a rated voltage of 12V
Output current: 29A
Rated power: 348W
Universal input voltage range (88 ÷ 132VAC or 180 ÷ 264VAC selectable via switch)
Adjustable output voltage
Protection: Short circuit/overload
Cooled by free air
Tested under full load
The efficiency of 83%
Reliability and long service life
Meets a number of safety standards and electromagnetic compatibility EMC
24 months warranty
POS modular power supply POS-350-12-C 348W 29A specification
| Rated output voltage (V) | 12V |
| Rated output power (W) | 348W |
| Rated output current (A) | 29A |
| Starting current (max.) | 30A / 115VAC; 60A / 230VAC (cold start) |
| Power input from | 5.4A / 115VAC; 2.6A / 230VAC |
| Efficiency | 83% |
| Frequency range of input voltage | 47 ÷ 63Hz |
| Input voltage range | 88 ÷ 132VAC or 180 ÷ 264VAC selectable via switch |
| Voltage regulation range | 10.8 ÷ 13.2V |
| Tolerance | ± 6.0% |
| Ripple and noise | 180mVP-P |
| Output current range | 0 ÷ 29A |
| Short-circuit protection | Type: Output voltage cut-off. Automatic return to normal operation after the cause disappears. |
| Overload protection | Range: 110 ÷ 150% of rated power |
| Ambient humidity | 20 ÷ 90% relative (non-condensing) |
| Operating temperature | -5 ° C ÷ + 45 ° C |
| I / O strength: | 3kVAC, WE / HOUSING: 1.5kVAC, OUTPUT / OUTPUT: 0.5kVAC |
| Storage temperature and humidity | -20 ° C ÷ + 80 ° C; 10 ÷ 95% relative (non-condensing) |
| Vibration resistance | 10 ÷ 500Hz, 2G, 12min / periodically for 30min. along the X, Y, Z axis SAFETY STANDARDS |
| Safety standards | EN60950-1 |
| Conducted and radiated disturbances – EMI | EN55022 |
| Resistance – EMS | EN61000-4-2, -4, -5, -11 |
| Dimensions (L * W * H) | 215mm * 115mm * 30mm |
| Weight | 0.81kg |
| Warranty period: | 24 months |
Connection: L, N: AC power input GND: Ground/Line Earth input V-: DC power output “-” V+: DC power output “+” V / ADJ: Adjust the output voltage
To avoid overheating and gain a long service life, we suggest users use 80% of the full load at most, for example, if the load is 200W, please use a 240W power supply.
LED strip support table
| SMD 3528 | SMD 3528 | SMD 5050 | SMD 5050 | |
|---|---|---|---|---|
| Power | 60 LEDs/m | 120 LEDs/m | 30 LEDs/m | 60 LEDs/m |
| 12W | 2.5 meters | 1.2 meters | 2.0 meters | 1.0 meters |
| 24W | 5.0 meters | 2.5 meters | 4.0 meters | 2.0 meters |
| 36W | 7.5 meters | 3.7 meters | 6.5 meters | 3.0 meters |
| 48W | 10.0 meters | 5.0 meters | 8.5 meters | 4.0 meters |
| 60W | 12.5 meters | 6.2 meters | 11.0 meters | 5.5 meters |
| 120W | 25.0 meters | 12.5 meters | 22.0 meters | 11.0 meters |
| 180W | 37.5 meters | 18.7 meters | 33.0 meters | 16.5 meters |
| 300W | 62.5 meters | 31.0 meters | 55.0 meters | 27.0 meters |
| 400W | 83.0 meters | 41.0 meters | 73.0 meters | 36.0 meters |
| 500W | 104.0 meters | 52.0 meters | 91.0 meters | 50.5 meters |
