Power: 60W
Input voltage: 100-240V AC
Output voltage: 12V DC
Current: 5A
Type: Constant Voltage
Dimming Control: Switching only
Insulation class: II
Working temperature: -30°C ~ +70°C
Dimensions: 163 x 43 x 32 mm
Ingress Protection: IP67 (Waterproof)
Warranty: 2 years
Application of the power supply:
- LED MR16 12V bulbs
- LED MR11 12V bulbs
- LED G4 12V bulbs
- RGB LED tapes
- Single colour LED tapes
Perfectly suited for lighting in the bathroom, kitchen, sauna due to hermetic construction.

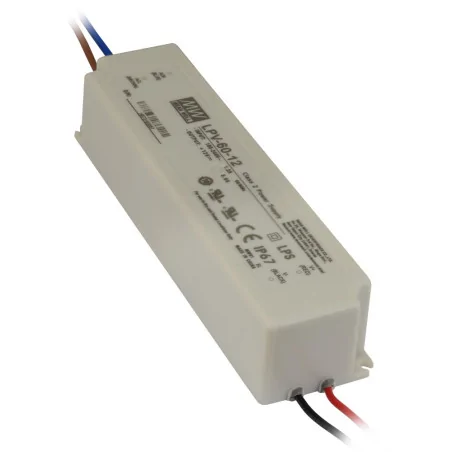

Mean Well LPV-60-12 LED power supply 12V 60W IP67
Switching power supplies of the LPV series by Mean Well are devices in a sealed plastic housing with an IP67 degree of protection, which allows you to work in damp places or outside the building.
The power supply meets a number of safety standards and has numerous certificates, so it can be used without any worries in domestic and commercial use.
The construction of the power supply means that its main purpose is LED applications such as tapes, banners, advertisements, light bulbs, fittings and lamps. The device is also characterized by small dimensions and like in similar constructions of this type has built-in power cords.
Product features:
Plastic tight housing according to IP67 standard.
Product of reputable manufacturer Mean Well.
Constant output voltage regardless of load.
Overvoltage resistance 300VAC for 5 seconds.
II insulation class.
Tested under full load
Protections: against short-circuit, overload, overvoltage.
2 years warranty
Application / Characteristics | ||
---|---|---|
LED lighting |
|
|
Specification | ||
Input Voltage: | 100 ~ 240VAC (47-63Hz) | |
Output Voltage: | 12V | |
Current Range: | 5 A | |
Power: | 60W | |
Efficiency: | > 83% | |
Working temperature: | -30 ° C ~ 70 ° C | |
Ripple: | 120mV | |
Plug: | Bare wires | |
MTBF: | 743000h | |
Security: | OCP; OVP; SC | |
Certificates: | CE; TUV / GS; | |
Dimensions: | 163x43x32mm | |
Weight: | 410g |
