Mi-Light 0/1~10V dimming driver LS4
This Mi-Light 0/1~10V dimming driver LS4 is a radio LED receiver - 0 / 1-10V DIMM - 12-24V 12A - MONO. The product is designed to control the brightness of a single-colour LED strip. Smooth dimming and illumination of lighting in a monochrome installation is done by wireless 2.4GHz radio signal. The Mi-Light receiver allows for alternative control by using a 0-10V, 1-10V, 10V PWM dimmers, or a bell switch. Works with Mi-Light transmitters.
Using alternative inputs allows you to expand the installation by using several dimmer methods for one LED lighting circuit. The receiver is designed to control the lighting by means of a 0-10V, 1-10V and 10V PWM wall dimmer, which controls the DC voltage and PWM frequency by means of a potentiometer, thereby changing the brightness. It is also used without a potential input allowing for the connection of a bell switch.
The remote is not included and needs to be purchased separately. For compatible products please see Table 1.
Application for installation:
MONO - single colour LED strips
Features of the Mi-Light LS4 receiver
Application for MONO installation
Alternative control methods (0-10V, 1-10V, 10V PWM)
Radio signal extension (signal retransmission)
Shared synchronization of devices in the installation
Input voltage range 12-24V DC.
Wireless communication with remote control
Additional potential-free input
Maximum current carrying capacity 12A
Works with Wi-fi (optional)
Possibility of creating a very large LED installation
The type of communication that connects the transmitter to the receiver is via radio. 2.4GHz frequency-based signal, allowing for 30m wireless operation in open areas. With more devices (receivers), we can create LEDs based on unlimited coverage, thanks to signal retransmission technology. The condition of this work is to place another receiver within 30 meters. Products that work with the LS4 receiver are listed in the following Table 1.
Table 1. Compatible devices with Mi-Light 0/1~10V dimming driver LS4
|Product code||Product name|
||Mi-Light 2.4GHz 4 zone rotating wheel remote controller FUT006
||Mi-Light 2.4GHz 4 zone CCT remote controller FUT007
|| Mi-Light 4-Zone CCT adjust smart panel B2
|| Mi-Light 4-Zone CCT adjust smart panel remote controller T2
||Mi-Light 4-channel high-performance amplifier PA4
||Mi-Light WiFi iBox smart light iBox1
||Mi-Light WiFi controller iBox2
Automatic synchronization - precision in operation
When more than one receiver is controlled by one transmitting device, the installation is synchronized during operation without causing delays during operation.
Transmission - transmitting radio signal
Increasing the radio signal in the installation is possible with the use of several receivers. These devices are characterised by the transmission of the received signal to the next device, thereby increasing the range of control of the LED installation (distance between receivers cannot be more than 30m).
Power supply - connectors for easy assembly
Receiver units are supplied with DC voltage of 12VDC or 24VDC, which must be connected to the input of the device. For ease of installation, the receiver design consists of screw terminals, both at the input and the output, which makes it easy to wire the device. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. Wiring is stable and quick to install.
Alternative control - enhanced functionality
Using additional control inputs, this is ideal for expanding our LED installation with additional control. In addition to the basic radio communication, we can get wired control over the voltage of 0-10V and 1-10V or also the frequency of the PWM signal (10V PWM). Receivers in their construction also have a potential-free input, allowing the user to connect a simple bell button. This type of receiver is primarily a function of LED installation.
Mi-Light 0/1~10V dimming driver LS4 specification
||MONO - single colour LED strips
|Input/output voltage of the receiver
||12V DC or 24V DC
|Maximum output current of the receiver
|Number of outputs of the receiver
||2 outputs - common anode
|Number of receiver inputs
||3 + GND
||up to 30 meters in open area (possibility of signal extension by signal retransmission)
||0-10V, 1-10V, 10V PWM, PushSwitch and Wi-Fi module (see "Product description").
||-20 – 60℃
|Return to previous settings when power is off
||See ,,Product description table 1"

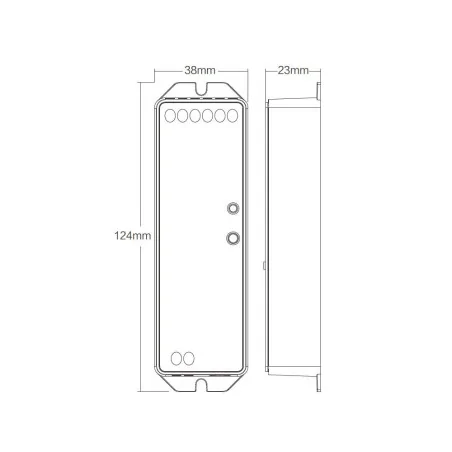

||L124 x W38 x H23
Mi-Light 0/1~10V dimming driver LS4 package includes
1 x Mi-Light radio receiver LS4
1 x User Manual (English)
you may also be interested in Mi-Light 40W 0/1~10V dimming driver PL1
