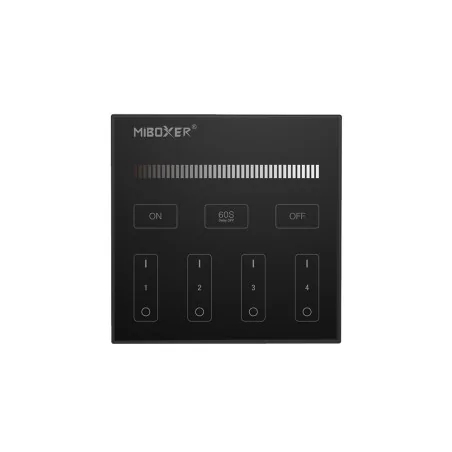

MiBoxer black 4-zone brightness panel remote B1-B

MiBoxer black 4-zone brightness panel remote B1-B

New Black Series radio wall dimmer - 4 MONO -MiBoxer is a wireless wall panel that can be controlled by the brightness of the connected monochrome LED strip. The dimmer allows individual access to each zone, which can be controlled via a glass wall panel. The device is designed for surface mounting. The wall panel is powered by two 1.5V AAA batteries (not included).

Application for installation:

MONO - one colour

Characteristic features of the MiBoxer B1-B wall panel

Switching ON or OFF the connected LED illumination

Enables and disables all zones simultaneously

Dimming and brightening of the connected LED lighting

Dimming and brightening of all zones simultaneously

Immediate reduction of brightness (night mode)

Turn OFF the light with a 60-second delay

Features of the MiBoxer 4-zone brightness dimming smart panel B1-B

Four zones to use

Powered by two AAA batteries (not included)

Radio range up to 30 meters

The glass panel on the wall

Possibility of extension of the installation

Sound signalling

Gentle LED illumination showing the work of the device

Construction suitable for surface mounting

24 months warranty

The wireless connectivity of the wall panel enables wireless control of up to 30 meters in open areas. Communication based on 2.4GHz frequency provides stable and synchronized operation of the LED lighting used. Products that are compatible with the B1-B wall panel can be found in the compatible MiBoxer products tab.

Wall panel design - a small touch, big possibilities

MiBoxer wall panels differ in their design depending on the model presented. A coherent control element is the control element, which corresponds to a different function. In the centre of the wall panel is a button for turning ON/OFF the connected LED illumination, brightness and colour temperature for the CCT controllers, using the touch control slider. The colour scheme of the RGB, RGB+W or RGB+CCT multicolour driver is the same, the change is achieved through the discs on which the individual colours or touch sliders are located. The rest of the buttons already refer to the specific features available for the model, as shown in the attached image.

Glass touch panel - touch control

The glass touch panel in the MiBoxer series not only provides an aesthetically pleasing appearance due to the absence of protruding buttons but also a full touch screen with touchpads for different functions depending on the model of the device. In addition to the glass wall panel, I have good protection for all kinds of minor scratches, so you get high durability for a long period of time.

Entire room within reach of the hand - zone control

Some of the MiBoxer transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is an ability to program an unlimited number of receivers to a particular zone, in this case only the output parameters of the receiver.

Full control - cooperation with receiving devices

Each of the MiBoxer LED driver series is characterized by the ability to assign multiple devices to it. Built-in invisible underneath the electronics, it works on the principle of the receiver, thus connecting with our LED driver. One zone in the remote control or wall panel is also not an obstacle because we can assign many devices such as LED lamps, downlight luminaires and receivers working with the model. Many devices do not interfere with each other and make this connection easy to use and easy to control. Above in the compatible MiBoxer products tab, you will find a full table showing all the devices that work with your model

MiBoxer black 4-zone brightness panel remote B1-B specification

MiBoxer black 4-zone brightness panel remote B1-B package includes

1 x black MiBoxer 4-zone wall dimmer B1-B

1 x Plastic wall mount with magnet

1 x User Manual (English)
