Product Name: 4 Zone Touch RF RGBW Remote Control
Model No.: FUT096-B
Voltage: 3V (2 x 1.5V batteries)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power Consumption: 20uA
Control Distance: 30m
Size: 52.5*21*120mm
• 2.4G RF wireless transmission technology
• It can control MiBoxer/Mi-Light 2.4G series products
• Control distance: 30m
• 16 Million colours to choose
• Brightness adjustable
Available also in white colour

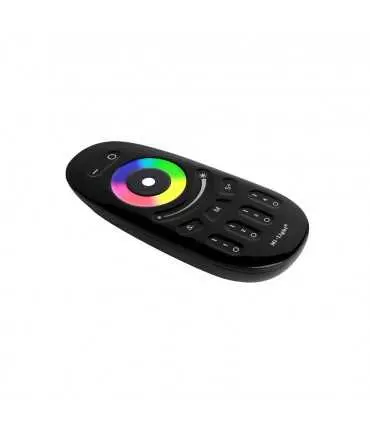

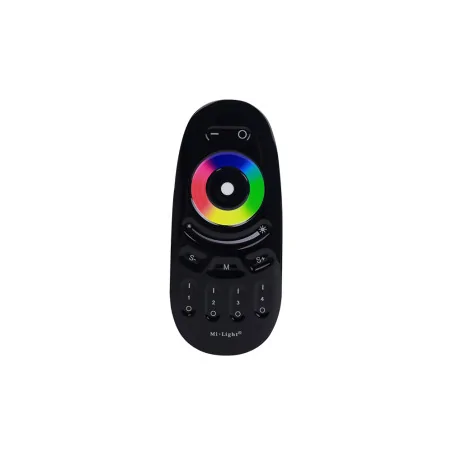

MiBoxer 4-zone touch RF RGBW remote control FUT096-B
SMART RGB+MULTIWHITE CONTROL REMOTE CONTROL WITH UP TO 4 INDEPENDENT ZONES
Innovative four-zone LED radio remote control, which allows individual control of each zone using a radio receiver. It is characterized by full controllability, both obtaining any colour from the RGB colour palette, as well as an active change of brightness intensity along with the CCT colour temperature. This transmitter works with receivers, light bulbs.
The dynamically developing LED technology allows for amazing control and innovative solutions available at any time within the reach of our hands. Devices marked with the symbol or RGB + Multiwhite allow you to obtain any colour from the RGB palette with the CCT colour temperature in the 2700K-6500K range, i.e. warm white and cold white. This solution allows you to adjust the device to the conditions in the room, making the product more practical. Obtaining such functions is extremely pleasant, thanks to the interestingly designed LED drivers, allowing for wireless control of the LED installation.
Receiver (s) need to be purchased separately. For compatible receivers please see the compatible MiBoxer products tab.
Application for installation:
RGB - multicolour
RGB+W - multicolour with extra white
Characteristic features of the Mi-Light remote control FUT096-B
Dimming and brightening of the connected LED lighting
Active colour change from RGB colour palette
Possibility to turn white (using RGB+W tape)
Control of each zone separately
Enables/disables all zones simultaneously
Active dynamic programs to use (change mode/speed)
Features of the Mi-Light remote control FUT096-B
Four zones to use
Powered by 2 x 1.5V AAA batteries (not included)
Application for RGB/RGBW tapes
Radio communication with receivers (2.4GHz)
Built-in dynamic programs to diversify multi-colour installations
Works with Wi-Fi controller (optional)
Ability to extend the installation at any time
Touch buttons
24 months warranty
Table 1. Dynamic programs for the MiBoxer 4-zone touch RF RGBW remote control FUT096-B
Number | Function | Change speed | Change brightness |
---|---|---|---|
1 | Smooth change of red, green, blue and white colours | Possible | Possible |
2 | Jumps between red, green, blue, yellow, purple, blue and white | Possible | Possible |
3 | Quick jump between different colours | Possible | Possible |
4 | Smooth brightening and dimming of red and triple flash | Possible | Possible |
5 | Smooth brightening and dimming of green and triple flash | Possible | Possible |
6 | Smooth brightening and dimming of blue and triple flash | Possible | Possible |
7 | Combined programs no. 3/4/5/6 | Possible | Possible |
8 | Slow, smooth flow between different colours | Possible | Possible |
9 | Dimming and brightening of white (W) | Possible | Possible |
Benefits:
The remote control works at a distance of up to 30m via its own 2.4GHz network
Streamlined, hand-held remote control with tactile buttons,
Create up to 4 zones. There can be up to 99 light bulbs or receivers in one zone
Control of MONO, RGB, RGBW and MultiWhite LED strips
Modern technology of touch control
9 dynamic programs, changes in the speed of operation in dynamic modes,
setting the selected colour via a touch ring - 16 million colours
Changing the colour temperature from Warm White to Cold White
Dimming and brightening,
RGBW remote control FUT096-B specification
Application for | RGB+W installation |
Number of zones/channels supported | 4 |
Controlling via | Radio |
Controlling method | Buttons + colour wheel |
Powered by | 2 x 1.5V AAA battery (not included) |
Signal modulation | GFSK |
Type of transmission | One-way |
Power consumption | 6dBm |
Standby power consumption | 20uA |
Compatible with | Mi-Light RGBW series (see the compatible MiBoxer products tab) |
Method of communication | 2.4GHz radio |
Controlling range | up to 30 meters in an open area |
Colour | Black |
Degree of protection | IP20 |
Model number | FUT096-B |
Dimensions[mm] | L120 x W52.5 x H21 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
MiBoxer 4-zone touch RF RGBW remote control FUT096-B package includes
1 x Remote controller FUT096-B (batteries not included)
1 x User Manual (English)
In our offer, you will also find a remote control wall holder FUT099.
Data sheet
- Supported Zones
- 4-zones
- Light Colour
- RGBW
- Rated Voltage
- 3V
- Features
- Wireless
- Ingress Protection
- IP20
- Model Number
- FUT096-B
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Light Source
- LED
- Communication Range
- 30m
- Communication Method
- Radio
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Colour
- Black
- Battery Powered
- Yes
- Battery Type
- 2 x AAA
- Batteries Included?
- No
- Control Frequency
- 2.4GHz
- Current Type
- DC
- Power Source
- Battery
- Colour Changing
- Yes
- Class
- Lighting Remote & Control
- Unit Type
- Unit
- Installation Area
- Indoor
- Control Style
- Remote Control
- Item Length
- 120mm
- Item Width
- 52.5mm
- Item Weight
- 0.063kg
- Item Height
- 21mm
- Mounting
- Free Standing
- Wholesale Box Quantity
- 200
