Product Name: 100W 5 in 1 LED controller
Model No.: PX1
Input Voltage: AC180~240V 50/60Hz
Output Voltage: DC24V
Output Current (Max): 4.5A
Output Power (Max): 100W
PF: >0.5
Remote Control Distance: 30m
Ta: 50℃
Tc: 85℃
The Mi-Light PX1 controller is a universal device designed to work with LED strips. The 5 in 1 PX1 controller has a built-in LED driver with a capacity of 100W 24V DC. The type of LED strip controlled by PX1 can be set in the App on your mobile device as the controller works with (MONO/CCT/RGB/RGBW and RGB+CCT) and it can be used in 1, 4 or 8 zone setup. All the PX1 controllers can be grouped together. The PX1 universal controller allows a smooth adjustment of brightness, light colour, saturation and colour temperature of white light. The PX1 can be controlled via remote control (please see the compatible remotes in the compatible MiBoxer products tab) or your mobile device such as smartphone or tablet (the WL-Box1 is required for mobile device control and the Voice Control via Amazon Alexa). In addition, this universal Mi-Light controller can create an unlimited control range via signal retransmission.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab
The casing is made of high-quality aluminium
Obtaining any RGB colour
Obtaining any CCT colour temperature
Radio communication range of 30 meters
Alternative control via Wi-Fi
Retransmission of the received radio signal
Automatic synchronization between devices
Mounting holes that allow surface installation
The type of communication that connects the transmitter to the receiver is via radio. A signal based on 2400-2483.5 MHz frequencies allows for 30 meters of wireless operation in an open area. With more devices (receivers), we can create LED lighting based on unlimited range, thanks to signal retransmission technology. The condition of this work is to place another receiver within 30 meters. Products that are compatible with the PX1 receiver can be found in the compatible MiBoxer products tab
Automatic synchronisation - precision in operation
When more than one receiver is controlled by one transmitting device, the installation is synchronized during operation without causing delays during operation.
Retransmission - transmitting signal between devices
Increasing the radio signal in the installation is possible with the use of several receivers. These devices are characterized by the transmission of the received signal to the next device, thereby increasing the range of control of the LED installation (distance between receivers cannot be more than 30m).
Multi-tasking mode in one device
Any type of LED can be used for this type of receiver. The device works with monochrome and multicolour lighting with variable colour temperature.
| Application | MONO/CCT/RGB/RGB+W/RGB+CCT |
| Input/output voltage of the receiver | 24V DC |
| Maximum output current | 4,5A |
| Number of outputs of the receiver | 6 outputs (R/G/B/CW/WW/V+) - common anode |
| Controlling method | Radio |
| Controlling range | up to 30 meters in an open area (possibility of signal extension by signal retransmission) |
| Model number | PX1 |
| Control frequency | 2,4GHz |
| Working temperature | 0 – 60℃ |
| Input connector (power supply) | Quick push-in terminals for bare wires |
| Output connector (terminal) | Screw terminals for bare wires |
| Colour | Grey |
| Product compatibility | See the compatible MiBoxer products tab |
| Ingress Protection | IP20 |

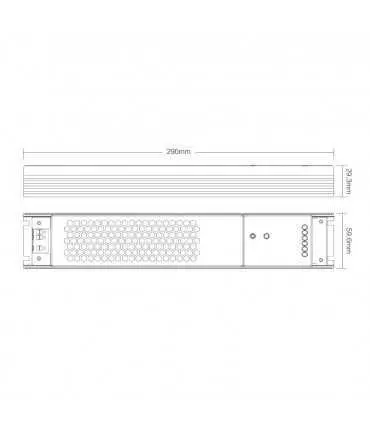

| Dimensions[mm] | L290 x W51.5 x H29.5 |
| Certification | RoHS, CE |
| Warranty | 2 years |
1 x Mi-Light universal radio receiver PX1
1 x User Manual (English)
