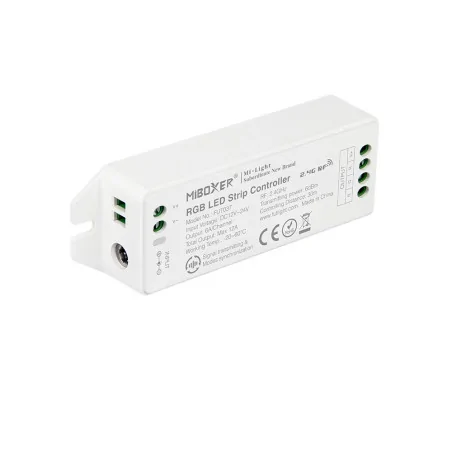

Product Name: 2.4GHz RGB LED Strip Controller
Model No.: FUT037 (Upgraded)
Working Voltage: DC12V~24V
Working Temperature: -20~60°C
Output Max: 6A/Channel
Total Output Max:12A
RF: 2.4GHz
Transmitting power: 6dBm
Control Distance: 30m
Output connection: Common anode
• 2.4G RF wireless transmission technology
• 16 Million colours to choose
• Mix RGB light to adjust colour temperature
• Brightness and saturation controllable
• Control distance: 30m
RGB 12-24V DC 10A Mi-Light radio receiver is a small size device for controlling multicolour LED lighting. The device is designed to change colour and brightness by using a suitable controller. The connectivity of this device is achieved by radio, it is through it that the receiver communicates with the transmitter. This receiver is compatible with the Mi-light series.
The remote controller or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
Application for installation: RGB - multicolour
Application for RGB (multicoloured) tapes
Wireless communication with the control unit
Possibility of obtaining any colour
Obtaining brightness control
Works with Wi-Fi (optional)
Input voltage range 12-24V DC
Use multiple receivers in one zone
Maximum current carrying capacity 12A
Small size
The Mi-Light series is characterised by wireless radio communication with a remote control unit or wall panel. The range of this connection is 30 meters in the open area, provided that it is not exposed to various types of interference. Products that work with the FUT037U receiver are listed in the compatible MiBoxer products tab.
Receiver units are supplied with a DC voltage of 12VDC or 24VDC, which must be connected to the input of the device. For ease of installation, the receiver design consists of screw terminals, both at the input and the output, which makes it easy to wire the device. Also, when you have a power supply that has a DC plug, you can connect directly to the DC jack located next to the input terminals of the receiver. The wiring is stable and quick to install.
The wireless radio through which the device communicates provides a full palette of control possibilities. Depending on the product, control can be carried out with the help of many available 2.4GHz radio transmitters. This basic form of communication provides stable LED lighting control within 30 meters of the open area. In addition, most of the products can be expanded to include an alternative form of control through the use of a Wi-Fi module that enables the integration of our mobile application with a compatible Mi-Light device. The transmitters that work with your device can be seen above in the compatible MiBoxer products tab.
The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. Obtaining a given shade of colour depends on the precision of the control, which is usually done with tactile transmitters. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.
| Application | For multi-colour RGB installations |
| Maximum output current | 12A |
| Input / Output Voltage | 12V DC or 24V DC |
| Number of outputs | 3 outputs (R/G/B)- common anode |
| Controlling method | Radio |
| Controlling range | up to 30 meters in an open area |
| Model number | FUT037M |
| Control frequency | 2.4GHz |
| Output signal | PWM |
| Additional control | Wi-Fi with WL-Box1 |
| Working temperature | -20 – 60℃ |
| Compatible devices | please see the compatible MiBoxer products tab |
| Return to previous settings after powering off | Yes |
| Input connector (power supply) | Screw terminals for bare wires and DC socket |
| Output connector (signal) | Screw terminals for bare wires |
| Dimensions[mm] | L85 x W45 x H22.5 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
1 x RGB Controller FUT037U
1 x User Manual (English)
1 x Double-sided tape
Data sheet
