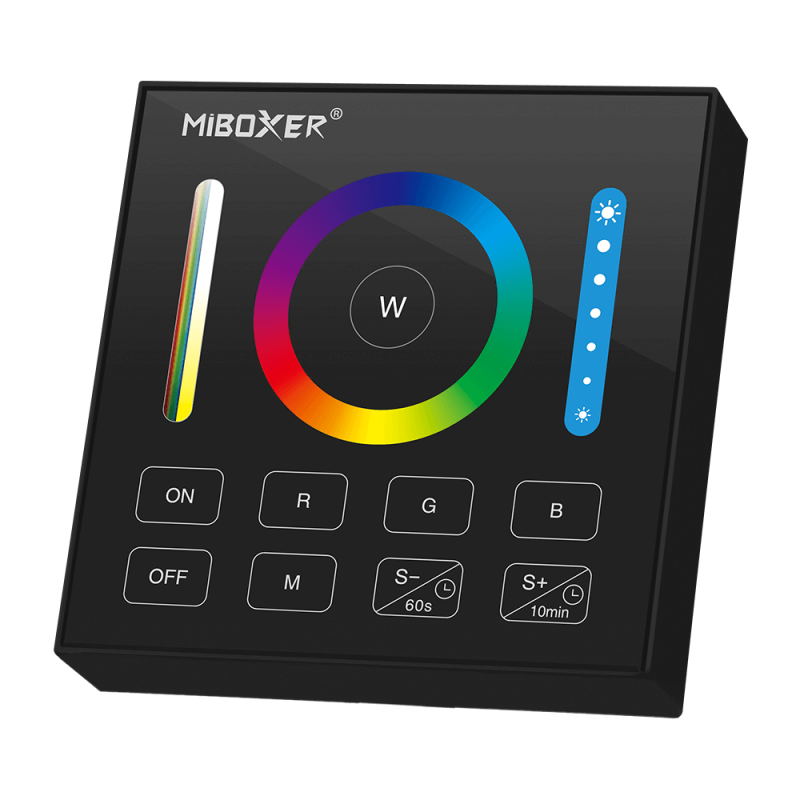

Product Name: Panel Remote (RGB+CCT)
Model No.: B0-B
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2.4GHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Standby Power: 20uA
Control Distance: 30m
Working Temp.: -10~40℃
• Adopt a high-precision capacitive touch IC
• Magnetic installation
• 2.4G RF wireless transmission technology
• Support MiBoxer/Mi-Light 2.4G series
• Control distance: 30m
• 16 Million colours
• Brightness, colour temperature and Saturation adjustable
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
The MiBoxer Panel Remote RGBCCT B0-B is the perfect solution for your smart home lighting needs. This advanced 1-zone panel remote is designed to work with Mi-Light/MiBoxer's line of LED controllers, allowing you to customise the lighting in any room with ease. Whether you're looking to create a warm and inviting atmosphere or a cool and energizing ambience, the MiBoxer Panel Remote RGBCCT B0-B has you covered.
One of the key features of this remote is its ability to control both RGB and CCT lighting. With just a few taps of the buttons, you can adjust the colour temperature of your lights from warm white to cool white, or even mix colours to create a unique hue. The remote also offers full RGB colour control, allowing you to select from over 16 million colours and create the perfect mood for any occasion.
The MiBoxer Panel Remote RGBCCT B0-B is incredibly user-friendly, with an intuitive interface that is easy to navigate. The remote features a large, backlit LCD screen that displays all the information you need, including the current colour temperature, brightness level, and selected colour. The buttons are also clearly labelled, making it easy to find the function you need at a glance.
In terms of design, the MiBoxer Panel Remote RGBCCT B0-B is sleek and modern, with a slim profile that fits comfortably in your hand as well as it will look great on your wall. The remote is also lightweight and easy to handle, making it ideal for use in any room of your home. The remote is powered by 2 AAA batteries, which need to be purchased separately as they are not included in the package.
Whether you're looking to create a warm and inviting atmosphere or a cool and energizing ambience, the MiBoxer Panel Remote RGBCCT B0-B has everything you need to create the perfect lighting for any occasion.
Number | Function | Change of speed | Changing the brightness/saturation |
---|---|---|---|
1 | Smooth transition between all colours | Possible | Possible |
2 | Smooth pulsation of white colour | Possible | Possible |
3 | Smooth transition between RGB colours | Possible | Possible |
4 | A jumping change of seven colours | Possible | Possible |
5 | A jumping change of random colours | Possible | Possible |
6 | Smooth pulsation of red colour ended with a triple flash | Possible | Possible |
7 | Smooth pulsation of green colour finished with a triple flash | Possible | Possible |
8 | Smooth pulsation of blue colour finished with a triple flash | Possible | Possible |
9 | The smooth pulsation of the white colour ended with a triple flash | Possible | Possible |
Application | For multi-colour RGB/RGB+W/RGB+CCT installations |
Maximum output current | Depends on the receiver used |
Powering the transmitter | 2 x 1.5V AAA battery (not included) |
Number of supported zones/channels | 1 zone |
Communication method | Radio |
Frequency of transmission | 2400-2483.5MHz |
The range of radio communication | Up to 30 meters in the open area |
Signal modulation | GFSK |
Transmission type | One-way |
Output signal | PWM control |
Return to previous settings when power is off | No |
Cooperation with receivers | See the compatible MiBoxer products tab |
Power consumption in operating mode | 6dBm |
Power consumption in standby mode | 20uA |
Touch buttons | Yes |
Glass panel | Yes |
The working temperature of the wall panel | -10℃ ~ 40℃ |
The degree of tightness | IP20 |
The dimensions of the device | 86mm * 86mm * 16mm |
Installation of a wall panel | Surface mounting |
Colour | Black |
Certification | RoHS, CE, UKCA |
Warranty | 24 months |
1 x RGB/RGB+W/RGB+CCT black one zone wall remote in a retail packaging
1 x User manuals
Data sheet
