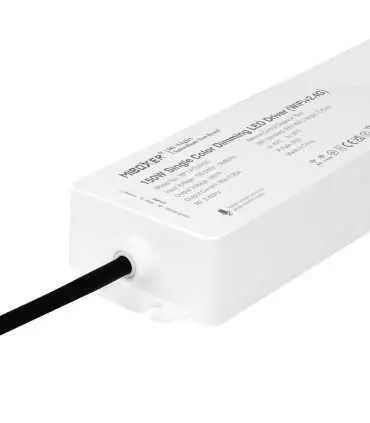

MiBoxer 150W single colour dimming LED driver (WiFi+2.4G) WP1-P150V24

Product Name: 150W Single Color Dimming LED Driver (WiFi+2.4G)

Model No.: WP1-P150V24

Working Voltage: 100-240V~  50/60Hz

Output Voltage: 24V⎓

Output Current: Max 6.25A

WiFi Standard: IEEE 802.11b/g/n 2.4GHz

RF: 2.4GHz

Remote Control Distance: 30m

IP Rate: IP67

ta:40℃     tc:85℃

• Built-in power adapter

• 2.4GHz RF remote controllable

• Smartphone app controllable

• Brightness adjustable

• Output Voltage 24V⎓

Read moreShow less
£108.00 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Close
Condition
New
Reference:
P2327
Brand:
Love1
Add to wishlist
Add to compare0
Description

MiBoxer 150W single colour dimming LED driver (WiFi+2.4G) WP1-P150V24

Dimmer with LED power supply (WiFi/BT/Tuya) - Mono - 24V 150W - 230V - WP1-P150V24, is a device that allows you to power low-voltage LED lighting (e.g. LED MONO strip) with access to dimming or brightening the connected light source LED. This is because the WP1-P150V24 device fulfils the role of both a constant voltage power supply with a rated voltage of 24V and an output power of 150W, as well as an LED dimmer that allows for smooth control of the brightness of, for example, a connected LED strip using a signal based on PWM control. Access to the WP1-150V24 power supply is carried out through the Tuya Smart mobile application, which uses wireless connections via a WiFi network or Bluetooth technologies and a built-in radio module enabling remote communication based on the 2.4GHz frequency. The range of such communication is 30 meters in the open area, but this signal can be retransmitted to another device, provided that it is within the range mentioned above. The device works with MiBoxer products.

The voltage power supply with LED dimmer also has unique features such as the ability to change the PWM frequency between high 8kHz and low 500Hz, which affects the functioning of the device. In addition, it has a dedicated input for the bell button, which performs the same work as the radio remote control or LED wall panel, allowing you to dim/brighten or turn on/off the LED lighting without the need for additional control devices. The power supply with dimmer WP1-P150V24 also has a compact casing with an IP67 degree of protection.

Application for installation:

MONO - single colour (monochrome)

Features of the dimmer with power supply - WP1-P150V24

It performs the functions of two devices - a power supply and a dimmer

Designed for monochrome LED installations

Power supply directly from the 230V mains

The output voltage of 24V

Maximum output power 150W

One channel to use

Control using the Tuya Smart application

Connectivity using WiFi/Bluetooth technologies

Remote communication based on the 2.4GHz frequency

Communication at the level of 30 meters in the open area

The ability to pass the signal to another device

Cooperation with radio remote controls and wall panels

Control via voice commands (additional option)

Additional input for the bell button

Hermetic housing with IP67 protection

Built-in diode signalling the operation of the device

Cooled by free air circulation

High quality of the components used

Small size with holes for permanent mounting

Read moreShow less
Product Details
P2327

Data sheet

Light Colour
MONO
Warranty
2 years
Pack Quantity
1
Packaging
Original retail colour packaging
Country/Region Of Manufacture
China
Output Voltage
24V

Specific References

EAN13
6970602182784
MPN
WP1-P150V24
