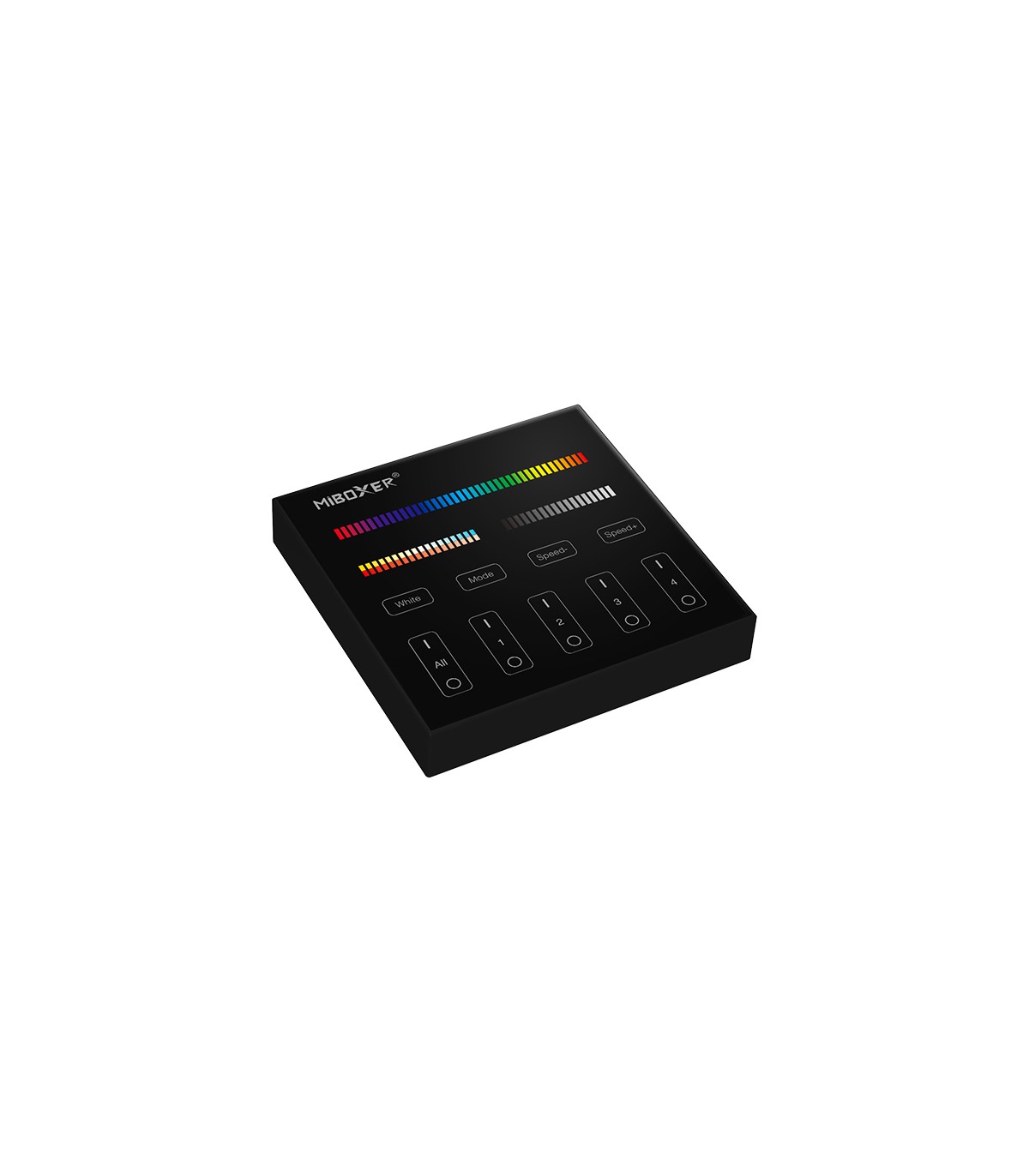

Product Name: 4-Zone Panel Remote (RGB+CCT)
Model No.: B4-B
Voltage: 3V (2*AAA Battery)
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 20uA
Working Temperature: -10 -40℃
Panel Size: 86*86*16mm
New black wall-mounted RGB+CCT controller - MiBoxer, is a wireless wall panel for brightness management with the ability to control a given RGB colour and CCT colour temperature for multi-colour devices with varying colour temperatures eg. RGB+CCT receiver/bulb or devices included in the compatible MiBoxer products tab. The controller allows individual access for each zone, which can be controlled by a glass wall panel.
Application for installation: RGB+CCT - multicolour with variable colour temperature
Characteristic features of the Mi-Light wall panel - B4-B
Switching on or off the connected LED illumination
Enables and disables all zones simultaneously
Dimming and brightening of the connected LED lighting
Dimming and brightening of all zones simultaneously
Achieve monochromatic colour
Colour capability for individual/all zones
Colour temperature control for individual/all zones
Available dynamic programs to change the characteristics of the work
Change the speed of your dynamic programs
Features of the wall panel Mi-Light - B4-B
Four zones to use
Powered by two AAA batteries
Radio range up to 30 meters
A glass panel on the wall
Possibility of extension of the installation
Sound signalling
Gently illuminates the button for lighting
Construction suitable for surface mounting
24 months warranty
The wireless connectivity of the wall panel enables wireless control of up to 30 meters in open areas. Communication-based on 2.4GHz frequency provides stable and synchronized operation of the LED lighting used.
Table 1. Table of dynamic programs - Mi-Light 4 zone RGB+CCT smart panel remote controller B4
| Number | Function | Speed change | Brightness change | Saturation change |
|---|---|---|---|---|
| 1 | Flashing orange colour | Yes | Yes | No |
| 2 | Smooth transition between all colours | Yes | Yes | Yes (saturation) |
| 3 | Smooth transition between warm and cold colours | Yes | Yes | No |
| 4 | Pulsating transition between three colours and warm white and cold white | Yes | Yes | No |
| 5 | Jump between six colours and white warm and cold | Yes | Yes | No |
| 6 | Jump between random colour sequences | Yes | Yes | No |
| 7 | Red flashing with three flashes | Yes | Yes | No |
| 8 | Blue blinking ended with three flashes | Yes | Yes | No |
| 9 | Green flashes with three flashes | Yes | Yes | No |
MiBoxer black 4-zone RGB+CCT panel remote B4-B specification
| Application | For multi-colour installations with variable colour temperature RGB+CCT |
| Maximum output current | Dependent on the receiver used |
| Powered by | 2 x 1.5V AAA batteries (not included) |
| The number of zones/channels supported | 1 to 4 |
| Modulation method | GFSK |
| Controlling method | Radio |
| Controlling range | up to 30 meters in an open area |
| Model number | B4-B |
| Control frequency | 2400-2483.5MHz |
| Power consumption in operating mode | 6dBm |
| Power consumption in standby mode | 20uA |
| Working temperature | -20 – 60℃ |
| Type of installation | Surface |
| Colour | Black |
| Product compatibility | See the compatible MiBoxer products tab |
| Ingress Protection | IP20 |
| Dimensions[mm] | L86 x W86 x H20 |
| Certification | RoHS, CE, UKCA |
| Warranty | 2 years |
MiBoxer black 4-zone RGB+CCT panel remote B4-B package includes
1 x Mi-Light 4-zone black wall panel B4-B in a retail box
1 x Plastic wall mount
1 x User Manual (English)
