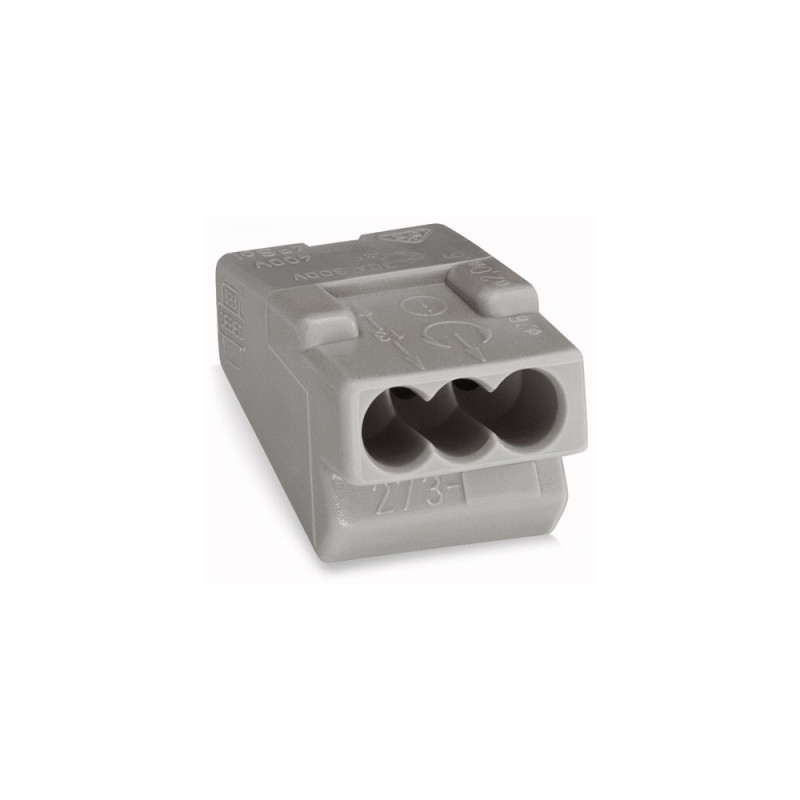

WAGO 273-403 3-way push-wire connector for junction boxes 32A

Name Value Unit
Safety information 1 In grounded power lines
Packaging type BOX
Ratings per IEC/EN 60664-1
Rated voltage (II / 2) [V] 400 V
Rated impulse voltage (II / 2) [kV] 4 kV
Rated current [A] 32 A
Legend (ratings) (II / 2) ≙ Overvoltage category II / Pollution degree 2
Type of wiring Side-entry wiring
Total number of connection points 3
Total number of potentials 1
Connection technology PUSH WIRE®
Actuation type Push-in
Connectable conductor materials Copper
Solid conductor 1.5 … 4 mm² / 14 … 10 AWG
Strip length 12 … 15 mm / 0.47 … 0.59 Inch
Width 17.5 mm / 0.689 Inch
Height 15.5 mm / 0.61 Inch
Depth 23.5 mm / 0.925 Inch
Color gray
Flammability class per UL94 V2
Fire load [MJ] 0.085 MJ
Weight [g] 5.259 g
Ambient temperature (operation) 60 °C
Continuous operating temperature up to [°C] 105 °C

Handling, 273 Series
1. Strip insulation
+
1. Strip insulation
Strip solid conductor to 10–13 mm (0.39–0.51 in).
2. Connect
+
2. Connect
Push stripped solid conductors in up to the backstop.
3. Loosen
+
3. Loosen
Hold conductor and twist alternately left and right while pulling the connector.
