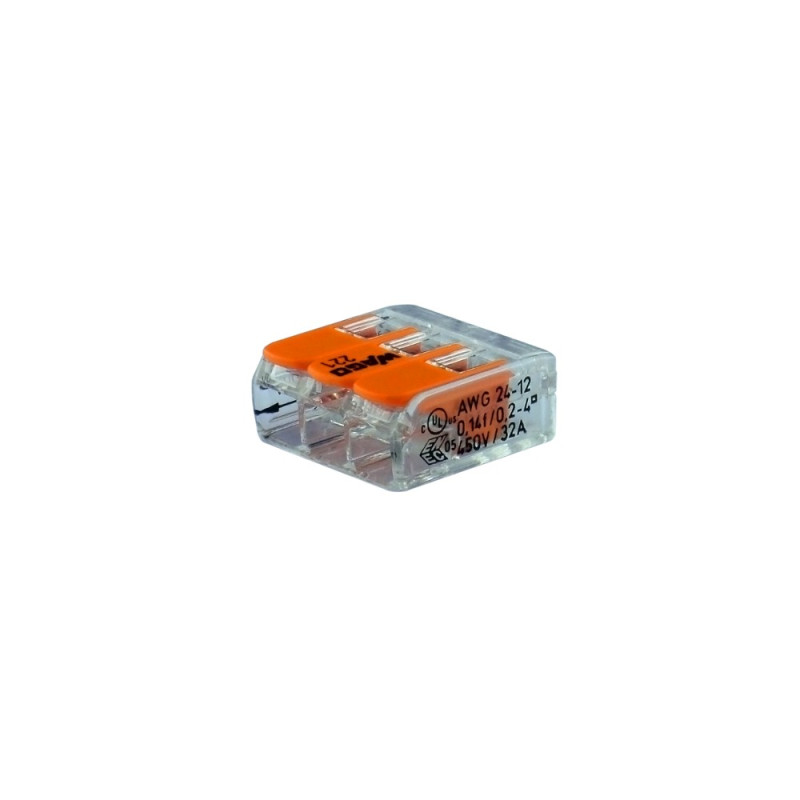

WAGO 221-413 3-way lever connector 32A
Officially released in September 2015 the WAGO 221 Series compact lever connector allows fast wiring for solid, stranded & flexible conductors safely due to CAGE CLAMP connection
Might be used for 12V 24V as well as 240V and 480V installation. Up to 4mm², 32A rating, 2, 3 & 5 conductors Continuous service temp: max 105°C Suitable for all wire types Compact connector with levers Solid conductor size 0,2 mm² to 4 mm² Stranded conductor size 0,2 mm² to 4 mm² Flexible conductor size 0,14 mm² to 4 mm² Number of connection points: 2, 3, 5 Maximum Voltage EN 450 V Maximum Isolation 4 kV Pollution degree 2* 100% Transparent housing New "Smaller" Connector Rated 32A 600v AC up to 4.0mm cable BS compliant Developed to meet and exceed all European wiring standards
The new 221 Series Lever connectors have the same high quality as the original 222 series lever connectors Designed to be extremely compact, and easier to use.
Wago connectors are the perfect solution for a quick and easy connection that every electrician must have. We encourage you to have a look at other Wago connectors
WAGO 221-413 3-way lever connector 32A dimensions:
3-way: 221-413 - 18.7 x 18.6 x 8.3mm
WAGO 221-413 3-way lever connector 32A specification
| Name | Value |
| Packaging type | N/A |
| Ratings per | EN 60664 |
| Rated voltage (II / 2) [V] | 450 |
| Rated impulse voltage (II / 2) [kV] | 4 |
| Rated current [A] | 32 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Connection technology | CAGE CLAMP® |
| Number of connection points connector | 3 |
| Actuation type | Operating lever |
| Connectable conductor materials | Copper |
| Nominal cross section | 4 mm² |
| Solid conductor | 0.2 … 4 mm² / 24 … 12 AWG |
| Stranded conductor | 0.2 … 4 mm² / 24 … 12 AWG |
| Fine-stranded conductor | 0.14 … 4 mm² / 24 … 12 AWG |
| Strip length | 11 mm / 0.43 Inch |
| Width | 18.7 mm / 0.736 Inch |
| Height | 8.3 mm / 0.327 Inch |
| Depth | 18.6 mm / 0.732 Inch |
| Total number of connection points | 3 |
| Safety information 1 | In grounded power lines |
| Colour | transparent |
| Flammability class per UL94 | V2 |
| RoHS Conformity | 1 |
| Weight [g] | 2.527 |
| Continuous operating temperature up to [°C] | 105 |
WAGO 221-413 3-way lever connector 32A package includes
1 x WAGO 221 series lever connector in a plastic bag without instructions
