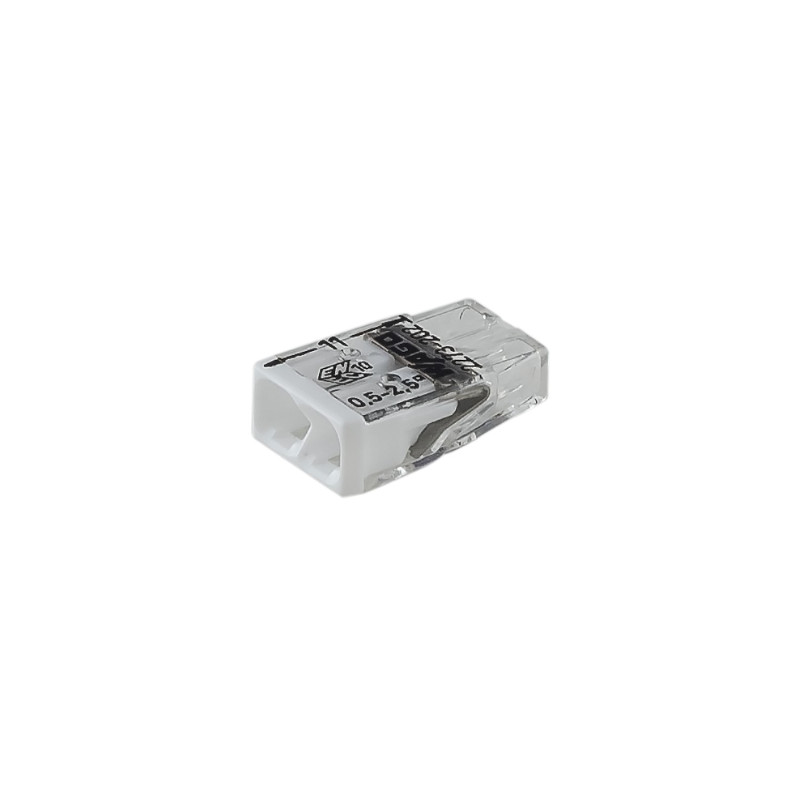

WAGO 2273-202 2-way push wire connector 24A. COMPACT PUSH WIRE® connector for junction boxes; 2-conductor terminal block; transparent housing; white cover
Security policyYour data is encrypted and GDPR compliant for safe, secure shopping.
Delivery policyFast, reliable shipping with tracking. Orders dispatched quickly and securely.
Return policyHassle-free 30-day returns. Contact us for a quick and simple process.
WAGO 2273-202 2-way push wire connector 24A
It is a new technology wire connector designed by WAGO for extremely quick and easy installation to will significantly increase the efficiency of your work. Simply push the stripped conductor into the connector hole to secure the connection. The transparent body of the connector provides a visible indication of a secure connection. All the 2273 connectors have a test point at the back of the housing. Designed to be reused and not only the installation is easy and quick. If you need to remove the wires just simply pull back on the conductor whilst rotating the connector to release the wires. The small size of the connectors allows minimizing the space requirements in the socket while ensuring maximum convenience, ease of use, safety and reliability. The individually combinable connection cross-sections from 0.5 to 2.5 mm², nominal current up to 24 A and clear, unique colour coding for quick access provide you with perfect installation conditions. Have a look at our range of WAGO connectors, if there is anything else from WAGO you would like us to distribute just contact us.
WAGO 2273-202 2-way push wire connector 24A specification
| Name | Value |
| Safety information 1 | In grounded power lines |
| Packaging type | BOX |
| Ratings per | IEC/EN 60664-1 |
| Rated voltage (II / 2) [V] | 450 |
| Rated impulse voltage (II / 2) [kV] | 4 |
| Rated current [A] | 24 |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Type of wiring | Side-entry wiring |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Connection technology | PUSH WIRE® |
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 2.5 mm² / 18 … 14 AWG |
| Strip length | 11 mm / 0.43 Inch |
| Width | 10 mm / 0.394 Inch |
| Height | 5.8 mm / 0.228 Inch |
| Depth | 16.7 mm / 0.657 Inch |
| Colour | white |
| Cover colour | white |
| Flammability class per UL94 | V2 |
| Fire load [MJ] | 0.014 |
| Weight [g] | 0.713 |
| Ambient temperature (operation) | 60 °C |
| Continuous operating temperature up to [°C] | 105 |
| T-Marking per EN 60998 | T60 |
| Main product function | Steckklemme |
| Product type | Splicing connectors |
WAGO 2273-202 2-way push wire connector 24A package includes
1 x WAGO 2273 series compact push wire terminal in a plastic bag without instructions
Data sheet
