WAGO 2273-208 8-way push wire connector 24A

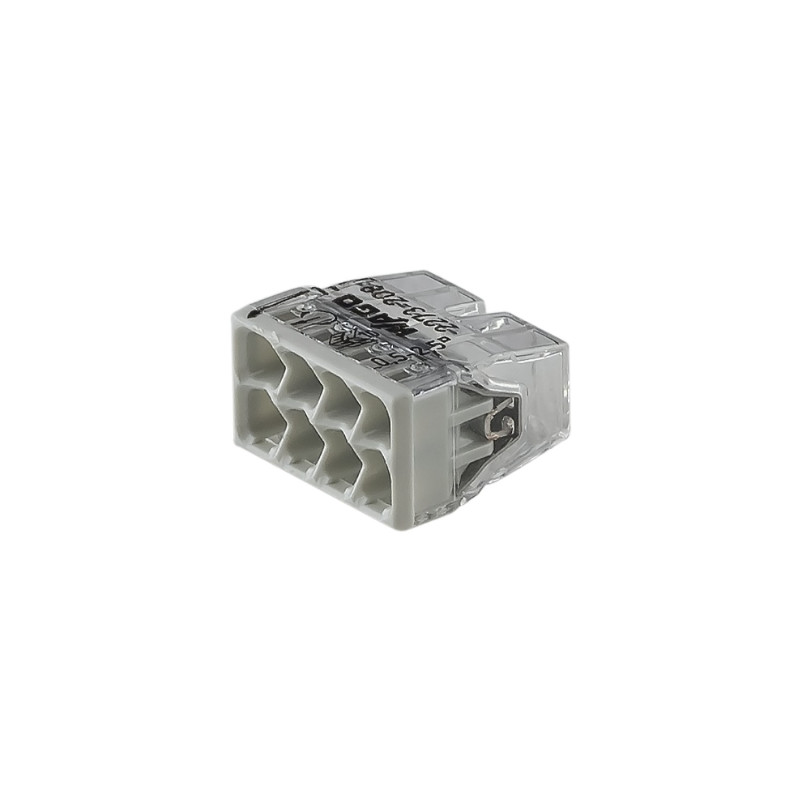

WAGO 2273-208 8-Way Push Wire Connector (24A) — Compact, Fast & Reliable Mains Connections

Speed up wiring in junction boxes and fixtures with the WAGO 2273-208 compact 8-way push wire connector. Designed for quick, tool-free terminations of solid copper conductors (0.5–2.5 mm²), it delivers a 24 A rating, clear visual confirmation through a transparent housing, and a built-in test port for safe verification. Its ultra-compact footprint frees up valuable space, while reuse capability supports tidy alterations and fault-finding.

Key benefits

• Push-in, tool-free terminations — strip 11 mm and insert for a secure, gas-tight connection.
• Space-saving body — compact dimensions make it ideal for crowded junction boxes.
• Clear housing & rear test point — easy visual checks and fast continuity testing.
• Reusable — remove conductors by pulling the wire while gently twisting the connector.
• Universal colour coding — quick identification across the 2273 series.
• Up to 24 A, 450 V — suitable for grounded power lines and lighting circuits (IP20, indoor).

Typical applications

• Junction box terminations and loop-in/loop-out circuits
• Lighting upgrades and fixture replacement
• Ring and radial final circuits (observe local regs and current-carrying capacity)
• Domestic, commercial and light industrial installs

How to use

1. Isolate the supply and verify dead.
2. Strip each solid copper conductor to 11 mm.
3. Push the conductor fully into the side-entry port; confirm visibly through the clear body.
4. Test via the rear test point as required.
5. To remove, pull back on the wire while gently rotating the connector.

Technical specification — WAGO 2273-208 8-Way Push Wire Connector

Good to know

• Use with solid conductors; for fine-stranded conductors, choose the appropriate WAGO lever-type series.
• Always adhere to local wiring regulations and current-carrying capacity for the installation method.
• For neat mains cabling or inline switching, see our round footswitch.

Package includes

1 × WAGO 2273-208 compact 8-way push wire terminal (bagged; instructions not included).
