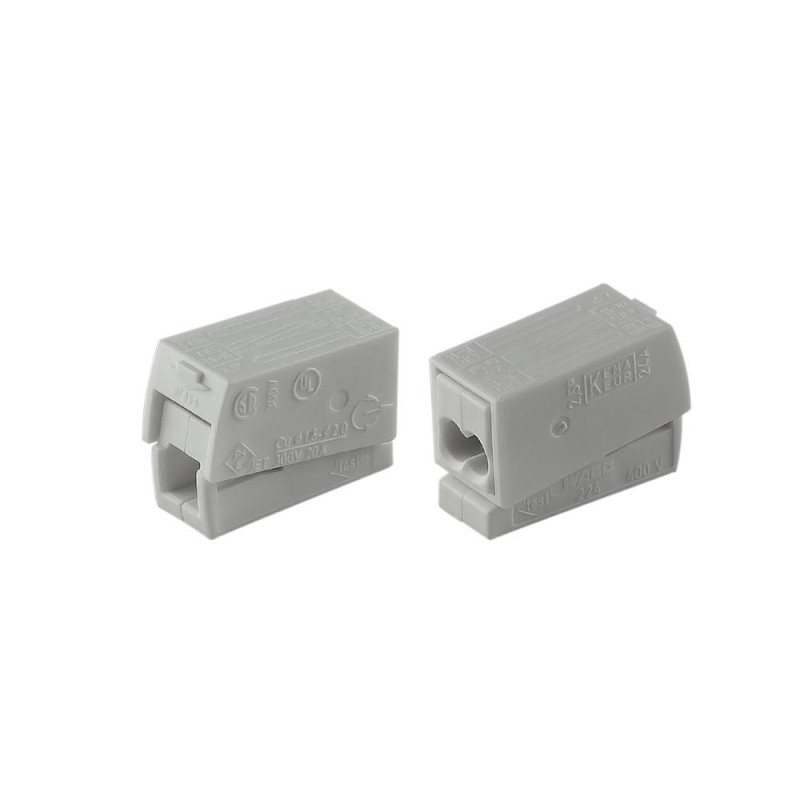

WAGO 224-112 3-way lighting connector
WAGO 224-112 3-way lighting connector. 2-conductor lighting connector; Standard version; Continuous service temperature 105°C
Security policyYour data is encrypted and GDPR compliant for safe, secure shopping.
Delivery policyFast, reliable shipping with tracking. Orders dispatched quickly and securely.
Return policyHassle-free 30-day returns. Contact us for a quick and simple process.
Description
WAGO 224-112 3-way lighting connector
Lighting connector from series 224 for connecting solid wires with wire cables.
Series 224 is a great way to connect solid and wire cables. The program includes a lighting connector (for connecting luminaires), a 2-wire lighting connector (for connecting luminaires with a chain connection from the installation side) and a service connector (for connecting solid and stranded cables). On the basis of approvals granted in accordance with VDE 60998, lighting fittings from the 224 series, as insulated connectors for electrical installations, can be used to connect single-wire cables and cables in buildings. Typical application areas are blind drives, roller blinds, awnings, window and bathroom fans, control of heating boilers, the connection of electrical devices using flexible hoses, circulation pumps and others.
Cost-effectiveness due to a fast and direct installation of cables from the installation side through a plug-in, quick and easy installation of cable wires from the side of the luminaire by compressing the connector, quick and easy measurement thanks to the presence of a special measuring hole
Security due to the use of a reliable clamping technique adapted to the type of wires used. Eliminating the necessity of using tools - an advantage important especially when installing in hard-to-reach places. In some embodiments, the use of materials resistant to prolonged exposure to high temperatures.
WAGO 224-112 3-way lighting connector specification
| Name | Value |
| Safety information 1 | In grounded power lines |
| Packaging type | BOX |
| Rated voltage (II / 2) [V] | 400 |
| Rated impulse voltage (II / 2) [kV] | 4 |
| Rated current [A] | 24 |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Type of wiring | Side-entry wiring |
| Total number of connection points | 3 |
| Total number of potentials | 1 |
| Connection type (1) | Installation side: |
| Connection technology | PUSH WIRE® |
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Solid conductor | 1 … 2.5 mm² / 14 … 12 AWG |
| Strip length | 9 … 11 mm / 0.35 … 0.43 Inch |
| Connection type (2) | Lighting side: |
| Connection technology 2 | CAGE CLAMP® |
| Number of connection points (connection type 2) | 1 |
| Solid conductor (2) | 0.5 … 2.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor (2) | 0.5 … 2.5 mm² / 20 … 16 AWG |
| Width | 9.5 mm / 0.374 Inch |
| Height | 15.5 mm / 0.61 Inch |
| Depth | 20.5 mm / 0.807 Inch |
| Color | white |
| Fire load [MJ] | 0.046 |
| Weight [g] | 2.066 |
| Continuous operating temperature up to [°C] | 105 |
| Main product function | Lighting connector |
| Product type | Splicing connectors |
Product Details
P1115
New
Data sheet
- Ingress Protection
- IP20
- Model Number
- 224-112
- Warranty
- 2 years
- Pack Quantity
- 1
- Packaging
- N/A
- Country/Region Of Manufacture
- Germany
- Type Of Material
- Plastic
Specific References
- EAN13
- 4044918583596
- MPN
- P1115
