Product Name: Waterproof 5-in-1 LED Controller
Model No.: LS2-WP
Input Voltage: DC12V~36V
Output: 6A/Channel
Total Output Max: 20A
Connection: Common anode
RF: 2.4GHz
Remote Control Distance: 30m
Working Temperature: -20~45℃
IP Rate: IP67
• 2.4G RF Remote controllable
• 16 Million colours to choose
• Colour temperature adjustable
• Brightness and saturation controllable
• Control distance: 30m
• Switching 5 output modes via one button (Single colour/Dual white/RGB/RGBW/RGB+CCT)

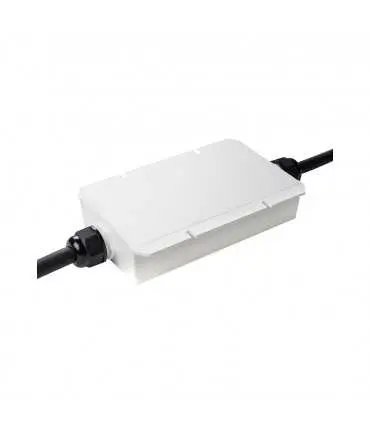

MiBoxer waterproof 5-in-1 LED controller LS2-WP
LED 5in1 receiver IP67 - MONO/CCT/RGB/RGB+CCT - 12-36V DC 20A - LS2-WP, for a product that allows you to control LED lighting. The device has been designed in a way that allows it to be used in various LED installations. Depending on the operating mode, the device can operate with monochrome and multicolour lighting (RGB/RGB+W and RGB+CCT). Communication takes place via a radio route and the basic radio range that is obtained at 30 meters in an open area, with the potential of access to the network - retransmissions. Compared to the LS2 receiver, it has a higher current carrying capacity of 20A and increased resistance to moisture, thanks to the hermetic housing with IP67 tightness class. For compatible remote controls, please see the compatible MiBoxer products tab.
One of the most important features of this receiver is the possibility of using it for any installation (MONO/CCT/RGB/RGBW/RGB+CCT) with the use of one remote control or a wall panel. Previous in the case of mixed installations in rooms, e.g. monochrome and RGB, belonging to the appropriate combinations for each of them. The driver application with the LS2-WP receiver allows you to control each installation and optionally program the LS2-WP receiver.
Application for installation:
MONO - single-colour
CCT - with variable colour temperature
RGB - multicoloured
RGB+W - multicoloured with the addition of white
RGB+CCT - multicoloured with variable colour temperature
Features of the LS2-WP - Mi-Light receiver
Application for MONO/CCT/RGB/RGB+W/RGB+CCT installations
Extension of the radio signal (signal retransmission)
Common emergency synchronization of production up in the plant
Wide range of input/output voltage, range 12-36V DC.
Wireless communication with the remote control
The maximum current carrying capacity of 20A
Hermetic housing of the receiver IP67
Cooperation with the Wi-Fi module (additional option)
Possibility to create a very large LED installation
The innovative solution of the radio receiver is cooperation with the modern Amazon Echo and Google Home voice systems. The intelligent system connects to our application, constituting an additional pillar of control for the Alexa voice assistant or Google Assistant, which, using voice commands, allows you to control, for example, the brightness or colour intensity in given rooms. To take full advantage of this possibility, you must purchase an additional WL-Box1 module, which will also enable wireless control using our Wi-Fi network.
Compatible remotes
MiBoxer waterproof 5-in-1 LED controller LS2-WP specification
Type | Universal LED strip controller |
Rated power | 240W/480W/720W |
Rated voltage | 12V/24V/36V DC |
Light colour | MONO, CCT, RGB, RGBW, RGB+CCT |
Output | 6A per channel |
Total output | 20A |
Communication Mode: | WiFi-IEEE 802.11b/g/n 2.4GHz |
Controlling | using the Mi-Light/MiBoxer remote control (see compatible MiBoxer products) |
The method of communication with the remote control | 2.4GHz radio |
The range of communication | up to 30 meters in the open area |
Model number | LS2-WP |
Voice control | Amazon Alexa, Google Assistant (WL-Box1 is required) |
Cooling | free air |
Working temperature | -20~45℃ |
Protective quick | Yes (plastic) |
Level of security | IP67 |
Size | 185 x 87 x 31mm |
Declarations/Certificates | RoHS, CE, UKCA |
Warranty | 24 months |
MiBoxer waterproof 5-in-1 LED controller LS2-WP package includes
1 x waterproof 5-in-1 LED controller in a retail packaging
1 x user manual
Data sheet
- Rated Power
- 240W
480W
720W
- Light Colour
- CCT
MONO
RGB
RGB+CCT
RGBW
- Rated Voltage
- 12V
24V
36V
- Features
- Dimmable
- Ingress Protection
- IP67
- Model Number
- LS2-WP
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Light Source
- LED
- Communication Range
- 30m
- Communication Method
- Radio
- Operating Temperature
- -20 – 60℃
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Type Of Material
- Plastic
- Colour
- White
- Control Frequency
- 2.4GHz
- Current Type
- DC
- Class
- Lighting Remote & Control
- Unit Type
- Unit
- Output Voltage
- 12V
24V
36V
- Installation Area
- Indoor & Outdoor
- Control Style
- App Control
Remote Control
- Item Length
- 185mm
- Item Width
- 87mm
- Item Weight
- 0.318kg
- Item Height
- 31mm
- Mounting
- Free Standing
- Wholesale Box Quantity
- 30
