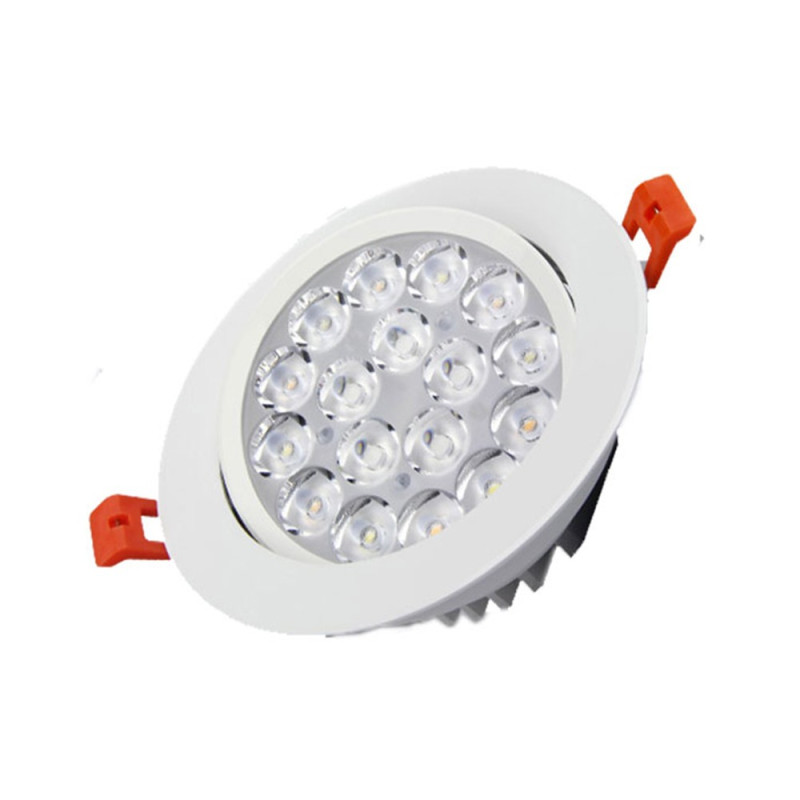

Product Name: 9W RGB+CCT LED Ceiling Spotlight
Model No.: FUT062
Power: 9W
Input Voltage: AC100~240V 50/60Hz
Colour Temperature: 2700K~6500K
Luminous Flux: 780LM
Light Efficiency: 85LM/W
CRI: >80
PF: >0.5
Lifespan: 50000 hours
Beam Angle: 15°
Control Distance:30m
Hole Size: ø120~125mm
Material: Aluminium
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Saturation adjustable
• Remote Control Distance 30m
• Signal transmitting & Modes synchronization
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
The connectivity of the Mi-Light Downlight Series is characterized by wireless communication via radio via a remote control unit or wall panel. The range of this connection is 30 meters in the open area, provided that it is not exposed to various types of interference. Products that are compatible with the FUT062 receiver can be found in the compatible MiBoxer products tab.
Wi-Fi capability To access the control over the Wi-Fi network you need to purchase the appropriate module.

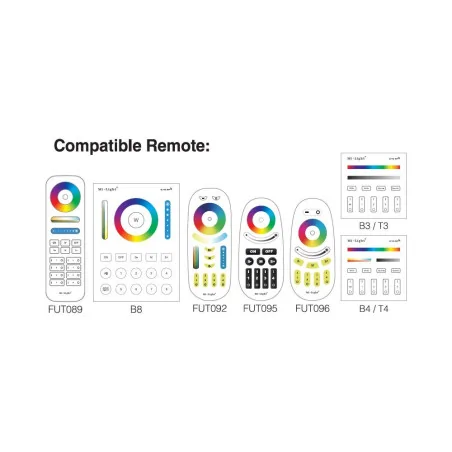

Symbol | Name |
---|---|
FUT092 | Mi-Light 2.4GHz 4-zone RGB+CCT remote controller FUT092 |
FUT089 | Mi-Light 8-zone RGB+CCT remote controller FUT089 |
T4 | Mi-Light 4-zone RGB+CCT smart panel remote controller T4 |
B4 | Mi-Light 4 zone RGB+CCT smart panel remote controller B4 |
B8 | Mi-Light 8-zone smart panel remote controller B8 |
B8A | Adapter for wall panel FUTB8 - 230VAC |
IBOX1 | Mi-Light WiFi iBox smart light iBox1 |
IBOX2 | Mi-Light WiFi controller iBox2 |
The construction of the Mi-Light series allows full access to the colour palette of up to 16 million colours. Obtaining a given shade of colour depends on the precision of the control, which is usually done with tactile transmitters. The colours of the device are colourful and pleasant, and the effective colour rendering ratio allows you to fully enjoy the colourful mood of the room together with the Mi-Light series products.
The characteristic feature of this luminaire is the narrow angle of illumination, thus gaining the spotlighting characteristics of the various types of objects. Its movable ring, which can be set in the range of 30 degrees, allows directing the light to a given object, eg in different types of showcases or exhibitions.
The wireless radio through which the device communicates provides a full palette of control possibilities. Depending on the product, control can be carried out with the help of many available 2.4GHz radio transmitters. This basic form of communication provides stable LED lighting control within 30 meters of the open area. In addition, most of the products can be expanded to include an alternative form of control through the use of a Wi-Fi module that enables the integration of our mobile application with a compatible Mi-Light device. The transmitters that work with your device can be seen above in the compatible MiBoxer products tab.

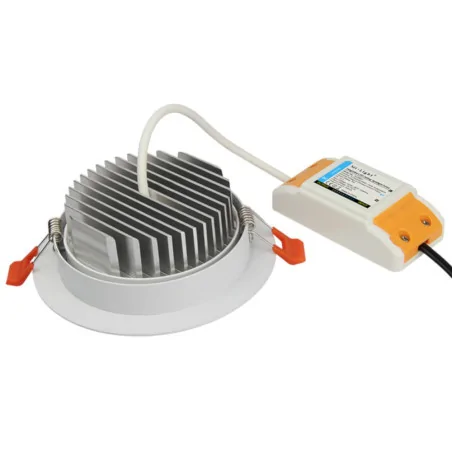

Housing made of aluminium allows for high efficiency in the evacuation of accumulated heat during operation. This solution provides increased SMD life, making the device much more practical.
[ph-product-cms id="3"]
Rated voltage | 86-265V AC 50 / 60Hz |
Rated power | 9W |
The colour temperature of the light | warm white 2700K - cold white 6500K |
Energy consumption | 9kWh/1000h |
Rated luminous flux | 780lm |
Power factor | >0.5 |
Beam angle | 15° |
Light adjustment range | 30° |
Colour rendering index | >80 |
Type of LED diodes (y) | SMD |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
The way of control | radio or Wi-Fi (seethe compatible MiBoxer products tab) |
The range of communication | up to 30 meters in the open area |
Material | aluminium |
Dimensions/diameter | Φ135mm |
Height | 43mm |
Mounting hole | ø120 ~ 125mm |
Declarations/Certificates: | RoHS, CE, UKCA |
Warranty period | 24 months |
1 x Adjustable LED downlight
Data sheet
User manual for RGB+CCT LED ceiling spotlight from Mi-Light brand.
