Product Name: 10W RGB+CCT LED Floodlight
Model No.: FUTT06
Power: 10W
White LED Power: 10W
RGB LED Power: 7.5W
Voltage: DC 24V
Kelvin: 2700-6500K
Luminous Flux: 1150LM
Luminous Efficiency: 115LM/W
Standby Power Consumption：0.5W
CRI: >80
PF: >0.5
Beam Angle: 160°
IP Rate: IP65
Size: 107*32*166mm
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• Adjust saturation
• Control Distance 30m
• Signal transmitting & Modes synchronization
RGB+CCT 10W 24V DC LED floodlight is a low-voltage multi-coloured LED floodlight with the ability to change the colour temperature using the Mi-Light controller (radio remote control, wall panel or Wi-Fi module). LEDs of LED floodlights were based on SMD diodes emitting a luminous flux of 1150lm. This floodlight is ideally suited to the outdoor lighting of various architectural objects, parks or public places while giving a decorative accent to the illuminated space. Works with Mi-Light series controllers.
The remote control or wall panel need to be purchased separately. For compatible devices please see the compatible MiBoxer products tab.
The casing is made of aluminium alloy
Obtaining any colour from the RGB colour palette
Monochrome colour - warm and cold available at any time
Designed for working at low voltage DC 24V
Radio communication range of 30 meters
Alternative control via Wi-Fi
Retransmission of the received radio signal
Automatic synchronization between devices
Negligible energy release in the form of heat
High luminous efficiency
Low energy consumption
Long life of diodes
Important information

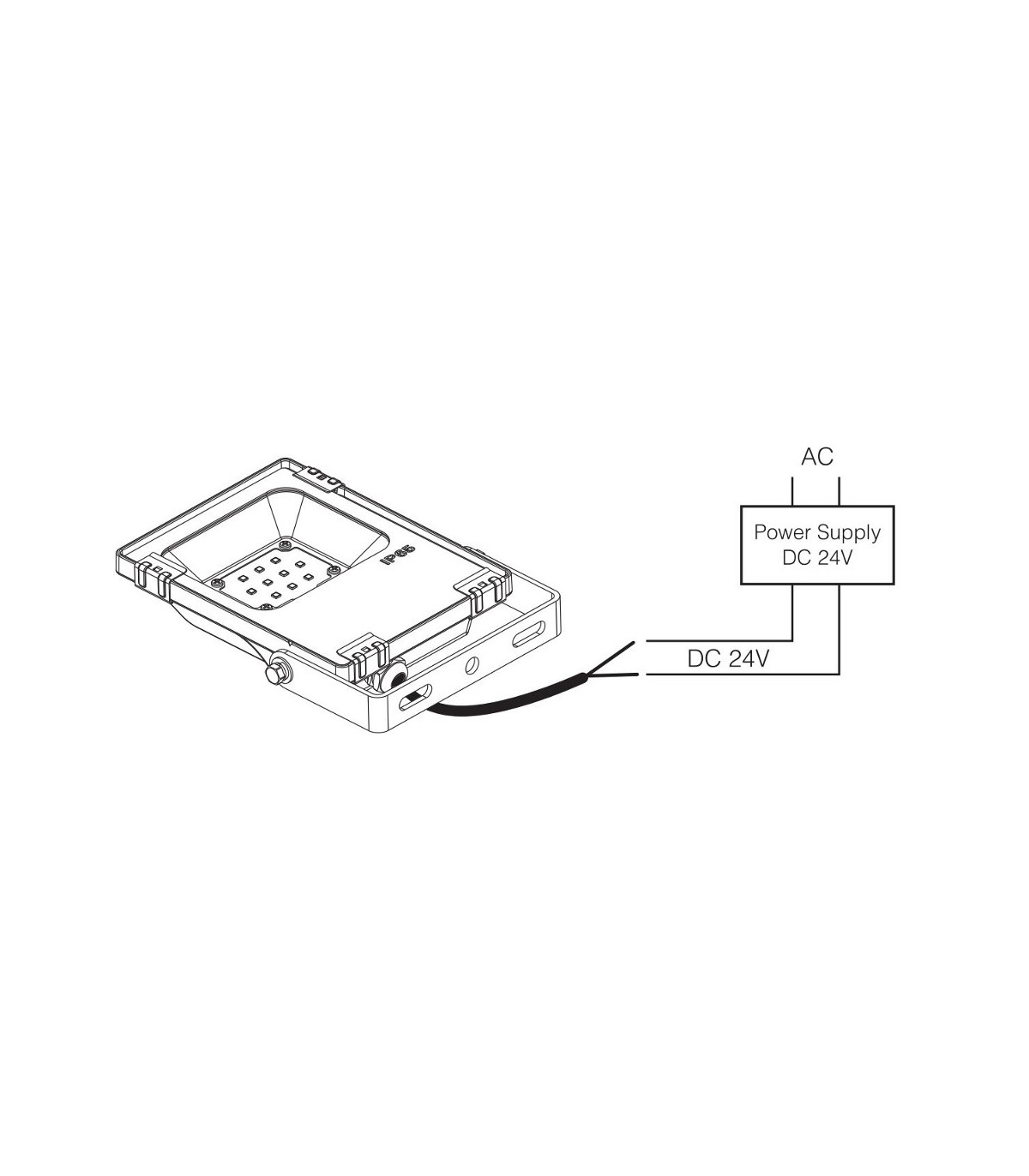

The LED floodlight is designed to work with a standby power supply (see - "Related products") which has a low DC voltage at the output of 24 V. This means that it is necessary to use such a device.
The connection of floodlights from the Mi-Light series is characterized by wireless communication realized via a radio route with a pilot control device or a wall panel. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. The products cooperating with the FUTT06 receiver can be found in the compatible MiBoxer products tab.
Wi-Fi control is possible
In order to gain access to the control via Wi-Fi, you must purchase the appropriate module, which you will find in the "Related Products" tab
When there are more receivers in the installation controlled by one transmitting device, the installation synchronizes together during operation, without causing any delays during operation of the devices. Increasing the radio signal in the installation is possible by using several receivers. These devices are characterized by the transmission of the received signal to the next device, thus increasing the control range of the LED installation (Distance between the receivers cannot be greater than 30m).
Wireless radio route through which devices communicate provides a full range of possibilities related to control. Depending on the product, the control can be carried out with the help of many available radio remote controls operating on the 2.4 GHz frequency. This basic form of communication provides stable control of LED lighting within 30 meters in an open area. In addition, most products can be expanded with an alternative form of control, through the use of a Wi-Fi module, which allows you to connect our mobile application with a compatible device series Mi-Light. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.
Floodlights of this series are characterized by high durability and effective heat dissipation through the use of the material from which they were made. The aluminium fins on the back of the LED floodlight also perform the function of a heat sink, thanks to which the LEDs obtain high durability. The rear handle on the device allows for stable and safe installation of the LED floodlight.
Exterior decorative arrangement of objects using floodlights from the Mi-Light series is possible by applying a hermetic enclosure of the device. The structure of the device constructed in this way allows working in difficult weather conditions that do not expose the device to permanent damage. The degree of hermeticity in the Mi-Light floodlights is achieved at the IP65 level.
| Rated voltage | 24VDC |
| Rated power | 10W |
| The power of the white diode | 10W |
| The power of the RGB diode | 7.5W |
| Rated luminous flux | 1150 lumens |
| The colour temperature of the light | 2700-6500K |
| Power consumption at rest | 0.5W |
| Colour rendering index | ≥80 CRI |
| Dimmable | Yes |
| The possibility of obtaining a colour | Yes |
| Lamp power factor | > 0.5 |
| Nominal radiation angle | 160° |
| Controlling | via radio (wirelessly) |
| Alternative control | via Wi-Fi |
| Cooperating devices | please see the compatible MiBoxer products tab |
| Source of light | SMD diodes |
| Degree of protection IP | IP65 |
| Housing | aluminium |
| Dimensions | 107mm x 32mm x 166mm |
| Declarations | CE, RoHS, UKCA |
| Warranty | 24 months |
1 x 10W 24V RGB+CCT outdoor light in a retail packaging
1 x User manual
