Product Name: 15W RGB+CCT LED Garden Lamp
Model No.: FUTC03
Power: 15W
Input Voltage: AC100~240V 50/60Hz
Colour Temperature: 2700K~6500K
Luminous Flux: 1500LM
Light Efficiency: 100LM/W
CRI: >80
PF: >0.5
Lifespan: 50000 hours
Beam Angle: 15°
Illumination distance: >10m
IP Rate: IP66
Material: Aluminum
• 2.4GHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• IP66 waterproof

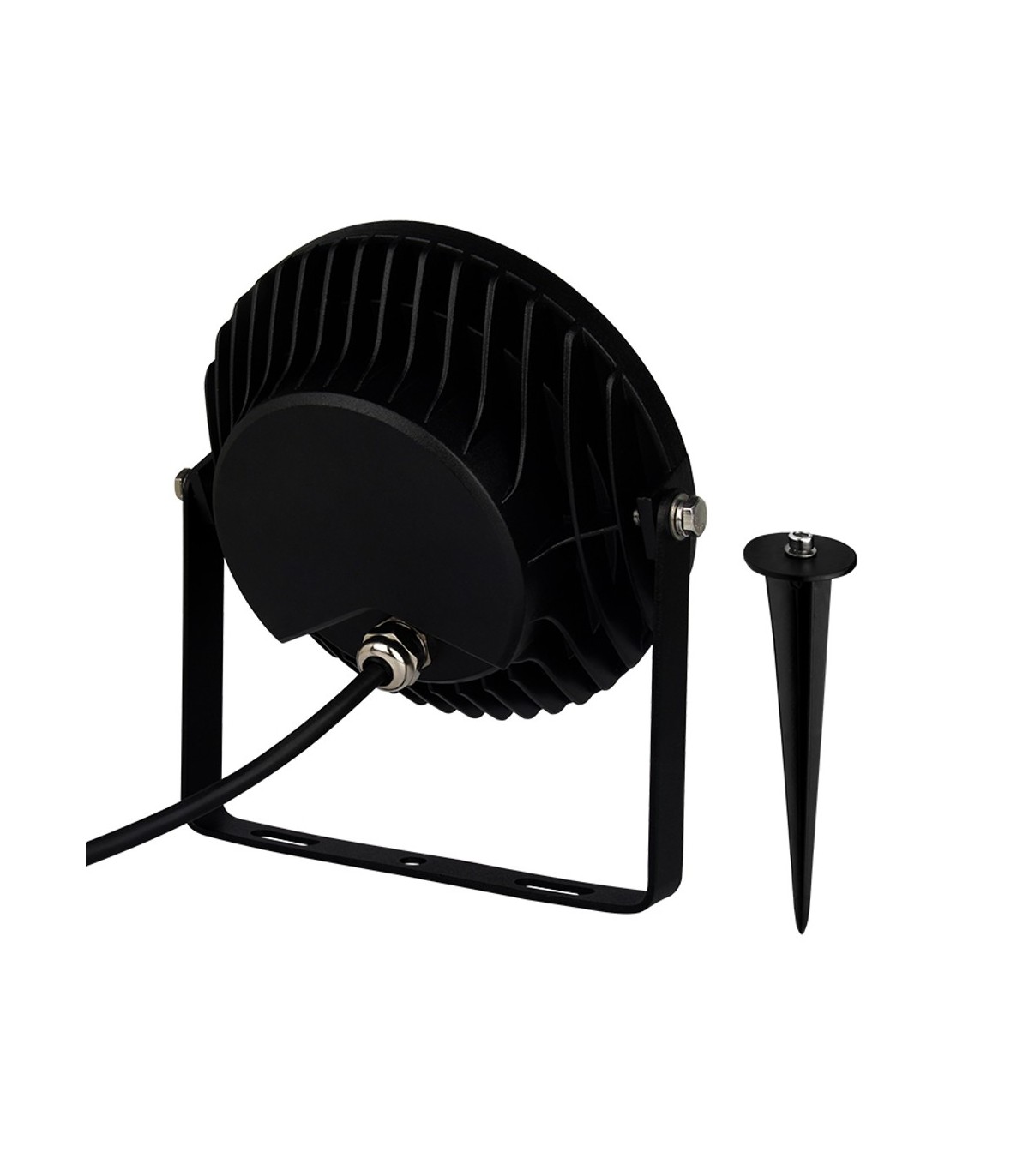

Garden fixture RGB+CCT 15W IP66 - 100~240VAC - grounded - Mi-Light is a garden lamp used for lighting various types of arrangements i.e. lighting of gardens, parks or elevations of buildings. It was designed for installation in soft ground, ie soil, sand or gravel. The garden luminaire has high-quality LED diodes, allowing you to obtain a full range of colours with any colour temperature using the RGB+CCT wireless controller. The narrow-angle of light provides a precise direction of light on a given object while maintaining a long stream of light of 1500lm. Works with Mi-Light series controllers.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
The casing is made of high-quality aluminium
Obtaining any RGB colour
Obtaining any CCT colour temperature
Radio communication range of 30 meters
Alternative control via Wi-Fi
Retransmission of the received radio signal
Automatic synchronization between devices
The mounting bracket that allows installation to the ground
Airtight housing IP66
Narrow angle of illumination and a long stream of light
A diffuser ensures no glare effect
The connectivity of garden luminaires from the Mi-Light series is characterized by wireless communication realized via radio with a remote control device or a wall panel. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. When using more devices (fixtures), we can create LED installations based on an unlimited range, thanks to the technology of signal retransmission. This signal will be automatically synchronized. The condition of such work is to place another receiving device within 30 meters. Products cooperating with the FUTC03 garden luminaire, you will find in the compatible MiBoxer products tab.
Wi-Fi control is possible
In order to gain access to the control via Wi-Fi, you must purchase the appropriate module.
A small angle of light at 15 degrees, provides a long luminous flux. Such focused light has a large range, which oscillates at the edge of 10 meters and a strong luminous flux because the light is not unnecessarily distracting. This construction of a garden fixture allows the creation of interesting light illuminations.
Wireless radio route through which devices communicate provides a full range of possibilities related to control. Depending on the product, the control can be carried out with the help of many available radio remote controls operating on the 2.4 GHz frequency. This basic form of communication provides stable control of LED lighting within 30 meters in an open area. In addition, most products can be expanded with an alternative form of control, through the use of the Wi-Fi module, which allows you to connect our mobile application with a compatible device series Mi-Light. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.
Convenient handle construction ensures fast and stable assembly by driving it into soft ground. The holder itself is attached to the fitting with one mounting screw. The handle is made of high-quality aluminium, which means that it is not exposed to corrosion in such conditions.
The external decorative arrangement of objects using garden luminaires from the Mi-Light series is possible by using a hermetic enclosure of the device. The structure of the device constructed in this way allows working in difficult weather conditions, which do not expose the device to permanent damage. The degree of hermeticity in Mi-Light garden luminaires is achieved at the IP66 level.
Rated voltage | 100 ~ 240VAC / 50 ~ 60Hz |
Rated power | 15W |
Rated luminous flux | 1500lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>80 |
The nominal glow angle | 15° |
Length of luminous flux | > 10m |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | Radio (wirelessly) |
Alternative control | Via Wi-Fi (for Wi-Fi control the WL-Box1 is required) |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 180mm (112,5mm) x 51mm x 170mm (total height, handle height, length, width) |
Dimensions of the mounting bracket | Ø35mm, 161.5mm (diameter, height) |
Lifespan | 50000 hours |
Declarations / Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
Mi-Light 15W RGB+CCT LED garden light FUTC03 package includes
1 x Garden light in a retail packaging
1 x Mounting bracket
1 x Screw
