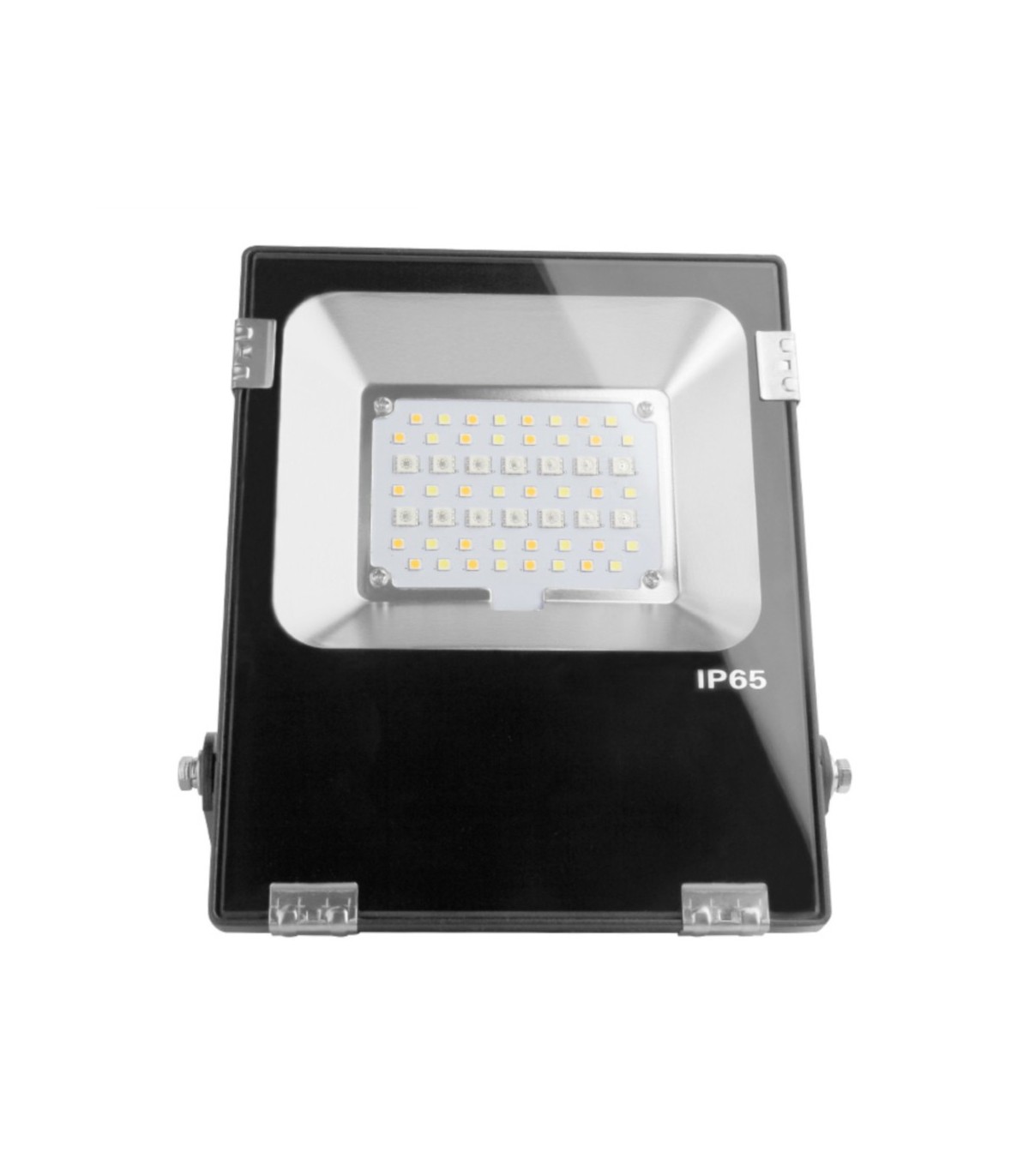

Mi-Light 20W RGB+CCT LED floodlight FUTT04
  • Mi-Light 20W RGB+CCT LED floodlight FUTT04
  • Mi-Light 20W RGB+CCT LED floodlight FUTT04 - size
  • Mi-Light 20W RGB+CCT LED floodlight FUTT04 - connection

Mi-Light 20W RGB+CCT LED floodlight FUTT04

£67.77
£75.30
VAT included

Product Name: 20W RGB+CCT LED Floodlight

Model No: FUTT04

Power: 20W

White LED Power: 20W

RGB LED Power: 20W

Voltage: AC100~240V    50/60Hz

Kelvin: 2700-6500K

Luminous Flux: 1500-1800LM

Luminous Efficiency: 85LM/W

CRI: >80

Beam Angle: 160°

PF: ≥0.9

Material: Aluminum Material

IP Rate:IP65

Size: 152*40*216.5mm

Application Areas: garden, doors, garages

Quantity
In Stock

Mi-Light 20W RGB+CCT LED floodlight FUTT04

Mi-Light 20W RGB+CCT LED floodlight FUTT04 size dimensions technical picture

The RGB+CCT 20W LED floodlight is a multicolour LED floodlight with the ability to change the colour temperature with the Mi-Light (radio remote control, wall panel or Wi-Fi module). LED floodlights are based on SMD LEDs emitting the light output of 1500-1800lm. This illuminator will perfectly suit the outdoor lighting of a variety of architectural objects, parks or public spaces, giving a decorative accent of illuminated space. Works with Mi-Light series controllers.

RGB+CCT LED floodlight 2.4GHz remote and Wi-Fi control 16 million colours brightness and saturation adjustable

The remote control or wall panel must be purchased separately. Compatible products - (see Table 1).

 16 million colours RGB+CCT LED smart floodlight cool white warm white red yellow green blue cold

Features of RGB+CCT - Mi-Light:

Housing made of aluminium alloy

Get any colour from the RGB palette

Monochrome colour - warm and cold available at any time

The radio range is 30 meters

Alternative Wi-Fi control

Transmission of the received radio signal

Automatic synchronization between devices

A small amount of energy in the form of heat

High light efficiency

Low power consumption

Long life of LEDs

app phone control compatible with iBox1 iBox 2 for smart control using smartphone

Communications of the Mi-Light series are characterized by wireless communication via radio via a remote control device or a wall panel. The range of this connection is 30 meters in the open area, provided that it is not exposed to various types of interference. Products that work with the FUTT04 receiver are listed in the following table: 1 or in the "related products" category.

application scene display apply to the lighting place like architectual lighting LED floodlight

garden park application outdoor LED smart RGB+CCT floodlight Mi-Light lighting

square application outdoor LED smart RGB+CCT floodlight MiLight

outdoor advertisement application display lighting smart floodlight 20W

Wi-Fi capability

To access the control over the Wi-Fi network you need to purchase the appropriate module, which you will find in the "Related Products" tab.

 high CRI Philips LED chips IP65 smart lighting floodlight

Table 1. Co-operating devices with LED illuminator - Mi-Light - FUTT04

Product code Product name
FUT092 Mi-Light 2.4GHz 4-zone RGB+CCT remote controller FUT092
FUT089 Mi-Light 8-zone RGB+CCT remote controller FUT089
FUT096 Mi-Light 2.4GHz 4-zone touch RF RGBW remote control FUT096
FUT088 Mi-Light RGB+CCT full touch remote controller FUT088
FUT095 Mi-Light 2.4GHz 4-zone RGBW remote control with button FUT095
B8 Mi-Light 8-zone smart panel remote controller B8
B0 Mi-Light smart panel remote controller B0
B3 Mi-Light 4-zone RGB/RGBW smart panel B3
B4 Mi-Light 4 zone RGB+CCT smart panel remote controller B4
T3 Mi-Light 4-zone RGB/RGBW smart panel remote controller T3
T4 Mi-Light 4-zone RGB+CCT smart panel remote controller T4
IBOX1 Mi-Light WiFi iBox smart light iBox1
IBOX2 Mi-Light WiFi controller iBox2

aluminium body black casing mounting handle for floodlight

 Auto synchronization and retransmission - precision in operation

 automatic commands transmitting function one floodlight can send the commands from the remote control

When more than one receiver is controlled by one transmitter, the installation is synchronized at the same time without any delay in operation. Increasing the radio signal in the installation is possible with the use of several receivers. These devices are characterized by the transmission of the received signal to the next device, thereby increasing the range of control of the LED installation (distance between receivers cannot be more than 30m).

Full control - cooperation with broadcasting equipment

 control never like this convenient two floodlights controlled via remote

The wireless radio through which the device communicates provides a full palette of control possibilities. Depending on the product, control can be carried out with the help of many available 2.4GHz radio transmitters. This basic form of communication provides stable LED lighting control within 30 meters of the open area. In addition, most of the products can be expanded to include an alternative form of control through the use of a Wi-Fi module that enables the integration of our mobile application with a compatible Mi-Light device. The transmitters that work with your device can be seen above in the table or product specifications.

Robust housing - high-temperature discharge

 product detail pisplay professional heat sink design long lifespan

The floodlights of this series are characterized by high durability and effective heat dissipation through the use of the material from which they were made. The aluminium ribs on the back of the LED illuminator also function as a heat sink, making the LEDs highly durable. The rear handle on the unit allows stable and secure mounting of the LED illumination.

High air tightness - ideal for outdoor applications

 IP65 waterproof LED floodlight outdoor lighting

The outdoor decorative arrangement of objects using the Mi-Light floodlights is possible through the use of the hermetic enclosure of the device. The construction of the device makes it possible to work in difficult weather conditions that do not expose the unit to permanent damage. The Mi-Light floodlight is rated at IP65.

alloy waterproof plug stainless steel Mi-Light 20W RGB+CCT LED floodlight FUTT04

Mi-Light 20W RGB+CCT LED floodlight FUTT04 specification

Rated voltage 86-265V AC 50/60Hz
Rated power 20W
The power of the white diodes 20W
The power of the RGB diodes 20W
Rated luminous flux 1500-1800 lumens
The colour temperature of the light 2700-6500K
Power consumption at rest 1,2W
Colour rendering index ≥80 CRI
Dimmable Yes
The possibility of obtaining a colour Yes
Lamp power factor > 0.9
Nominal radiation angle 160°
Controlling via radio (wirelessly)
Alternative control via Wi-Fi
Cooperating devices see "Related products" or "Table No. 1"
Source of light SMD diodes
Degree of protection IP IP65
Housing aluminium
Dimensions 190mm (216,5mm) x 152mm x 40mm
Declarations CE, RoHS
Warranty 24 months

Mi-Light 20W RGB+CCT LED floodlight FUTT04 packaging retail box wholesale carton size

Mi-Light 20W RGB+CCT LED floodlight FUTT04 package contains

1 x 20W RGB+CCT outdoor light

1 x User manuals

P0445
5 Items
2017-12-03

Data sheet

MPN
Does not apply

Specific References

New product

Download

User manual

Download (1.01M)
