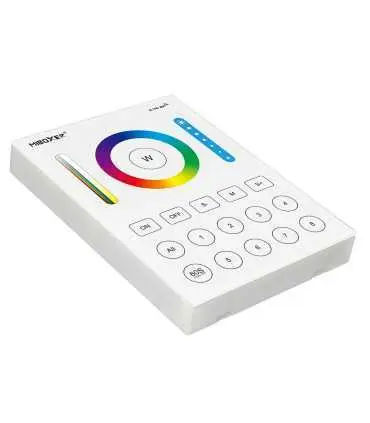

Product Name: 8-Zone Smart Panel Remote Controller
Model No.: B8
Working Temperature: -20 -60℃
Voltage: 3V (2*AAA Battery) / DC3.3V
Transmission Frequency: 2400-2483.5MHz
Modulation Method: GFSK
Transmitting Power: 6dBm
Control Distance: 30m
Standby Power: 30A
Panel Size: 106*146*20mm
• Adopt a high-precision capacitive touch IC
• 2.4G RF wireless transmission technology
• Support MiBoxer/Mi-Light 2.4G series
• Control distance: 30m
• 16 Million colours
• Brightness, colour temperature and Saturation adjustable
Your data is encrypted and GDPR compliant for safe, secure shopping.
Fast, reliable shipping with tracking. Orders dispatched quickly and securely.
Hassle-free 30-day returns. Contact us for a quick and simple process.
Wall-mounted LED controller - 8 zone - RGB+CCT - Mi-Light B8 is a wireless wall panel for managing brightness with the ability to control a given RGB colour and CCT colour temperature for multi-colour devices with varying colour temperatures. RGB+CCT receiver/bulb or devices included in the compatible MiBoxer products tab. The controller allows individual access for each of the eight available zones that can be controlled by the glass wall panel. AAA, but with the use of an additional adapter, it is possible to connect it directly to the 230VAC network. The device is designed for surface mounting or flush mounting when using an adapter.
Receiver (s) need to be purchased separately. For compatible devices please see the compatible MiBoxer products tab.
An important feature of the controller is its ability to be used in most LED installations because the receiver can be designed for different lighting conditions (MONO/CCT/RGB/RGBW and RGB+CCT). So far it was necessary to decide whether the installation was to be multicolour or multicolour, so the solution is to use a wall panel with an LS2 receiver.
MONO - one colour
CCT - with a variable colour temperature
RGB - multicolour
RGB+W - multicoloured with extra white
RGB+CCT - multicolour with a variable colour temperature
Switching on or off the connected LED illumination
Enables and disables all zones simultaneously
Dimming and brightening of the connected LED lighting
Dimming and brightening of all zones simultaneously
Achieve monochromatic colour
Colour capability for individual/all zones
Colour temperature control for individual/all zones
Available dynamic programs to change the characteristics of the work
Change the speed of your dynamic programs
Temporarily switch off the light after 60 seconds
Eight zones to use
Primary power supply via two AAA batteries
Power supply via 230VAC (optional)
Radio range up to 30 meters
Elongation of the radio signal by signal retransmissions
The glass panel on the wall
The possibility of extension of the installation
Sound signalling
Gentle illumination of the touch zone of the enclosed zone
Construction suitable for surface mounting
24 months warranty
The type of communication that connects the transmitter to the receiver is via radio. The 2400-2483.5MHz signal allows for 30m wireless installation in open areas. With more devices, we can create LEDs based on unlimited coverage with signal re-transmission. The condition of this work is to place another receiver within 30 meters.
Number | For single colour/dual white installation | For RGB/RGBW installation | Speed change | Brightness change |
---|---|---|---|---|
1 | Smooth dimming/brightening of white colour | Smooth change between all colours | Yes | Yes |
2 | Jumping dimming/brightening of white colour | Smooth pulsation of white colour | Yes | Yes |
3 | A fast flash of white colour | Smooth change between RGB colours | Yes | Yes |
4 | Smooth pulsation of white colour with three flashes | Jumping change of seven colours | Yes | Yes |
5 | N/A | Jumping change of random colours | Yes | Yes |
6 | N/A | Smooth pulsation of red colour with three flashes | Yes | Yes |
7 | N/A | Smooth pulsation of green colour with three flashes | Yes | Yes |
8 | N/A | Smooth pulsation of blue colour with three flashes | Yes | Yes |
9 | N/A | Smooth pulsation of white colour with three flashes | Yes | Yes |
Remote construction - control has not been so easy
The glass touch panel in the Mi-Light series not only provides an aesthetically pleasing appearance due to the absence of protruding buttons but also a full touch screen with touchpads for different functions depending on the model of the device. In addition to the glass wall panel, I have good protection for all kinds of minor scratches, so you get high durability for a long period of time.
Some of the Mi-Light transmitters provide access to multiple zones fully controlled by one device. The use of such a method makes it easy to use the LED installation in a given room, allowing for future expansion of lighting at any time, when we do not need several zones in our installation, just another pairing of the connected receiver together with LED lighting with our device to the next zone. An interesting feature is an ability to program an unlimited number of receivers to a particular zone, in this case only the output parameters of the receiver.
LED wall panel, allows an alternative method to be powered. It is based on the use of an additional adapter, which allows it to bring a voltage of 230VAC, thus converting the voltage at the output of 3V, so that the wall panel has a constant voltage.
Application | For MONO/CCT/RGB/RGBW/RGB+CCT installations |
Output voltage | Depends on the receiver used |
Input voltage | Battery 2x 1.5V AAA or using adapter - 230VAC |
The number of zones/channels supported | 1-8 |
Modulation method | Radio |
Controlling method | 2400-2483.5MHz |
Controlling range | 30m |
Model number | B8 |
Modulation method | GFSK |
Glass panel | Yes |
Working temperature | -20 – 60℃ |
Type of installation | Surface (batteries) or flush (mains) |
Colour | White |
Ingress Protection | IP20 |
Dimensions[mm] | L146 x W106 x H20 |
Certification | RoHS, CE, UKCA |
Warranty | 2 years |
1 x Mi-Light 8-zone smart wall panel controller B8 in a retail box
2 x Plastic wall plugs
2 x Screws
1 x User Manual (English)
Data sheet
User manual for RGB+CCT LED 8-zone smart panel remote controller from Mi-Light brand.
