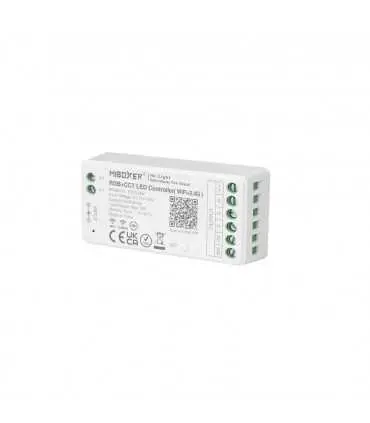

MiBoxer RGB+CCT LED controller (WiFi+2.4G) FUT039W works with TuyaSmart
The MiBoxer RGBCCT LED Controller WiFi 2.4G is the ultimate solution for your home or office lighting needs. This advanced controller is designed to give you complete control over your RGB+CCT LED strip lights, allowing you to customize the ambience of any room with ease.
With WiFi and 2.4G connectivity, this controller is easy to set up and use, giving you the flexibility to control your lights from anywhere using your smartphone or tablet. Whether you want to set the mood for a party, create a relaxing environment for movie night, or simply adjust the lighting to match your mood, the MiBoxer RGBCCT LED Controller WiFi 2.4G has you covered.
The controller offers a full range of colour options, including RGB colours and pure white CCT, allowing you to create a wide range of colour temperatures to suit your needs. You can also adjust the brightness level of your lights to create the perfect ambience for any occasion.
In addition to its advanced features, the MiBoxer RGBCCT LED Controller WiFi 2.4G is also designed with safety in mind. The controller includes overcurrent protection, overvoltage protection, and short-circuit protection to ensure that your LED strip lights remain safe and secure at all times.
Overall, if you're looking for an easy-to-use, reliable, and advanced LED controller that gives you complete control over your lighting, the MiBoxer RGBCCT LED Controller WiFi 2.4G is a perfect choice.
Benefits:
Supports RGB+CCT tapes
Built-in Wi-Fi module to control applications such as Google Assistant or Amazon Alexa
It can be combined with other controllers
Maximum output current 12A,
Small sizes,
CE, RoHS, UKCA certificates,
2-YEAR manufacturer's warranty,
Compatible remotes
MiBoxer RGB+CCT LED controller (WiFi+2.4G) FUT039W specification
Application |
For RGB+CCT (multi-colour) installations |
Maximum output current |
12A |
Input/Output Voltage |
12V DC or 24V DC |
Number of outputs |
5 channels (R/G/B/WW/CW/V+) |
Controlling method |
Radio, Wi-Fi, Bluetooth |
Controlling range |
up to 30 meters in an open area |
Model number |
FUT039W |
Control frequency |
2.4GHz |
Bluetooth Protocol |
Bluetooth 4.2 (low power consumption) |
WiFi Standard |
IEEE 802.11b/g/n 2.4GHz |
Working temperature |
-20 – 60℃ |
Compatible devices |
please see the compatible MiBoxer products tab |
Return to previous settings after powering off |
Yes |
Input connector (power supply) |
Screw terminals for bare wires and DC socket |
Output connector (signal) |
Screw terminals for bare wires |
Dimensions[mm] |
L74.5 x W36 x H17 |
Certification |
RoHS, CE, UKCA |
Warranty |
2 years |
MiBoxer RGB+CCT LED controller (WiFi+2.4G) FUT039W package includes
1 x RGB+CCT (multi-colour) LED strip controller
1 x User manual (English)
