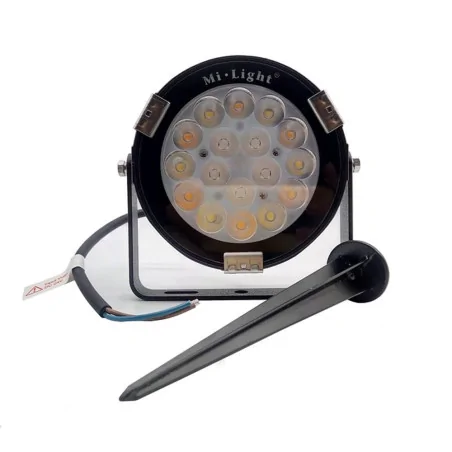

Mi-Light 9W RGB+CCT LED garden light FUTC01

Product Name: 9W RGB+CCT LED Garden Lamp

Model No.: FUTC01

Power: 9W

Input Voltage: DC 24V

Colour Temperature: 2700K~6500K

Luminous Flux: 700LM

Light Efficiency: 80LM/W

CRI: >80

Lifespan: 50000 hours

Beam Angle: 15°

Illumination distance:  >10m

IP Rate: IP65

Material: Aluminum

Read moreShow less
£35.17 (VAT incl.)
Delivery within 2-4 weeks
Available for backorder
Condition
New product
Reference:
P0448
Brand:
Love0
Add to wishlist
Description

24V 9W RGB+CCT LED garden light FUTC01

Mi-Light 9W RGB+CCT LED garden light FUTC01 product size technical picture dimensions

Garden fixture RGB+CCT 9W IP65 - 24VDC - Mi-Light is a garden lamp used for lighting various types of arrangements i.e. lighting of gardens, parks or elevations of buildings. It was designed for installation in soft ground, ie soil, sand or gravel. The garden luminaire has high-quality LED diodes, allowing you to obtain a full range of colours with any colour temperature using the RGB+CCT wireless controller. The narrow-angle of light provides a precise direction of light on a given object while maintaining a long stream of light of 700lm. Works with Mi-Light series controllers.

 Mi-Light 9W RGB+CCT LED garden light FUTC01 features outdoor multicolour remote controlled lamp

The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.

 Mi-Light 9W RGB+CCT LED garden light FUTC01 smart life style beauty 2.4GHz 16 million colours

Features of garden LED RGB+CCT - Mi-Light FUTC01

The casing is made of high-quality aluminium

Obtaining any RGB colour

Obtaining any CCT colour temperature

Radio communication range of 30 meters

Alternative control via Wi-Fi

Retransmission of the received radio signal

Automatic synchronization between devices

The mounting bracket that allows installation to the ground

Airtight housing IP65

Narrow and angle of illumination and a long stream of light

A diffuser ensuring no glare effect

 Mi-Light 9W RGB+CCT LED garden light FUTC01 part of application outdoor lamp car park square multicolour

The connectivity of garden luminaires from the Mi-Light series is characterized by wireless communication via radio with a remote control device or a wall panel. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. When using more devices (fixtures), we can create LED installations based on unlimited range, thanks to the technology of signal retransmission. This signal will be automatically synchronized. The condition of such work is to place another receiving device within 30 meters. Products cooperating with the FUTC01 garden luminaire, you will find in the compatible MiBoxer products tab.

 Mi-Light 9W RGB+CCT LED garden light FUTC01 auto-transmitting diagram auto synchronization remote

Wi-Fi control is possible

In order to gain access to the control via Wi-Fi, you must purchase the appropriate module.

 Mi-Light 9W RGB+CCT LED garden light FUTC01 installation diagram grass land ground

Mi-Light 9W RGB+CCT LED garden light FUTC01 compatible remote controllers

Narrow viewing angle - precise illumination

 Mi-Light 9W RGB+CCT LED garden light FUTC01 symetrical and centralized light ray

A small angle of light at 15 degrees, provides a long luminous flux. Such focused light has a large range, which oscillates at the edge of 10 meters and a strong luminous flux because the light is not unnecessarily distracting. This construction of a garden fixture allows creating interesting light illuminations.

Full control - cooperation with transmitting devices

 Mi-Light 9W RGB+CCT LED garden light FUTC01 full control remote and app smartphone control

Wireless radio route through which devices communicate provides a full range of possibilities related to control. Depending on the product, the control can be carried out with the help of many available radio remote controls operating on the 2.4 GHz frequency. This basic form of communication provides stable control of LED lighting within 30 meters in an open area. In addition, most products can be expanded with an alternative form of control, through the use of a Wi-Fi module, which allows you to connect our mobile application with a compatible device series Mi-Light. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.

Fast and convenient assembly - Dogrunt handle

 Mi-Light 9W RGB+CCT LED garden light FUTC01 anti-corrosion inserted pole

Convenient handle construction ensures fast and stable assembly by driving it into soft ground. The holder itself is attached to the fitting with one mounting screw. The handle is made of high-quality aluminium, which means that it is not exposed to corrosion in such conditions.

High hermeticity - ideal for external applications

 Mi-Light 9W RGB+CCT LED garden light FUTC01 waterproof and dustproof IP65

The external decorative arrangement of objects using garden luminaires from the Mi-Light series is possible by using a hermetic enclosure of the device. The structure of the device constructed in this way allows working in difficult weather conditions, which do not expose the device to permanent damage. The degree of hermeticity in Mi-Light garden luminaires is achieved at the IP65 level.

Mi-Light 9W RGB+CCT LED garden light FUTC01 body

Mi-Light 9W RGB+CCT LED garden light FUTC01 power cable nut

Mi-Light 9W RGB+CCT LED garden light FUTC01 optical lens

Mi-Light 9W RGB+CCT LED garden light FUTC01 high efficiency LED chips

Mi-Light 9W RGB+CCT LED garden light FUTC01 constant current and voltage driver

Mi-Light 9W RGB+CCT LED garden light FUTC01 specification

Rated voltage 24VDC
Rated power 9W
Rated luminous flux 700lm
The colour temperature of the light 2700-6500K
Colour Rendering Index CRI>80
The nominal glow angle 15°
Length of luminous flux > 10m
Dimmable Yes
The possibility of obtaining a colour Yes
Lamp power factor >0.5
Controlling Radio (wirelessly)
Alternative control Via Wi-Fi (see the compatible MiBoxer products tab)
Cooperating devices See the compatible MiBoxer products tab
Source of light SMD diodes
Housing Aluminium
Dimensions of the binding 135mm (85mm) x 35mm x 136mm (total height, handle height, length, width)
Dimensions of the mounting bracket Ø35mm, 161.5mm (diameter, height)
Lifespan 50000 hours
Declarations / Certificates CE, RoHS
Warranty 24 months

Mi-Light 9W RGB+CCT LED garden light FUTC01 packaging retail and wholesale box

Mi-Light 9W RGB+CCT LED garden light FUTC01 package includes

1 x Garden light in a retail packaging

1 x Mounting bracket

1 x Screw

1 x Manuals

Read moreShow less
Product Details
P0448

Data sheet

Rated Power
9W
Light Colour
RGB+CCT
Rated Voltage
24V
Luminous Flux
700lm
CRI
Ra≥80
Beam Angle
15°
Power Factor
≥0.90
Features
Dimmable
Lifespan
50,000h
Ingress Protection
IP66
Model Number
FUTC01
Warranty
2 years
Communication Range
30m
Communication Method
Radio
Pack Quantity
1
Packaging
Original retail colour packaging
Instructions
English
Country/Region Of Manufacture
China
Type Of Material
Aluminium
Colour
Black
Control Frequency
2.4GHz
Current Type
DC
Power Source
DC 24V LED Driver
Connected Home Compatibility
Amazon Alexa (requires WL-Box1)
Connected Home Protocol
Wi-Fi
Colour Changing
Yes
Class
Floodlight, Security Light
Colour Temperature
2700K~6500K
Energy Efficiency Rating
A+
Unit Type
Unit
Installation Area
Indoor & Outdoor
Control Style
Remote Control
Item Length
116mm
Item Width
116mm
Item Weight
0.485kg
Item Height
50.2mm
Wholesale Box Quantity
36
Attachments
FUTC01/FUTC02 - User manual
User manual for RGB+CCT smart LED garden lights from Mi-Light brand.
Download (3.79M)
MiBoxer - Garden Lights
FUTC01, FUTC02, FUTC03, FUTC05, FUTC09 - user manual
Download (1.08M)
