Product Name: 6W RGB+CCT Smart LED Garden Lamp
Model No.: FUTC04
Power: 6W
Voltage: AC100~240V 50/60Hz
Kelvin: 2700~6500K
Luminous Flux: 550LM
Luminous Efficiency: 90LM/W
CRI: >75
PF: >0.5
Lifespan: 50000 hours
Beam Angle: 25°
Illumination distance: >10m
IP Rate: IP66
• 2.4GHz remote controllable
• 16 Million colours to choose
• Brightness and colour temperature adjustable
• IP66 waterproof

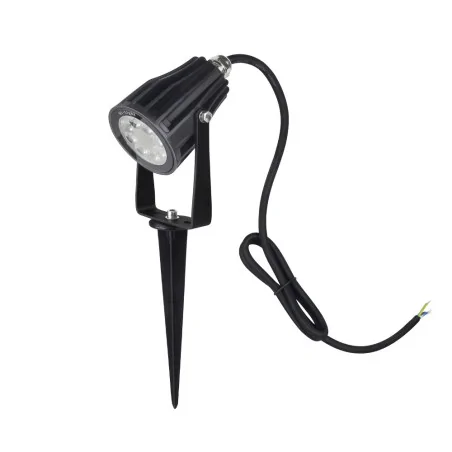

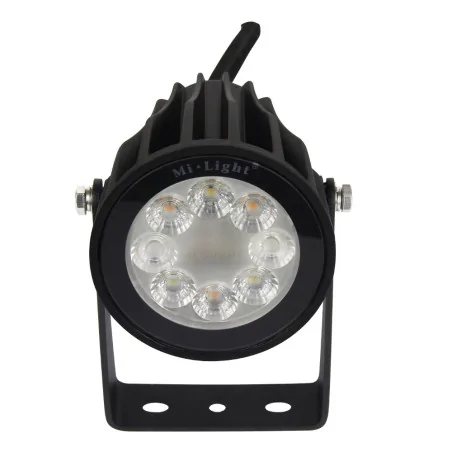

Smart LED garden lamp FUTC04
This little garden smart RGB+CCT spotlight is another product of Mi-Light brand which extends the Mi-Light Outdoor Light range. With its great functionality, you can create a fabulous atmosphere view in your garden. The Mi-Light Outdoor Light range includes FUTC04 (6W), FUTC03 (15W), FUTC02 (10W), FUTC01 (10W) and FUTC05 (25W) smart LED outdoor spotlights to light up the plants and building in your garden. This 6W smart LED outdoor spotlight is professionally designed to work in hard weather conditions. With its IP66 (Ingress Protection) this product is perfectly suited for outdoor installation. The spotlight is designed to work with the mains voltage worldwide as its compatible voltage range is 100~240VAC. The installation is very easy, just simply connect the spotlight power wires to the mains power. We recommend using our LED line® hermetic cable connector for electrical wires IP68 which is designed to safely connect the 3-core cables outdoor.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
Features of Mi-Light smart LED garden lamp FUTC04:
The casing is made of high-quality aluminium
Obtaining any RGB colour
Obtaining any CCT colour temperature
Radio communication range of 30 meters
Alternative control via Wi-Fi
Retransmission of the received radio signal
Automatic synchronisation between devices
The mounting bracket that allows installation to the ground
Airtight housing IP66
Narrow and angle of illumination and a long stream of light
A diffuser ensuring no glare effect
The FUTC04 luminaire comes with high-quality LED chips, allowing you to obtain a full range of colours with any colour temperature in the range of 2700K to 6500K using the RGB+CCT wireless remote control or a smartphone app. The 25° narrow-angle of light provides a precise direction of light on a given object while maintaining a long stream of light of 550lm.
The connectivity of garden luminaires from the Mi-Light series is characterised by wireless communication realised via radio with a remote control device or a wall panel. The range of such a connection is 30 meters in an open area, provided that it is not exposed to various types of interference. When using more devices (fixtures), we can create LED installations based on unlimited range, thanks to the technology of signal retransmission. This signal will be automatically synchronised. The condition of such work is to place another receiving device within 30 meters. Products cooperating with the FUTC04 garden luminaire, you will find in the compatible MiBoxer products tab.
Application of the garden light
This Mi-Light garden lamp can be used for lighting various types of arrangements i.e. lighting of gardens, parks or elevations of buildings. The FUTC04 garden LED spotlight was designed for installation in soft ground, ie soil, sand or gravel and it comes with the anticorrosive inserted pole.
Wi-Fi control is possible
In order to gain access to the control via Wi-Fi, you must purchase the appropriate module.Narrow viewing angle - precise illumination
A small angle of light at 25 degrees, provides a long luminous flux. Such focused light has a large range, which oscillates at the edge of 10 meters and a strong luminous flux because the light is not unnecessarily distracting. This construction of a garden fixture allows the creation of interesting light illuminations.
Full control - cooperation with transmitting devices
Wireless radio route through which devices communicate provides a full range of possibilities related to control. Depending on the product, the control can be carried out with the help of many available radio remote controls operating on the 2.4 GHz frequency. This basic form of communication provides stable control of LED lighting within 30 meters in an open area. In addition, most products can be expanded with an alternative form of control, through the use of the Wi-Fi module, which allows you to connect our mobile application with a compatible device series Mi-Light. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.
Fast and convenient assembly - Doughnut handle
Convenient handle construction ensures fast and stable assembly by driving it into soft ground. The holder itself is attached to the fitting with one mounting screw. The handle is made of high-quality aluminium, which means that it is not exposed to corrosion in such conditions.
High hermeticity - ideal for external applications
The external decorative arrangement of objects using garden luminaires from the Mi-Light series is possible by using a hermetic enclosure of the device. The structure of the device constructed in this way allows working in difficult weather conditions, which do not expose the device to permanent damage. The degree of hermeticity in Mi-Light garden luminaires is achieved at the IP66 level.
Compatible remotes
Specification of garden lamp FUTC04 smart LED
Rated voltage | 100 ~ 240VAC / 50 ~ 60Hz |
Rated power | 6W |
Rated luminous flux | 550lm |
The colour temperature of the light | 2700-6500K |
Colour Rendering Index | CRI>75 |
The nominal glow angle | 25° |
Length of luminous flux | > 10m |
Dimmable | Yes |
The possibility of obtaining a colour | Yes |
Lamp power factor | >0.5 |
Controlling | Radio (wirelessly), for Wi-Fi control, WL-Box1 is required |
Alternative control | Via Wi-Fi |
Cooperating devices | please see the compatible MiBoxer products tab |
Source of light | SMD diodes |
Housing | Aluminium |
Dimensions of the binding | 110mm (84mm) x 110mm x 75mm (total height, handle height, length, width) |
Dimensions of the mounting bracket | Ø35mm, 161.5mm (diameter, height) |
Lifespan | 50000 hours |
Declarations/Certificates | CE, RoHS, UKCA |
Warranty | 24 months |
Mi-Light 6W RGB+CCT smart LED garden lamp FUTC04 package includes:
1 x Garden light in a retail packaging
1 x Anticorrosion inserted pole
1 x Screw
1 x Manuals
Data sheet
- Rated Power
- 6W
- Light Colour
- RGB+CCT
- Rated Voltage
- 230V
- Luminous Flux
- 550lm
- CRI
- Ra≥80
- Beam Angle
- 25°
- Power Factor
- ≥0.90
- Features
- Dimmable
- Lifespan
- 50,000h
- Ingress Protection
- IP65
- Model Number
- FUTC04
- Certification
- CE
RoHS
UKCA
- Warranty
- 2 years
- Light Source
- LED
- Communication Range
- 30m
- Communication Method
- Radio
- Operating Temperature
- -20-45°C
- Pack Quantity
- 1
- Packaging
- Original retail colour packaging
- Instructions
- English
- Country/Region Of Manufacture
- China
- Type Of Material
- Aluminium
- Colour
- Black
- Control Frequency
- 2.4GHz
- Current Type
- AC
- Power Source
- Hardwired mains
- Connected Home Compatibility
- Amazon Alexa (requires WL-Box1)
- Connected Home Protocol
- Wi-Fi
- Colour Changing
- Yes
- Class
- Floodlight, Security Light
- Colour Temperature
- 2700K~6500K
- Energy Efficiency Rating (A-G)
- F
- Unit Type
- Unit
- Installation Area
- Indoor & Outdoor
- Control Style
- Remote Control
- Bulb Wattage
- 6W
- Item Length
- 60mm
- Item Width
- 60mm
- Item Weight
- 0.267kg
- Item Height
- 108mm
- Wholesale Box Quantity
- 40
