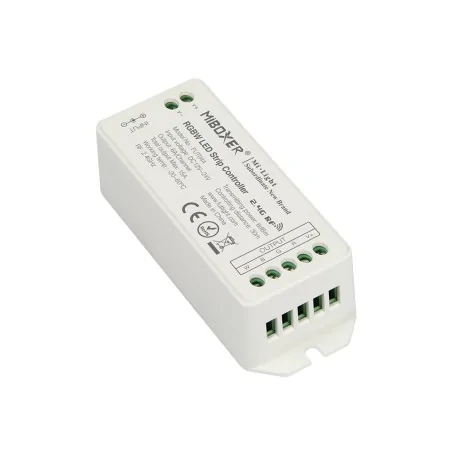

Product Name: RGBW LED Strip Controller
Model No.: FUT044
Working Voltage: DC12V~24V
Output Max: 6A/Channel
Total Output Max: 15A
Working Temperature: -20~60℃
Max Controlling Distance: 30m
Output Connection: Common Anode
Size: 37*28*97mm
• Total output max 15A
• 2.4G RF Remote controllable
• 16 Million colours to choose
• Brightness and saturation controllable
• Control distance: 30m
Radio LED receiver 15A - 12-24V DC - Mi-Light - RGB+W (RGBW), it is a small device used to control multi-coloured LED lighting with additional white colour. The RGBW LED strip controller has been designed to change the colour and intensity of brightness for white, by using a suitable driver. The communication of such a device is carried out via a radio route, it is through this receiver that it communicates with the transmitting device. The receiver cooperates with devices of the Mi-light series.
The remote control or wall panel needs to be purchased separately. For compatible products please see the compatible MiBoxer products tab.
RGB+W multi-coloured with additional white colour
Application for RGB+W tapes (multi-coloured with additional white colour)
Wireless communication with the control device
The possibility of obtaining any colour
Obtaining control of brightness intensity
Cooperation with Wi-Fi network (additional option)
The range of I/O voltage in the range 12-24V DC
Application of several receivers to one zone
Maximum current carrying capacity 15A
Small sizes
The form of communication that connects the transmitter with the receiver is via a radio route. The signal based on 2.4GHz frequency allows for wireless installation at a level of 30 meters in open terrain. When using more devices (receivers), we can create LED installations based on unlimited range, thanks to the technology of signal retransmission. The condition of such work is to place another receiving device within 30 meters. The products cooperating with the FUT044 receiver can be found in the compatible MiBoxer products tab.
Receiving devices are supplied with DC voltage of 12VDC or 24VDC, which must be supplied to the input of the device. In order to facilitate assembly, the construction of receivers consists of screw terminals, both at the entrance and at the exit, which makes it easier to bring the wires to the device. In addition, if you have a power supply that has a DC plug at the output, you can directly plug into the DC jack located next to the input terminals of the receiver. The cable connection is stable and quick to assemble.
Wireless radio route through which devices communicate provides a full range of possibilities related to control. Depending on the product, the control can be carried out with the help of many available radio remote controls operating on the 2.4GHz frequency. This basic form of communication provides stable control of LED lighting within 30 meters in an open area. In addition, most products can be expanded with an alternative form of control, through the use of a Wi-Fi module, which allows you to connect our mobile application with a compatible device series Mi-Light. The transmitting devices cooperating with a given device can be seen above in the compatible MiBoxer products tab.
The radio receiver was created in a way allowing to increase the maximum load capacity of the outputs. This means that in relation to previous Mi-Light series receivers, connecting more LED strips. In total, we can charge such a device with a current of 15A.
When there are more receivers in the installation controlled by one transmitting device, the installation synchronizes together during operation, without causing any delays during the operation of the devices. Increasing the radio signal in the installation is possible by using several receivers. These devices are characterized by the transmission of the received signal to the next device, thus increasing the control range of the LED installation (The distance between the receivers cannot be greater than 30m).
| Application | For multi-colour installations with white RGB+W colour |
| The input/output voltage of the receiver | 12VDC or 24V DC |
| The maximum output current of the receiver | 15A |
| Number of receiver outputs | 4 outputs (R/G/B/W) - common anode |
| Communication way | Radio |
| Frequency of the radio signal | 2.4GHz |
| The range of radio communication | Up to 30 meters in open terrain (possibility of signal extension due to signal retransmission) |
| Output signal | PWM |
| Additional controls | Wi-Fi module (see the compatible MiBoxer products tab) |
| Cooperation with transmitters | See the compatible MiBoxer products tab |
| Return to previous settings after turning off the power | No |
| Working temperature | -20-60 ° C |
| Input connector (power supply) | Screw clamps for wires and DC socket |
| Output (signal) connector | Screw clamps for wires |
| Dimensions of the receiver | 97mm * 37mm * 28mm |
| Declarations | RoHS, CE, UKCA |
| Warranty | 24 months |
1 x RGBW receiver in a retail box
1 x Manuals
